Everstar In-line GbE PoE+ Surge Protector

(0)No Reviews yet
  • SKU: ESWA-3310C6-G2
  • Manufacturer:
  • Data Sheet: Download

Product Information

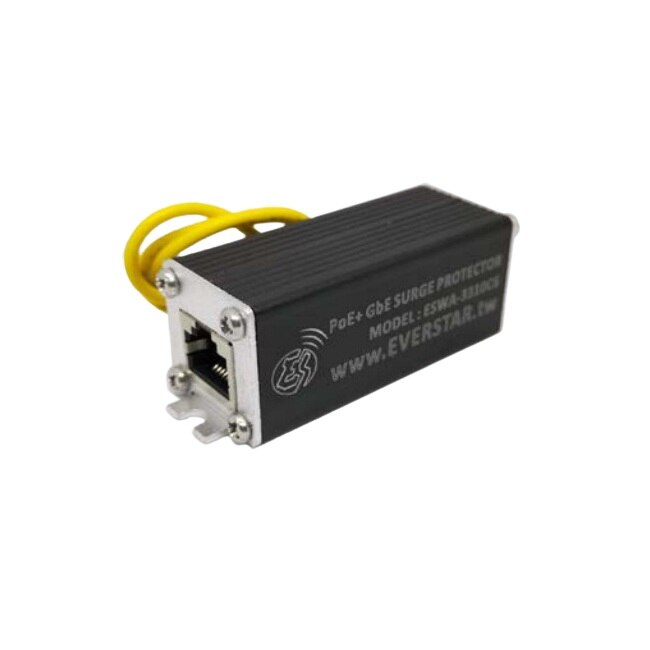

Everstar ESWA-3310C6-G2

In-line GbE PoE+ Surge Protector

The ground lead of ESWA-3310C6-G2 must be grounded to connect to a grounding block or structure.


  • 100/1000 Mbps
  • PoE+ 15V/24V/30V/48V/50V/56V mode A & B
  • Supports normal and reverse PoE power polarity
  • Powerful surge protection by UL listed Gas Discharge Tube GDT
  • Line-ground and line-line protection mode
  • Nominal PoE voltage <60V
  • Extremely low capacitance
  • 12-inch heavy gauge grounding lead connects to designated grounding lugs on protected equipment
  • Surge protection works in both directions (line/protected equipment), the source input signal cable can be connected to any side.
  • Shielded and grounded RJ-45 Jacks for the input of line and protected equipment
  • Any polarity on any pair - total flexibility
  • Cast aluminum construction with mounting flange
  • RoHS, REACH compliance


Specifications ESWA-3310C6-G2

Clamping Voltage (Pin1-2,3-6,4-5,7-8)Line-Line: 72 Volts Line-Ground: 72 Volts
Maximum Surge Current (8/20μs) per IEC 61000-4-520 KA
Nominal PoE Voltage<60 V
PoE Mode SupportMode A and B for Power
Impedance100 ohms
Protection ModesLine-Line, Line-Ground
Standard ConnectorsShielded RJ-45 Jacks * 2
Case MaterialAluminum
Case ColorBlack/Silver tone
Ground wire12 inches
Operating Temperature-40°C (-40°F) to +80°C (+176°F)
Operating Humidify0 ~ 95% non-condensing
Outside Dimensions(W*L*H) 26*26*70 mm
Weight60 g
