  • Everstar ESWA-3310C6x 100/1000 Mbps In-Line GbE ESD&PoE+ Surge Protector

Everstar ESWA-3310C6x 100/1000 Mbps In-Line GbE ESD&PoE+ Surge Protector

(0) No Reviews yet
  • SKU: ESWA-3310C6x
  • Manufacturer: ISP Supplies
  • Availability: 23 In Stock (updated live)
$31.00

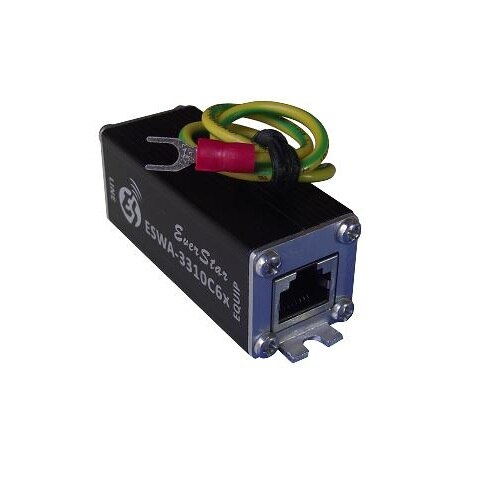

Everstar ESWA-3310C6x

100/1000 Mbps In-Line GbE ESD&PoE+ Surge Protector

Gas Discharge Tube (GDT) and bi-directional Transient Voltage Suppressing (TVS) technology, multi-stage and hybrid design provides the fast turn-on and low clamping voltage protection.


Provides transient protection for the protected differential line pair:

  • IEEE 802.3 af/at (transmission), mode A and B
  • IEC 61000-4-2 (ESD) ±30KA(contact/air)
  • IEC 61000-4-4 (ETF) 60A(5/50ns)
  • IEC 61000-4-5 (Lightning/Surge) 10 KA(8/20μs)
  • Cable Discharge Event (CDE)

Features:

  • 2.8 v data clamping voltage
  • PoE input voltage Vmax up to 60V
  • Fast response time (<3ns)
  • Extremely low capacitance (<3pf)
  • Shielded RJ-45 Jacks for the line and protected equipment
  • Any polarity on any pair - total flexibility
  • Cast aluminum construction with mounting flange
  • Tested standard IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC/EN 61643-21
  • RoHS compliant
