  • Harger 1/4" x 4" x 6" J-Hole Pattern Ground Bar w/ Tail

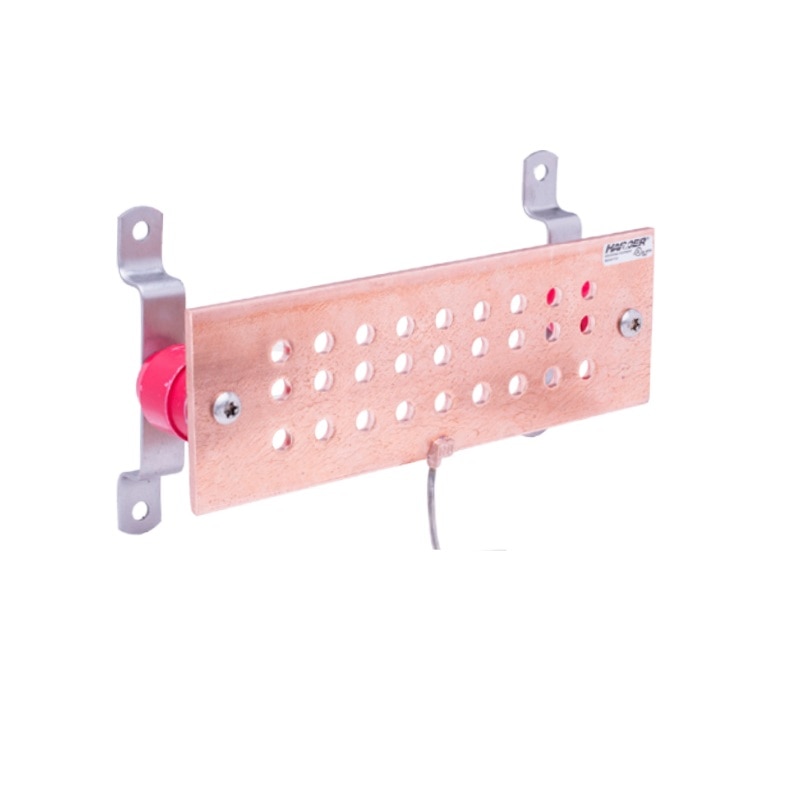

Harger 1/4" x 4" x 6" J-Hole Pattern Ground Bar w/ Tail

  • SKU: GBIT1446J2T
  • Manufacturer: Harger
  • Data Sheet: Download
  • Drawing Sheet: Download
  • Availability: 20 In Stock    (updated live)
US$‎238.55

Specifications GBIT1446J2T

Bar Size1/4" x 4" x 6"
No. of Holes9
Approx. Each Wt. (lbs.) 11
Conductor2T
StandardcULus Listed 467
Electro Tin PlatedNo
Hole PatternJ
MaterialCopper

Harger GBIT1446J2T

1/4x4x6 Ground Bar with Brackets, Insualtors and Tail (GBIT) with "J" Hole Pattern

Technical Notes: cULus Listed 467

Harger's Ground Bar is a great way to secure your electrical equipment from bad weather! Connect all your grounding wires and cables using the ground bar to deter high voltage electric shocks. The bar already comes with 25-feet of number-2 wire welded to the bottom center. This ground bar from Harger has 9 pre-drilled holes in a J-pattern for easy installation. The J-pattern has 3 equal rows of 7/16" holes with 1" horizontal spacing.


Features:

  • This ground bar is a great way to protect your electrical grounding supplies from stormy weather!
  • 9 pre-drilled holes in a J-Pattern makes installation quick and easy
  • Includes 25' of number-2 wire welded to the bottom center
  • Bar Dimensions: 6" x 0.25" x 4"
