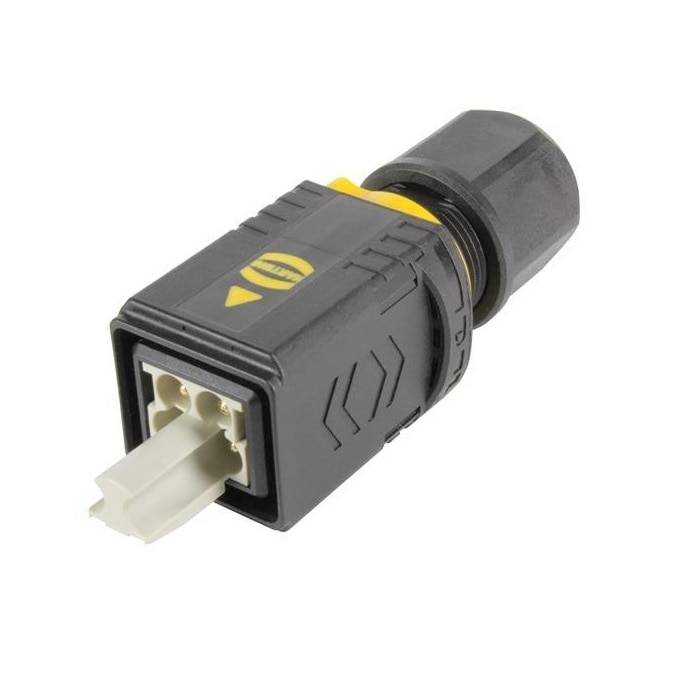

Harting Heavy Duty Power Connectors PP V4 2 Power 4 Hood Plastic Ml Insert Crimp
- SKU: 09461454421
$17.00
- Manufacturer: Harting
- Data Sheet: Download
Product Information
Harting 09461454421
Heavy Duty Power Connectors PP V4 2 Power 4 Hood Plastic Ml Insert Crimp
Specifications
Specifications 09461454421
| Identification | Power |
| Element | Connector sets |
| Version | |
| Termination method | Crimp termination |
| Shielding | Unshielded |
| Number of contacts | 4 |
| Locking type | PushPull |
| Pack contents | Without contacts |
| Technical | |
| Conductor cross-section | 0.75 ... 2.5 mm² Stranded |
| Conductor cross-section | AWG 20 ... AWG 12 Stranded |
| Rated current | 12 A |
| Rated voltage | 48 V |
| Rated impulse voltage | 1.5 kV |
| Pollution degree | 3 |
| Tightening torque | 1.3 ... 1.5 Nm |
| Limiting temperature | -40 ... +70 °C |
| Mating cycles | ≥750 |
| Degree of protection acc. to IEC 60529 | IP65 IP67 |
| Cable diameter | 4.5 ... 10 mm |
| Vibration resistance | 10-500 Hz, 5 g, 0.35 mm, 2h/axis 5.72 m/s² acc. to IEC 61373 Category 1 Class B |
| Shock resistance | 25 g / 11 ms, 3 shocks / axis and direction 5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B |
| Weight | 1 gram (0.002 lbs) |
| Material | |
| Material (hood/housing) | Thermoplastic |
| Colour (hood/housing) | Black |
| Material flammability class acc. to UL 94 | V-0 |
| RoHS | compliant |
| ELV status | compliant |
| China RoHS | e |
| REACH Annex XVII substances | No |
| REACH ANNEX XIV substances | No |
| REACH SVHC substances | No |
| California Proposition 65 substances | Yes |
| California Proposition 65 substances | Naphthalene |
| Specifications and approvals | |
| Specifications | IEC 61076-3-106 Variant 4 (V4) EN 45545-2 R26: HL1, HL2, HL3 |
| Approvals | DNV GL |
| UL / CSA | UL 1977 ECBT2.E102079 CSA-C22.2 No. 182.3 ECBT8.E102079 |
