Product Information

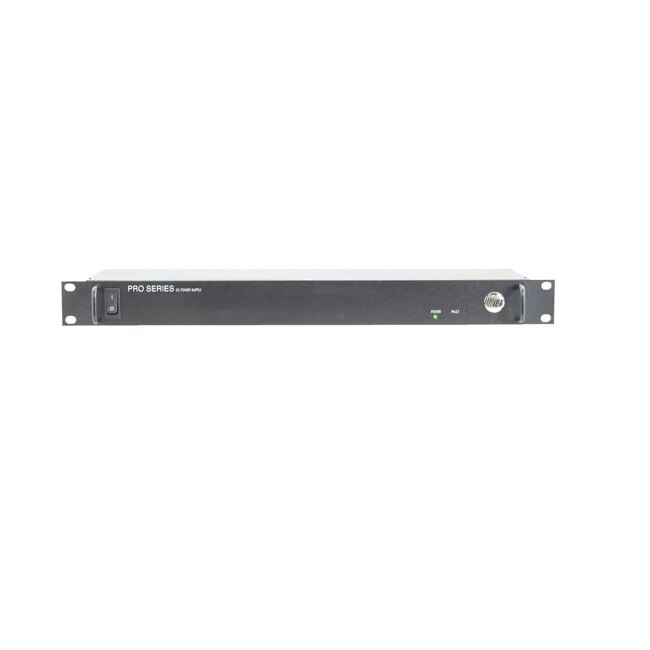

ICT ICT1190-48SB
55.2VDC 25Amps 1 RU DC Power Supply, w/ Battery Backup/LVD
The Pro Series line of DC power supplies is a high performance, cost effective, high efficiency 1RU DC power supply designed for a variety of mission-critical applications. The core of the Pro Series is derived from the state-of-the-art ICT Digital Series power supply design that delivers high efficiency, power factor corrected AC input, space-saving 1RU chassis, FCC Class B low noise rating, and an optional battery backup terminal with integrated low voltage disconnect.
ICT Pro Series DC power supplies are available in two power levels, providing 690 or 1200 watts of power with 12, 24 or 48VDC output. They provide an ideal DC power solution for wireless communications professionals who demand cost effective, high efficiency space-saving DC power systems for LMR, broadband, and network communications equipment including radios, repeaters, trunking systems, paging systems, RF amplifiers, microwave, WiMax, routers, bridges, multiplexers, and VOIP. The Pro Series is also ideal for industrial power applications such as security systems, transportation, process control, and DC in-building power.
Features:
- 690 or 1200 watts of output power in a 1RU rack mount chassis.
- 90 to 93% efficiency over a broad power range (230VAC input).
- Wide-ranging power factor corrected AC input saves energy.
- Form C alarm and remote shutdown contacts.
- Optional battery backup with integrated low voltage disconnect for charging and protecting batteries.
The ICT Pro Series is designed, manufactured and supported in North America to provide the most reliable, cost effective, high efficiency 1RU DC power supply available today for wireless communications, broadband and other demanding DC power applications.
Specifications
Specifications ICT1190-48SB
| Input Voltage Range | 100-265 VAC |
| Input Frequency Range | 50-60 Hz |
| Output Voltage | 55.2 VDC |
| Output Current (Continuous) | 22 Amps |
| Output Current (Peak) | 26.3 Amps |
| Line Regulation | 0.10% |
| Load Regulation | 0.50% |
| Output Ripple (Max) | 40 mV RMS |
| Overvoltage Protection | 66 V |
| Efficiency (Typical) | 93 % at 240 VAC |
| Power Factor (Typical) | 0.99 |
| LVD Disconnect Voltage | 46 VDC |
| LVD Reconnect Voltage | 50 VDC |
| Fuse | 15 Amp |
| Operating Temperature | -30° C to 60° C |
| Dimensions | |
| Length | 6.4" |
| Width | 19" |
| Height | 1.72" |
| Weight | 7.4 lbs |
| Connectors | |
| AC Input | IEC C14 Connector |
| DC Output | Bus Burs with 5/16" bolts |
| Form C Alarm | Terminal Block (#16 to #24 AWG) |
| Remote Shutdown | 2.5 to 16 volt signal |
