ICT Intelligent DC Distribution Panel for 12 or 24VDC With Remote Power Control , SNMP, site monitoring

  • SKU: ICT180SE-12IRC
  • Manufacturer: ICT
  • Data Sheet: Download
  • Availability: Open chat or call us for stock statusEmail me when this product is in stock!
US$‎980.00

ICT ICT180SE-12IRC

Distribution Series 2 Enhanced Intelligent DC Distribution Panel for 12 or 24VDC with Remote Power Control, SNMP, site monitoring

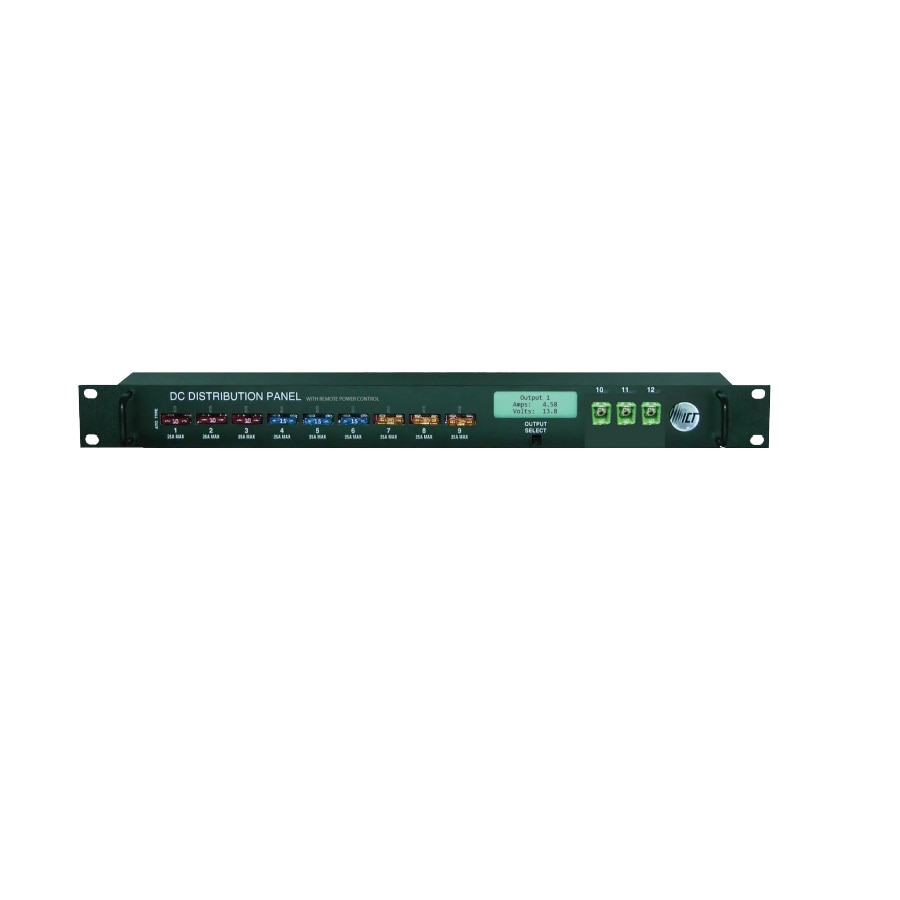

The redesigned ICT180SE-12IRC load distribution panel allows DC power to be distributed to nine ATO fuse-protected output channels and three J-Case high current outputs. An operating voltage range of 10 to 30 volts DC makes this panel ideal for 12 and 24 volt DC applications. ICT's industry-leading TCP/IP Ethernet management software and easy to use graphical user interface are included. Remote power control of individual outputs allows for manual or automatic load shutdown, load shedding, or power cycling over Ethernet.

The redesigned ICT180SE-12IRC Intelligent load distribution panel features a built-in Ethernet controller and web server, allowing users to remotely monitor and control loads connected to the panel.

A new microprocessor allows for improved network security and functionality, including TLS1.2, full SNMP control via new MIB files, session log-out, and enhanced Network Watchdog performance.

Remote Power Control allows individual DC outputs to be managed remotely using the Ethernet connection. This allows connected devices to be turned on and off or power-cycled, potentially averting the need for an on-site service visit.

System voltage and current, and current readings of each output, can be monitored. This can provide an indication of a problem with the system power, or with individual connected loads such as radios, switches, or access points. Text or email alerts can be sent when an alarm is triggered.

The Network Watchdog feature pings designated I.P. addresses and will restart an assigned output automatically, allowing devices such as routers to be power-cycled to avoid losing communications to the site. Load shedding is provided with user definable settings for each output, allowing non-essential loads to be automatically shut down in order to conserve battery power for priority loads.



Features:

  • 180A peak, 150A continuous system rating
  • 9 ATO GMT fused outputs (25A max.each) and 3 J-Case outputs (40A max.each)
  • Remote Power Control for remote shutdown or power-cycling of individual outputs
  • HTTPS, TLS1.2, SNMPv1/v2c/v3
  • Up to 30 days of data logging

Specifications ICT180SE-12IRC

Form Factor1RU - 19 Inch rack mount with handles
Dimensions (L x W x H)9.29 x 19.0 x 1.72 in. / 236 x 483 x 44 mm
Weight (lbs/kg)7.0 lbs / 3.2 kg
Fuse PositionFront panel
LED Alarm IndicatorsFront panel
LCD Digital DisplayFront panel
Power ConnectorsDC input stud connectors, DC output terminal blocks, Form C alarm contacts, grounding stud, RJ-45 Ethernet
Site MonitoringFive external dry alarm contacts. Monitors external contact closure, configurable for NO or NC logic, applied voltage 3.3V, 0.4mA for contact closure detection
Operating Temperature Range-30C to +60C
CoolingConvection (fanless)
EthernetTCP/IP built-in web server and graphical user interface, 10/100BASE-T, IEEE 802.3 compatible
Supported ProtocolsIPv4, HTTP, HTTPS, SMTP, DNS, TCP, UDP, ICMP, DHCP, ARP, SNMP v1/v2c/v3
SNMP PortsUDP Port 161, SNMP Traps: UDP Port 162
Firmware UpgradesUpgradeable over Ethernet
SecurityPassword protected, HTTPS, TLS1.2, session log-out
12 Channel Output MonitoringCurrent draw measured and reported for each output, definable under and over current alarms
Email and SMS AlertsMultiple email or text accounts, adjustable intervals
Data LoggingUp to 30 days at 1 minute sampling rate, csv file download, major event logging
Network WatchdogAutonomously ping up to 12 I.P. addresses and power-cycle output if no response
Remote AlarmsForm C alarm contacts (C/NO/NC)
Remote Power ControlEach DC output on/off selectable
Auto Restore ModeWill return to previous output settings after a power loss
Power-up Delay SequencingUser selectable 0 to 60 second delay between outputs energizing
Auto Load SheddingEach output user definable, manual or auto restart
