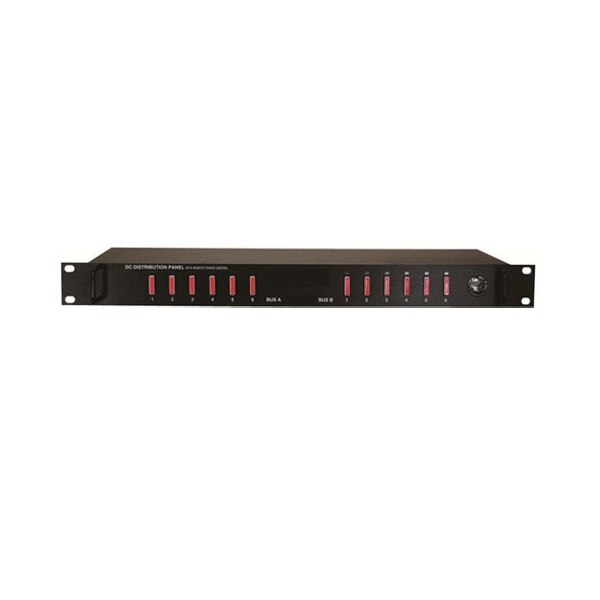

ICT 12/24/48Vdc 200 Amp 19" Rack Dual Bus Dist Pnl,6 Fuses/Bus

  • SKU: ICT200DF-12
  • Manufacturer: ICT
  • Data Sheet: Download
  • Availability: Open chat or call us for stock statusEmail me when this product is in stock!
US$‎495.00

ICT ICT200DF-12

12/24/48Vdc 200 Amp 19" Rack Dual Bus Distribution Panel,6 Fuses/Bus for 10-60VDC applications

The ICT DISTRIBUTION SERIES 3 provides independent dual bus capability for redundant systems or mixed-voltage sites. Each bus is rated at 100A peak and provides six fuse or breaker protected outputs. Standard models are available for unmanaged applications, while Intelligent models include ICT's industry leading TCP/IP remote management and power control features.



Features:

  • 200A peak system current rating / 100A per bus
  • Six outputs per bus
  • Independent Form C alarm contacts for each bus
  • Choice of fuse or breaker protected models
  • 80 volt rated FKS ATO style fuses or high-quality, reliable hydraulic/magnetic breakers support 12, 24 and 48VDC
  • Mixed voltages and polarities can be supported in one panel (provided grounds are common)
  • -30°C to +60°C operating temperature range
  • Front panel LED indicators for fuse status (fuse models)
  • 3 year warranty

Specifications ICT200DF-12

Weight7.0 Lbs | 3.2 Kg
Dimensions9.29"L x 19.00"W x 1.72"H
Mechanical
Form Factor1RU - 19 Inch rack mount with handles
ConnectorsM8 DC input stud connectors, 10-22AWG cage clamp output terminal blocks
Power
Application Voltage (pos or neg ground)12,24,48VDC
System Current Rating (peak⁄cont)200A/160A
Bus Current Rating (peak⁄cont)100A/80a
Number of Outputs per bus6
Operating Voltage Range10-60VDC
Number of ATO Fused DC Outputs12
ATO Max Fuse Rating (12,24V⁄48V)25A (See Spec Sheet)
Environment
Operating Temperature Range-30°C to +60°C
