WaveAP Mount 120°

(0)No Reviews yet
  • SKU: Wave-AP Mount
  • Manufacturer: ISP Supplies
  • Data Sheet: Download

Product Information

WaveAP Mount

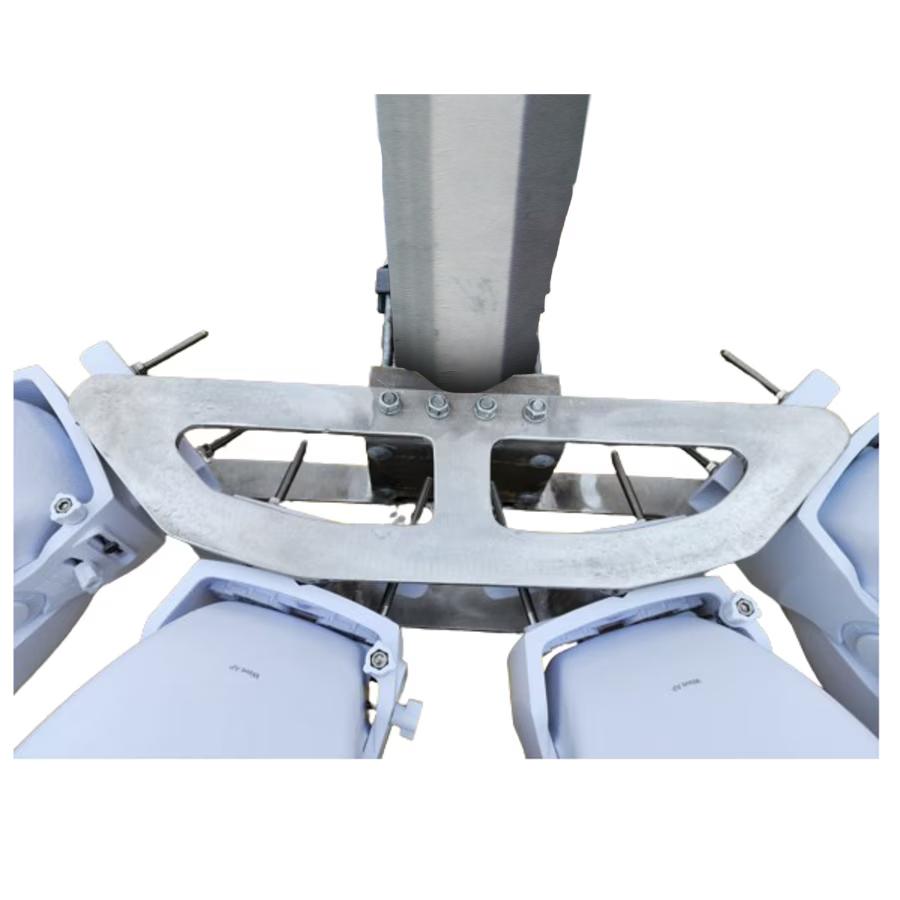

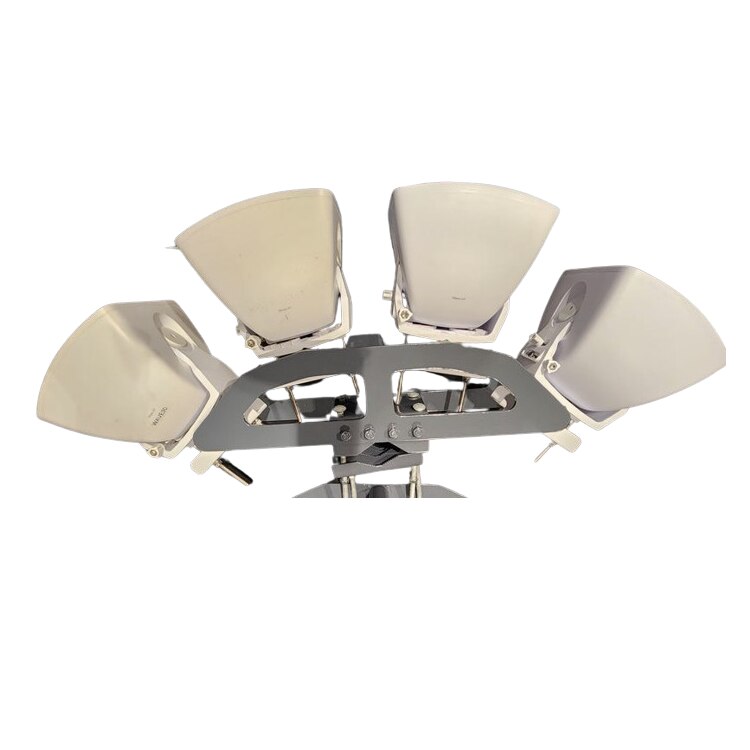

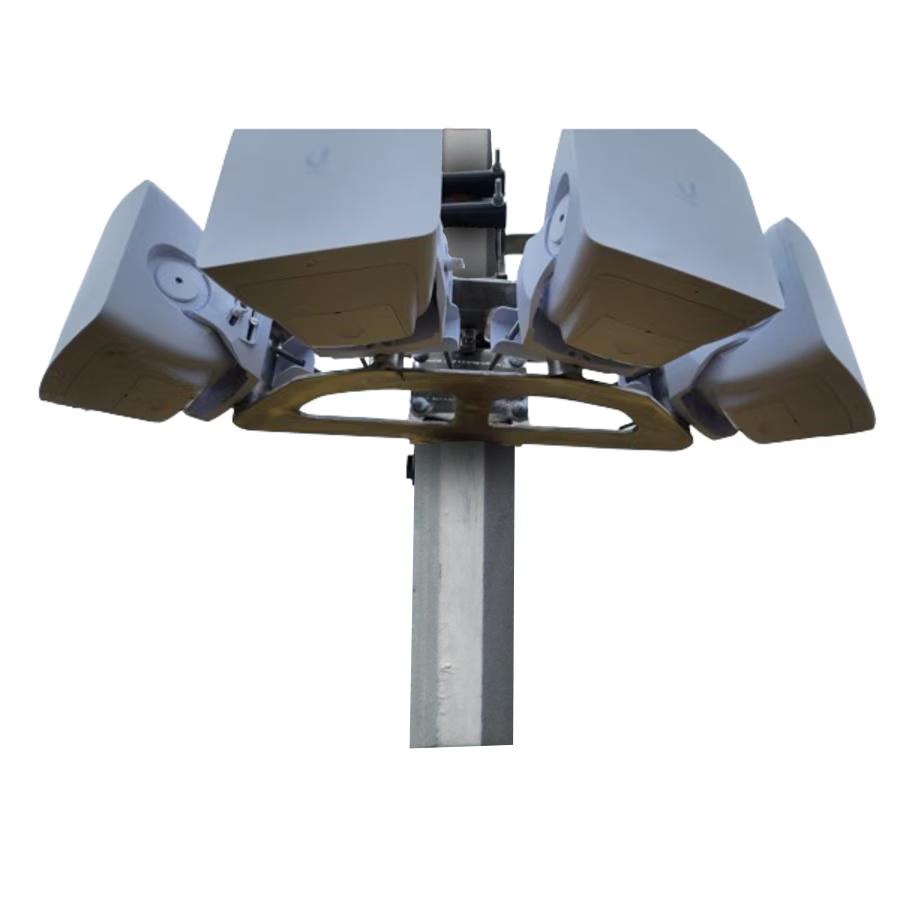

Vertical real estate is valuable on towers, so densifying your antennas is crucial for optimizing your space. This precision-engineered mount condenses 4 APs into a single horizontal footprint and streamlines the alignment process. This 4-antenna mount comes with laser-engraved alignment lines for easy mounting by the ground crew before hoisting the whole unit up all at once. Ensure your azimuths are precisely aligned while on the ground so your tower crews don't have to mess with alignment on the tower or have to re-climb to tweak alignment once you start adding customers. Your crews can use the mount as an easy alignment tool to ensure seamless coverage across all 120° without any dead spots.

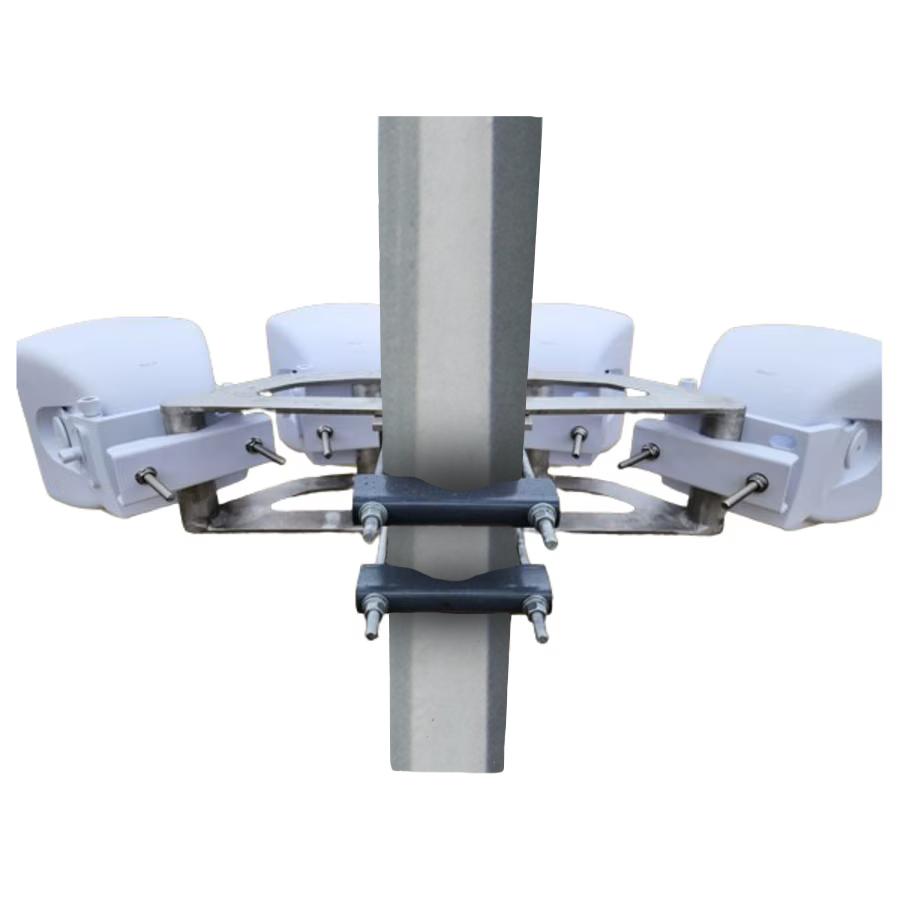

Mounting to an angled tower leg? Loosen the 4 bolts on top and use the adjustment bolt on the inside to adjust the angle by up to 3.25° to accommodate for the pipe angle.


This mount is engineered to withstand 100 Mph wind in the horizontal and vertical direction with a safety factor ranging from 4x to 5x depending on wind direction. Don't use WaveAPs? This mount is great for densifying a litany of other tower equipment including horns, dishes, and sectors. Optimize your vertical real estate with a Kalco Machine & Manufacturing tower mount today!

SPECIFICATIONS:
Mount Pole Diameters: 2" - 4.5"
Mount Pole Angles: 0° - 3.25°
Assembly Weight: 9.88 lbs
Height: 6.0"
Width: 22.381"
Mount Tube Diameter: 1.5"
Materials: Weldment, Aluminum, Hot-Dipped Galvanized Clamps
Wind Survival:
100 Mph Vertically Down - Safety factor 4.72
100 Mph Horizontal - safety Factor 5.065

Radios sold separately.

Specifications

Specifications WaveAP Mount

Mount Pole Diameters2" - 4.5"
Mount Pole Angles0° - 3.25°
Assembly Weight9.88 lbs
Height6.0"
Width22.381"
Mount Tube Diameter1.5"
MaterialsWeldment, Aluminum, Hot-Dipped Galvanized Clamps
Wind Survival100 Mph Vertically Down - Safety factor 4.72
100 Mph Horizontal - safety Factor 5.065
