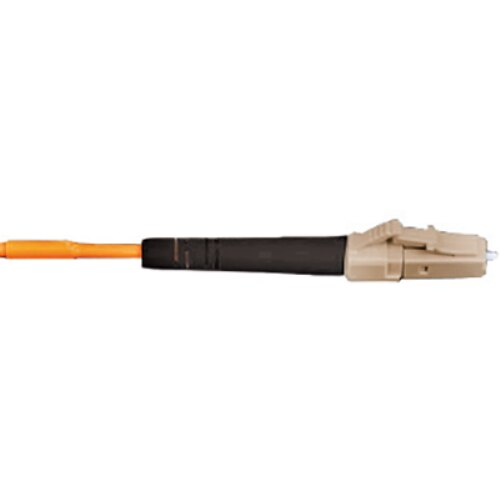

Ilsintech Splice On Connector, LC Simplex, 62.5, UPC, 900mc
Splice On Connector, LC Simplex, 62.5, UPC, 900 micron
PRO's Splice-on Connectors utilize a fiber fusion splicer to terminate fiber optic connectors in the field, addressing return loss concerns present in analog optical networks. Splice-on connectors feature factory pre-polished ferrules that eliminate the need for polishing and adhesives so they can be terminated in the field reducing the potential for operator error. The splice-on connector can be used not only in the field of communication but also in advanced technical fields including avionics, space, military, ship-building and power plants.
|Repeating Operation Test||500 Cycle, ≤ 0.2dB|
|Insertion Loss||≤ average 0.2dB (≤ max 0.3dB)|
|Fiber||OM1 Multimode 62/125|
|Tensile Strength||< 40 for 0.9mm, 0.2mm fiber|
