Itelite 2.4 GHz 2x15 dBi 2xDual MIMO-Pol Sector Antenna
- SKU: PRO-SEC-XL24/50DP-U
$149.00 $180.00
- Manufacturer: Itelite
- Data Sheet: Download
Product Information

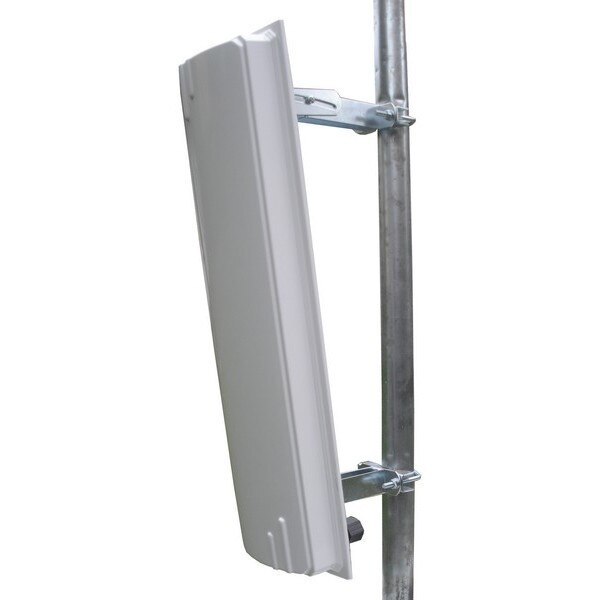

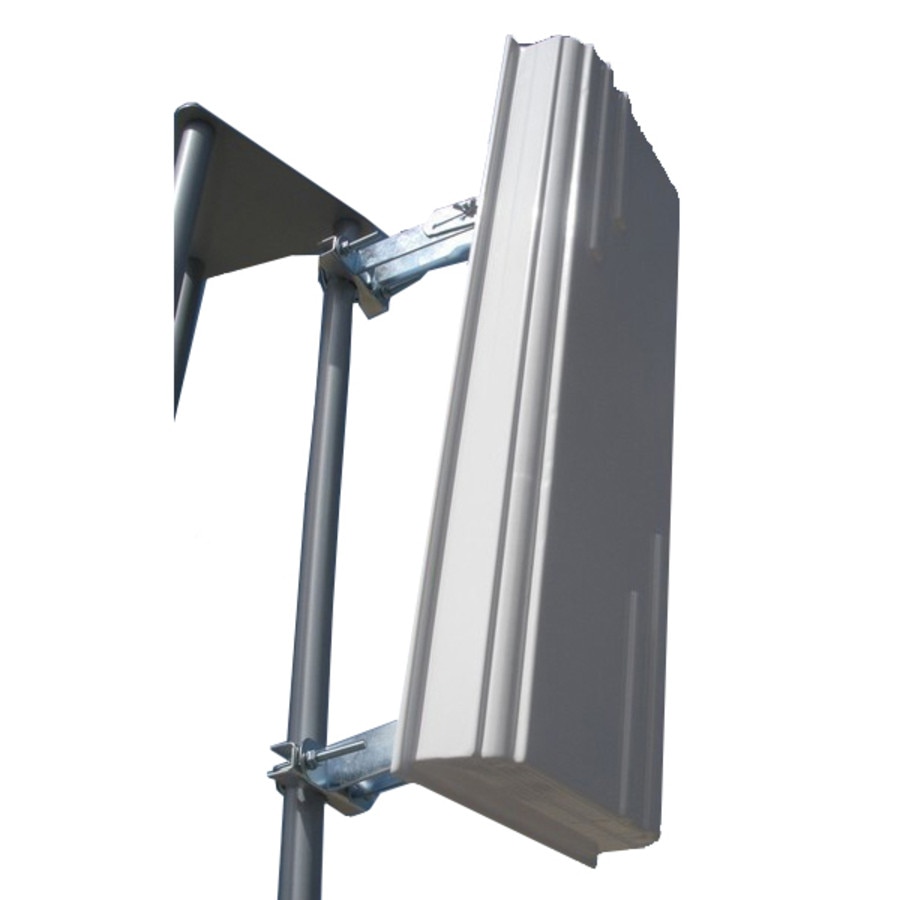

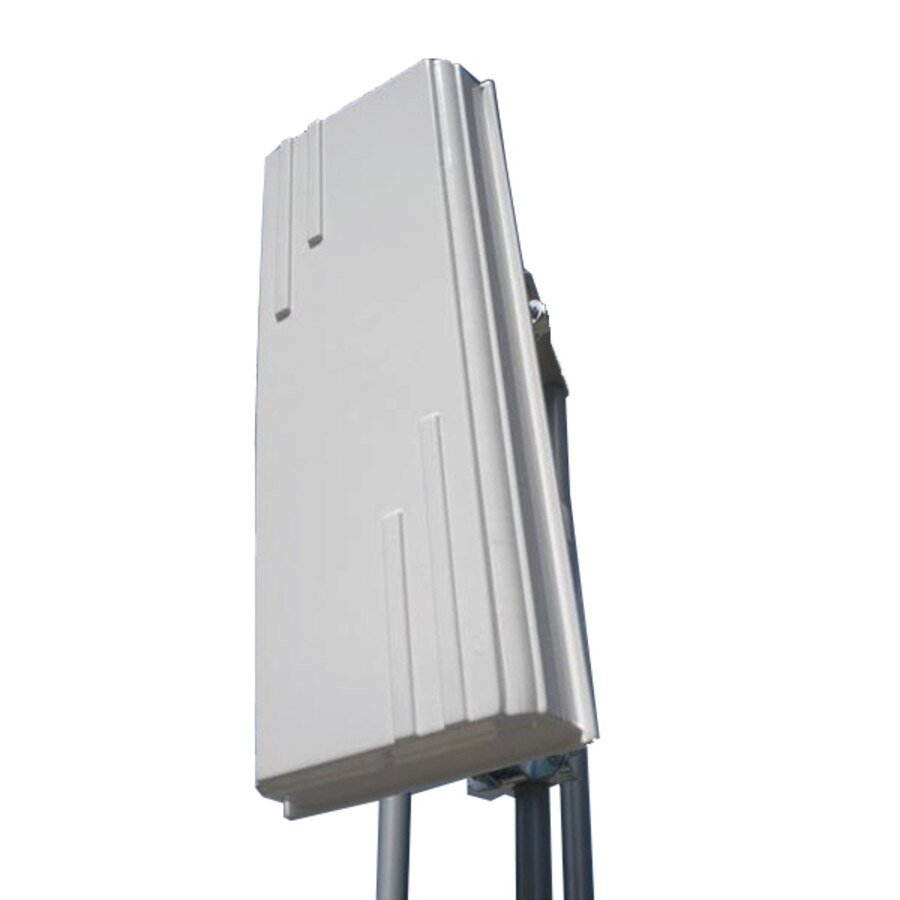

Itelite PRO-SEC-XL24/50DP Sector Antennas 2.4 GHz 2x15 dBi 2xDual MIMO-Pol
Sector antenna enclosure working in 2.4 GHz and 5 GHz band. Dual band and dual polarization in one case. Two of them in 2.4GHz and two in 5GHz. Antennas are in vertical and horizontal polarization. It is the ideal solution for MIMO configuration. Enclosure is furnished with special RJ-45 waterproof ethernet connector with an easy connection to Internet Network and PoE.

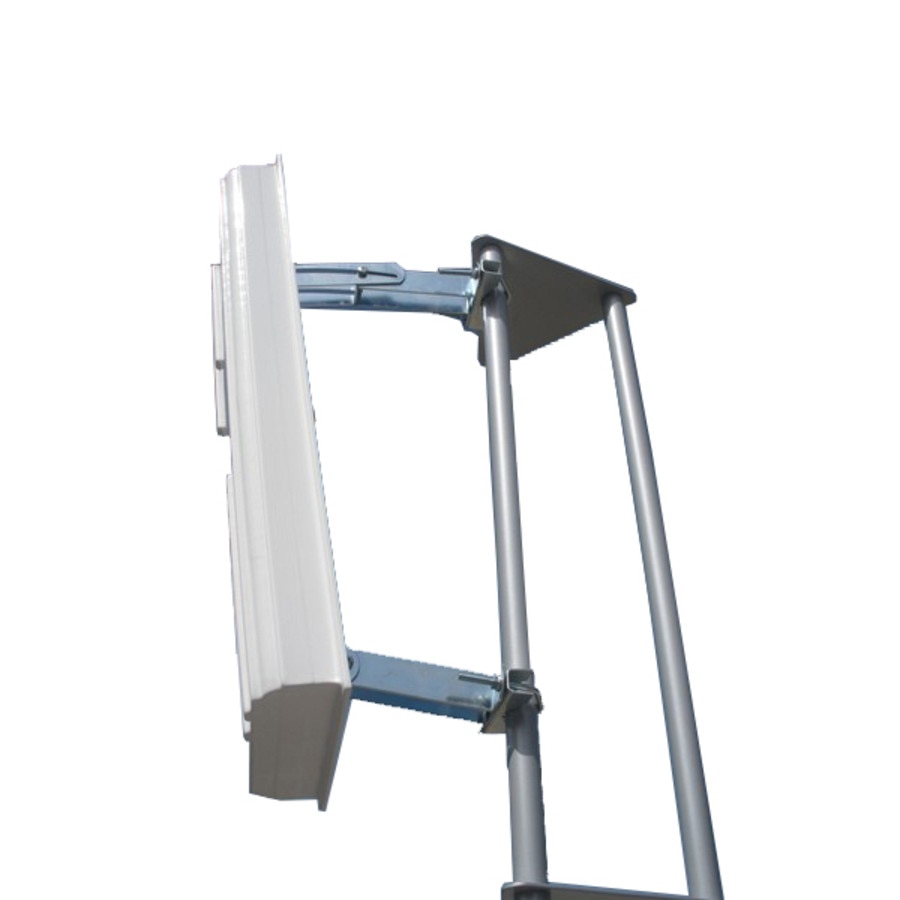

Perfectly designed for operation under severe weather conditions. Proper materials allow operation in the salty water environment without corrosion. Professional mounting system with 0-15 degrees scale guarantees easy and smooth tilt down as well as rock-stable operation. This product is well suited to point to multipoint applications for highly professional solutions.
Specifications
Specifications PRO-SEC-XL24/50DP
Electrical Properties
Frequency | 2,4 & 5 GHz |
Gain | 2x15dBi in 2.4GHz & 2x18dBi in 5GHz |
Polarization | 2xdual H&V |
Beamwidth deg horizontal | 90°(-3dB), 120°(-6dB) |
Beamwidth deg vertical | 12° in 2.4GHz & 6° in 5GHz |
VSWR | <1,8 |
Impedance | 50 ohm |
Front to back ratio | > 35 dB |
Enclosure Properties
Technology: | Microstrip |
Material: | UV protected |
Colour: | White |
Ingress Protection (EN 60529): | IP 66 |
Min temperature: | -40 |
Max temperature: | 120 |
Mechanical Properties
Input Connector | 4x pigtai MMCX, UFL or others |
Wind Load | <60N@160Kmh |
Outside Dimensions | 580x260x80 mm |
Weight | 3.5kg |
