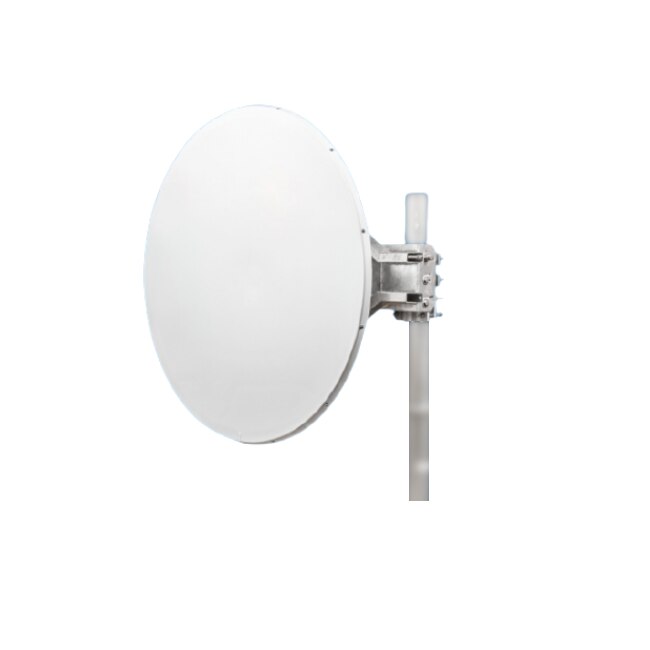

Jirous 17.1-19.7 GHz 1200mm 43.2 dBi Parabolic Antenna Duopack

(0)No Reviews yet
  • SKU: JRMC-1200-17/18 Ra Duopack
US$‎3,649.00
  • Manufacturer: Jirous
  • Data Sheet: Download
1 in stock
College Station
1 In stock

Product Information

Jirous JRMC-1200-17/18 Ra Duopack

17.1-19.7 GHz 1200mm 43.2 dBi Parabolic Antenna Duopack

Antenna JRMC – 1200 – 17/18 is designed for microwave links at the frequency band 17 and 18 GHz. Precise performance with deep reflector dish is complying with standard ETSI Class 3 and FCC Cat. A.


Features:

  • Deep reflector dish with great resistance to interference and high mechanical strength
  • High neighboring links isolation
  • Radom included
  • Massive bracket with accurate elevation and azimuth setting
  • Right and left side mounting
  • Strong wind stability

Specifications

Specifications JRMC-1200-17/18 Ra Duopack

Frequency range17.1 – 19.7 GHz
Gain - Low band43.2 ±1 dBi
Gain - High band44.7 ±1 dBi
Return loss≥ 17 dB
Front to back ratio≥ 72 dB
Beamwidth-3 dB0.9°
ETSI EN 302-217-4-2Class 3
FCC standardUS FCC Cat A
Polarizationlinear, vertical/horizontal
Mechanical
Parabolaø 1200 mm - Aluminium alloy
Input/outputwaveguide ø 11 mm
Installation on mastø 80 - 120 mm
ø 60 - 80 mm - with adjustable wind bracing set
Operating wind load
without wind bracing
with wind bracing

max. 110 km/h
max. 140 km/h
Survival wind loadmax. 210 km/h
Weight of antenna40 kg (88 lbs.)
Shipping dimensions – 2 pcs1300 x 1100 x 1430 mm / 110 kg (243 lbs)
