Jirous 11GHz Parabolic Dish Antenna with JDMW-900 AR Precision Mount

  • SKU: JRMC-900
  • Manufacturer: Jirous
  • Data Sheet: Download
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
$‎799.00

Add-Ons (click to select)

Specifications JRMC-900

Frequency range10.0 - 12 GHz
Gain Low band 37.0 ± 1 dBi
Gain High band 37.5 ± 1 dBi
Beamwidth -3 dB 2.3° ± 0.5°
Return loss ± 18 dB(10.3 - 11.7 GHz)
Front to back ratio ≥62.5 dB
FCC standard US FCC Part 101A (10.0-10.7 GHz); US FCC part 101B (10.7 - 11.7 GHz)
ETSI EN 302-217-4-2 Class 3
ACMA - RALI FX3 Grade B
Polarization depends on the Unit installation; linear - horizontal and vertical
Parabola ø 900 mm (3 ft) - Aluminium alloy, powder coated
Cover UV steady plastic ABS
Conection waveguide ø 19 mm
Installation on mast ø 40 - 120 mm
Operating wind load max. 140 km/h (87 mph)
Survival wind load max. 210 km/h (130 mph)

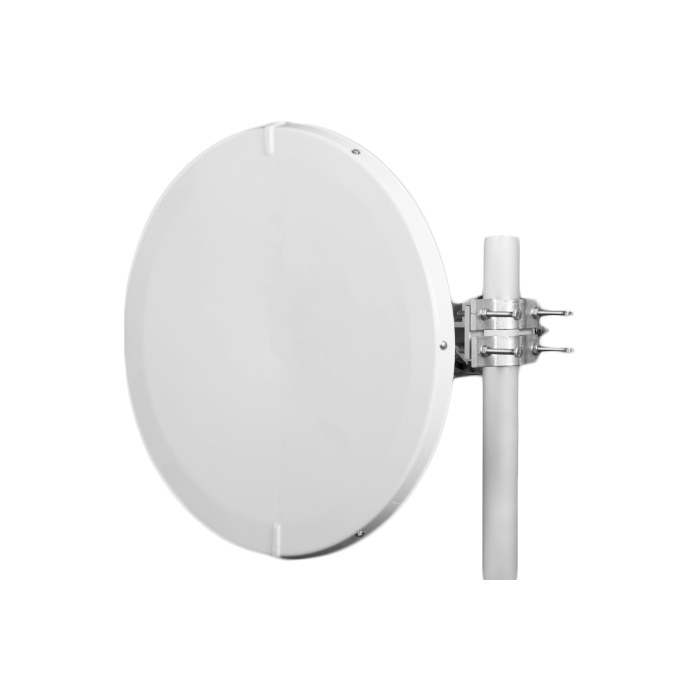

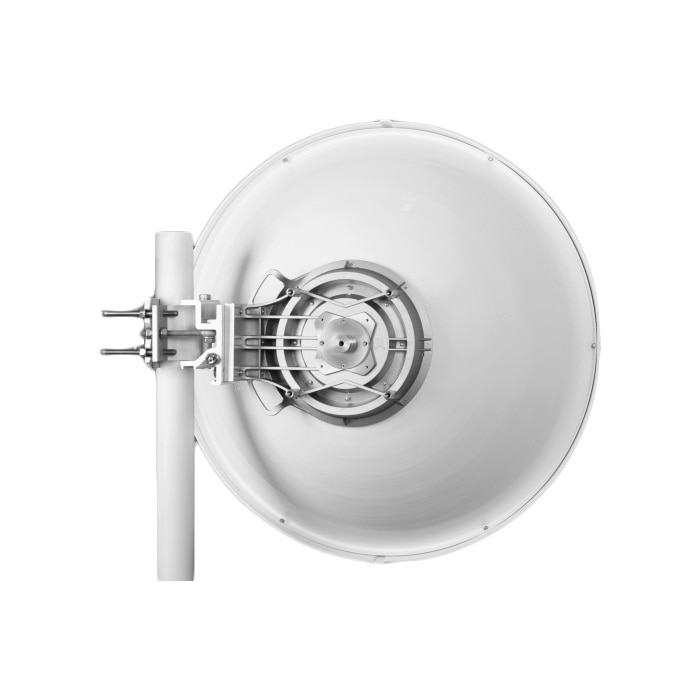

Jirous JRMC-900

11GHz Parabolic Dish Antenna with JDMW-900 AR Precision Mount

Antenna JRMC – 900 – 10/11 is designed for microwave links at the frequency band 10 and 11 GHz. Precise performance with deep reflector dish complies with standard ETSI class 3.


Features:

  • Deep parabola with great resistance to interference and high mechanical strength
  • High neighboring links isolation
  • Radom included

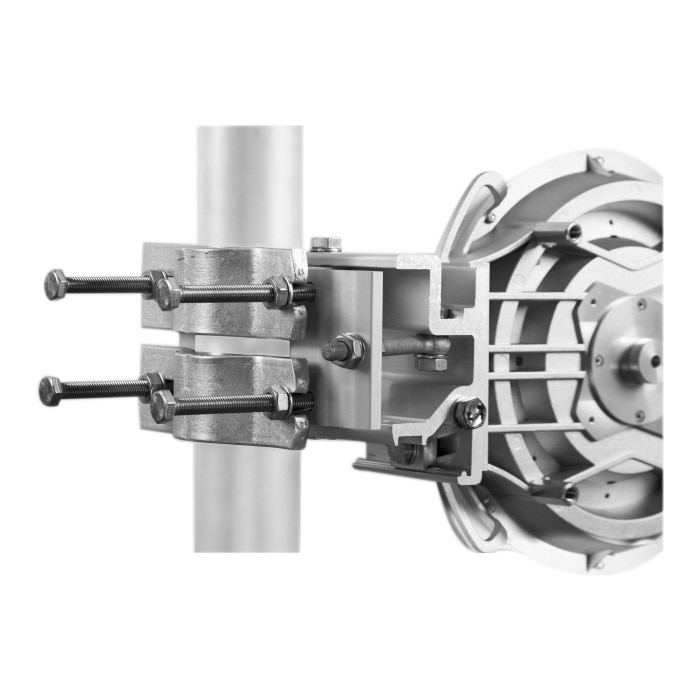

  • Massive bracket JDMW-900 with accurate elevation and azimuth setting
  • Right and left side mounting
  • Extreme wind stability

Design for MW units:

  • Mimosa
  • Racom
  • Alcoma
  • Summit
  • UBNT AF-11 - necessary to use JXAF-11 adapter
