Jirous 80 GHz Super High Performance Parabolic Antenna, Dual Polarized, 1' (400mm)
- SKU: JRME-400-80 RA
$549.00
- Manufacturer: Jirous
- Data Sheet: Download
Product Information
Jirous JRME-400-80

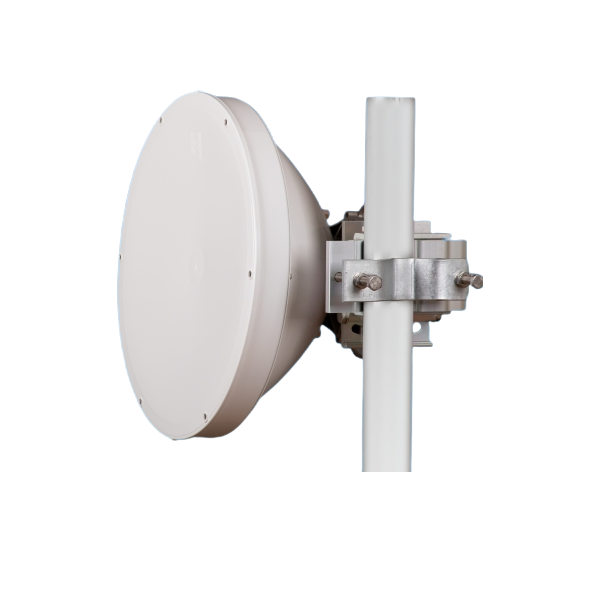

80 GHz Super High Performance Parabolic Antenna, Dual Polarized, 1' (400mm)
Antenna JRME–400–80 is designed for microwave links at the frequency band 80 GHz. Precise performance with deep reflector dish complies with standard ETSI class 3 and FCC Cat A.
Features:
- Professional microwave antenna for Summit units
- Deep parabola and added collar with extra hight resistance to interference and high mechanical strength
- Extra high front to back ratio
- High neighboring links isolation
- Radom included

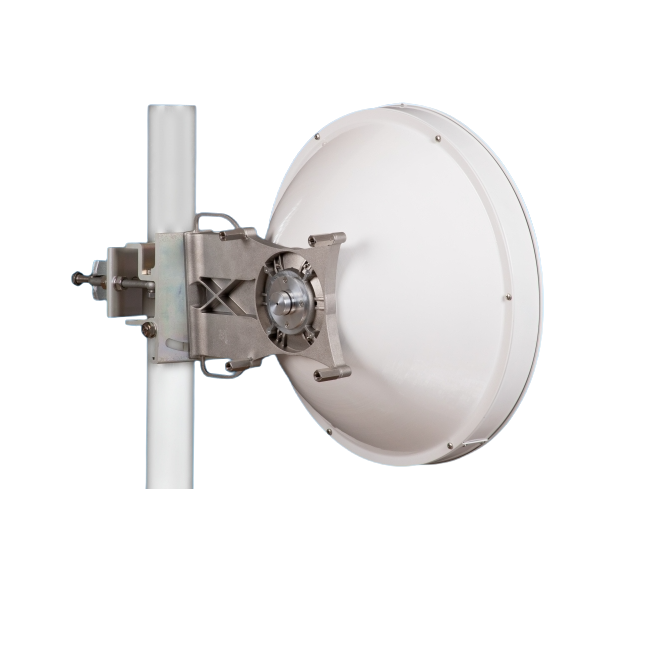

- Massive bracket extra fine elevation and azimuth adjustment
- Right and left side mounting
- Extreme wind stability
Specifications
Specifications JRME-400-80
Weight of antenna Weight of holder | 2.3 kg (5 lbs.) 2.5 kg (5.5 lbs.) |
| Frequency range | 74 - 86 GHz |
| Gain Low band | 46,4 dBi ± 1 dBi |
| Gain High band | 48,2 dBi ± 1 dBi |
| Beamwidth -3 dB | 0,7° ± 1° |
| Front to back ratio | 65 dB |
| ETSI EN 302-217-4-2 v1.5.1 | Class 3 |
| US FCC | YES |
| Polarization | depends on the Unit installation; linear - horizontal and vertical |
| Parabola | diameter 400 mm (1 ft) - Aluminium alloy, powder coated |
| Cover | UV steady plastic |
| Conection | waveguide o 3.2 mm |
| Installation on mast diameter | 40 - 120 mm |
| Operating wind load | max. 180 km/h |
| Survival wind load | max. 240 km/h |
