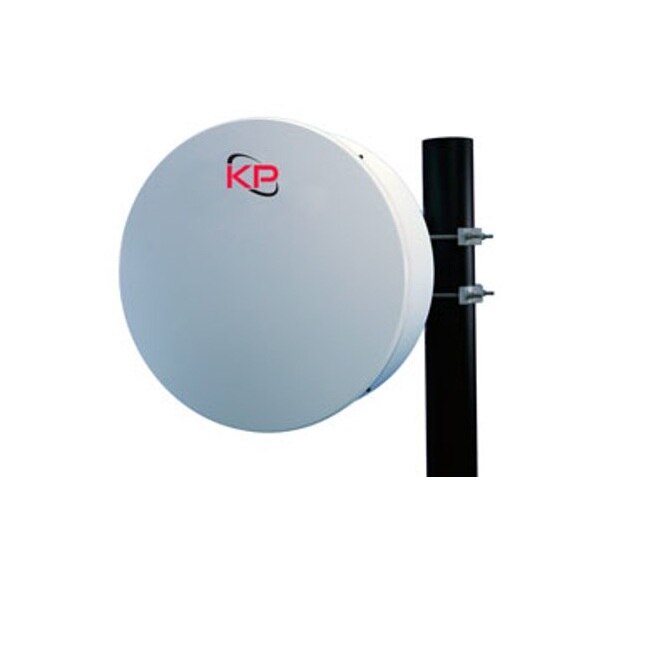

KP Performance 2’ AF11X Antenna with radio mount. No cables.

(0) No Reviews yet
  • SKU: KP-11PDFX-2
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Availability: 2 In Stock (updated live)
$495.00

Specifications KP-11PDFX-2

Electrical
Frequency Band MHz 10.7-11.7
Gain (Low | Mid | High) dBi 34 | 34.3 | 34.4
Polarization Dual
Horizontal HPBW Degree 3.4
Vertical HPBW Degree 3.4
Front-to-Back Ratio @ 180°±30° dB 60
Cross-polarization Ratio over HPBW dB 30
VSWR 1.5 typ | 1.8 max
Return Loss dB 14 typ | 11 max
Port-to-Port Isolation dB 30 typ | 24 max
Max. Input Power per Port W 100
Impedance Ohms 50
Mechanical
Diameter, nominal 2ft | 0.6m
Antenna Color White
Antenna Input 2 x N-type Female
Radome Material UV resistant ABS
Temperature Range -40° to +60° C
Wind Speed Operational 145 km/h | 90 mph
Fine Azimuth Adjustment + / - 10 degrees
Wind Speed Survival 250 km/h | 155 mph
Fine Elevation Adjustment + / - 10 degrees
Wind Load, Axial (FA) 899 N | 202 lbs
Mounting Pipe Diameter 2 – 4.5 in | 5.1 – 11.4 cm
Wind Load, Side (FS) 445 N | 100 lbs
Net Weight 27 lbs | 12.3 kg
Twisting Moment (MT) 194 ft-lbs | 263 Nm
Regulatory Compliance
FCC Part 101 Cat. B
Industry Canada Compliance undeclared
ETSI 302217 R1 C2
RoHS-compliant Yes

KP Performance KP-11PDFX-2

0.6M | 2ft High Performance Parabolic Antenna, Dual Polarized, 10.7-11.7GHz


Features:

  • High Performance ETSI Class 2 | FCC Cat. B Parabolic Antennas – Excellent performance for a wide range of point-to-point applications
  • Fully Preassembled at the Factory – Simplifies installation onsite and guarantees “factory tested” quality
  • Heavy-duty hardware survives 250km/h
