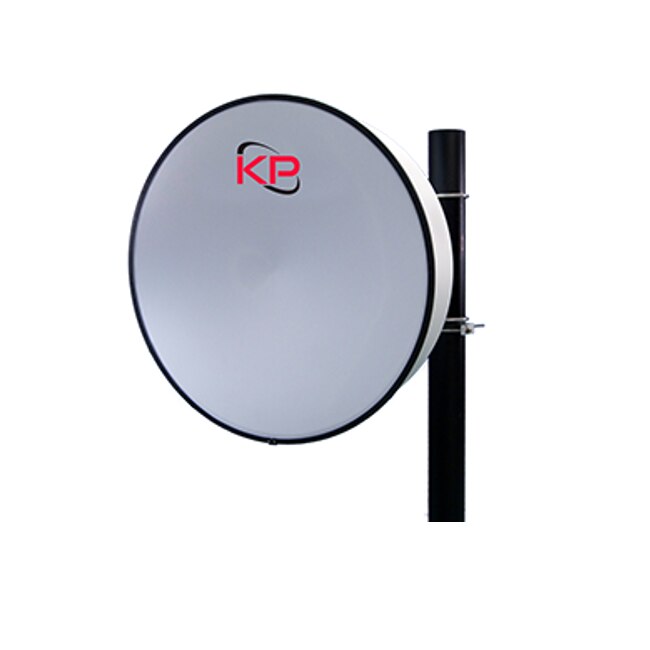

KP Performance KP-11PDFX-3

0.9M | 3 Ft High Performance Parabolic Antenna, Dual Polarized, N-Type, 10.7-11.7 GHz

This ProLine Parabolic Antenna is engineered to suppress side-lobes and back-lobes and are excellent at rejecting interference. These parabolic antennas maximize the potential of your radio by improving signal strength and reducing the noise floor in your link. Our parabolic antennas are perfectly suited for high density point-to-point client-premises or backhaul applications.

The KP-11PDFX-3 is a 3-foot, 39 dBi parabolic antenna operating from 10.7 GHz to 11.7 GHz. This high performance ETSI Class 3, FCC Cat A antenna includes a Ubiquiti airFiber® 11FX mounting kit and comes preassembled from the factory. This parabolic antenna also features dual polarization and boasts excellent front-to-back of 62 dB.


Features:

  • Stable gain over ultra-wide bandwidth of 10.7 GHz - 11.7 GHz
  • Comes preassembled from the factory for quickest time to tower
  • Includes radome ensuring robust and reliable performance under the most challenging condition
  • Optimized F/B & side-lobe suppression minimizes interference
  • Includes Ubiquiti airFiber® 11FX mounting kit
  • Installs in minutes to reduce service calls and installation time
  • Heavy-duty bracket with fine elevation and azimuth adjustment
  • Heavy-duty hardware survives 250Km/h wind speeds

Specifications

Specifications KP-11PDFX-3

Electrical
Frequency Band MHz 10.7-11.7
Gain (Low | Mid | High) dBi 38.1 | 38.5 | 39.0
Polarization Dual
Horizontal HPBW Degree 2.1
Vertical HPBW Degree 2.1
Front-to-Back Ratio @ 180°±30° dB 62
Cross-polarization Ratio over HPBW dB 30
VSWR 1.5 typ | 1.8 max
Return Loss dB 14 typ | 11 max
Port-to-Port Isolation dB 30 typ | 24 max
Max. Input Power per Port W 100
Impedance Ohms 50
Mechanical
Diameter, nominal 3ft | 0.9m
Antenna Color White
Antenna Input 2 x N-type Female
Radome Material UV resistant ABS
Temperature Range -40° to +60° C
Wind Speed Operational 145 km/h | 90 mph
Fine Azimuth Adjustment + / - 10 degrees
Wind Speed Survival 250 km/h | 155 mph
Fine Elevation Adjustment + / - 10 degrees
Wind Load, Axial (FA) 1792 N | 403 lbs
Mounting Pipe Diameter 2 – 4.5 in | 5.1 – 11.4 cm
Wind Load, Side (FS) 890 N | 200 lbs
Net Weight 112 lbs
Twisting Moment (MT) 344 ft-lbs | 466 Nm
Regulatory Compliance
FCC PPart 101 Cat. A
Industry Canada Compliance SRSP310.7 B
ETSI 302217 R1 C3
RoHS-compliant Yes
