KP Performance 2.3 GHz to 2.7 GHz + 3.3 GHz to 3.8 GHz Dual Band Omni Antenna
US$407.54 US$428.99
- SKU: KP-23DOMNI-HV
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information

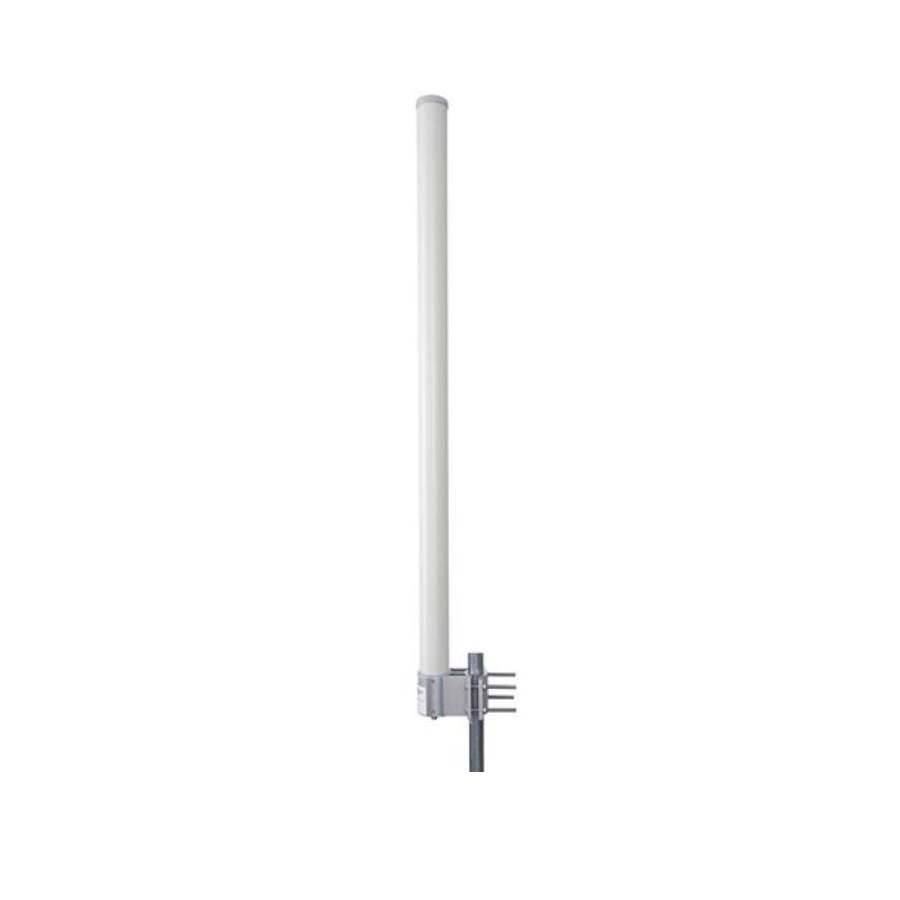

KP Performance KP-23DOMNI-HV
2.3 GHz to 2.7 GHz + 3.3 GHz to 3.8 GHz Dual Band Omni Antenna, 10 dBi to 11.5 dBi, 4-Port, H/V Polarization
The KP Performance KP-23DOMNI-HV dual-band (dual frequency) omni antenna operates in the 2.3 GHz to 2.7 GHz AND 3.3 GHz to 3.8 GHz frequency ranges in a single radome with one mounting point. This 360° omnidirectional antenna is dual-band, enabling 2x2 MIMO in each band or 4x4 MIMO across bands with carrier aggregation.
The central function of this omni antenna is as a base station antenna for 2 GHz and 3 GHz connectorized AP radios.
Features:
- Two frequencies in a single radome enclosure with one mounting point
- 2300—2700 MHz & 3300—3800 MHz
- Gain of 10 dBi at 2GHz & 11.5 dBi at 3GHz
- Uniform 360° coverage
- UV resistant PVC
- IP55 rain and dust resistant
- Accommodates all 2GHz and 3GHz connectorized (Type-N) radios
- 66 inches tall
- Cables not included
Specifications
Specifications KP-23DOMNI-HV
| Frequency Range | 2.3 GHz to 2.7 GHz / 3.3 GHz to 3.8 GHz |
| Polarization Type | Horizontal / Vertical |
| Gain | 10 dBi / 11.5 dBi |
| Vertical Beamwidth | 13° / 7.9° |
| Horizontal Beamwidth | 360° |
| Electrical Downtilt | 2° / 2° |
| VSWR | 1.7:1 Typical |
| Cross Polar Ratio | 20 dB |
| Port Isolation | 30 dB |
| Connector Type | 4 x Type N Female |
| Dimension | 68.7 in L x 5 in W x 4 in H |
| Weight | 9.7 lbs |
