KP Performance 2.3 GHz to 2.7 GHz + 3.3 GHz to 3.8 GHz + 4.9 GHz to 5.9 GHz, 65 Degree TriBand Sector Antenna

  • SKU: KP-2S3S5HVX8-65
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Availability: Open chat or call us for stock statusEmail me when this product is in stock!
    Out of stock at College Station
US$‎820.05

Specifications KP-2S3S5HVX8-65

Frequency Range2.3 GHz to 2.7 GHz | 3.3 GHz to 3.8 GHz | 4.9 GHz to 5.9 GHz
Polarization Type±45 | H/V
Gain16 dBi | 18 dBi | 19 dBi
Vertical Beamwidth12° | 8° | 7°
Horizontal Beamwidth65°
Electrical Downtilt0° / 0°
F/B Ratio30 dB
Connector Type8 x Type N Female
Length 991 mm | 39 in
Width 279 mm | 11 in
Height 89 mm | 3.5 in
Net Weight, with brackets 4.3 kg | 9.5 lb

KP Performance KP-2S3S5HVX8-65

2.3 GHz to 2.7 GHz + 3.3 GHz to 3.8 GHz + 4.9 GHz to 5.9 GHz, 65 Degree TriBand Sector Antenna, 8-Port, Horizontal/Vertical

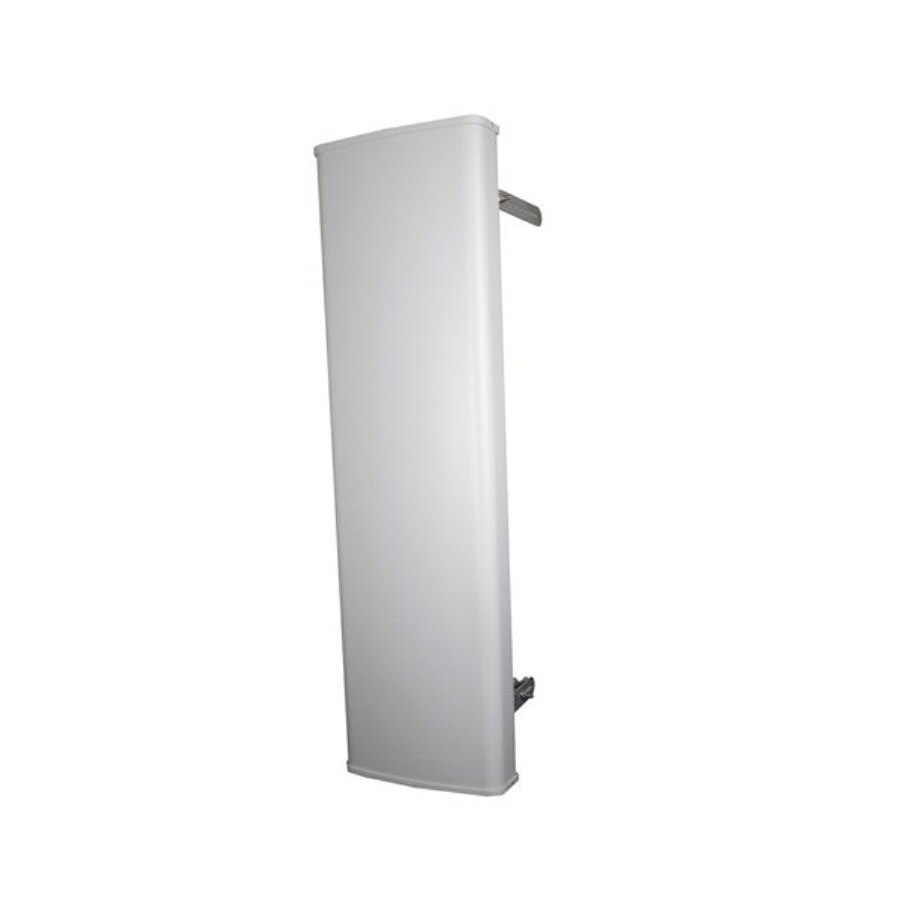

The KP new high-performance triple-band sector antenna KP-2S3S5HVX8-65 combines 2.3 to 2.7GHz (2 port, 16dBi,+/-45 Slant), 3.3 to 3.8GHz (4 port, 18dBi, +/-45 Slant), and 4.9 to 5.9GHz (2 port, 19dBi, +/-45 Slant) sector arrays with a 65 Degree beamwidth in a single UV-protected enclosure. This antenna allows complete triband spectrum coverage while reducing leased space on the tower and installation costs.

This triple-band sector antenna supports MIMO with one 2x2 radio in 2.4GHz, one 4x4 radio or two 2x2 radios in 3.5GHz, and one 2x2 radio in 5GHz band in which multiple combinations of popular radios can be used. It supports IEEE 802.11b/g/n/ax, 2.4GHz ISM, 3.5 GHz LTE and Citizens Broadband Radio Service (CBRS), public safety (4.9 GHz), and U-NII-1, 2, 3, and 4 (5.15-5.925 GHz). The sector antenna is ideal for applications requiring 60 or 90 degree horizontal coverage over one or more sectors and with 4-sector frequency-reuse two (ABAB) and 6-sector frequency-reuse three (ABCABC) channel planning.

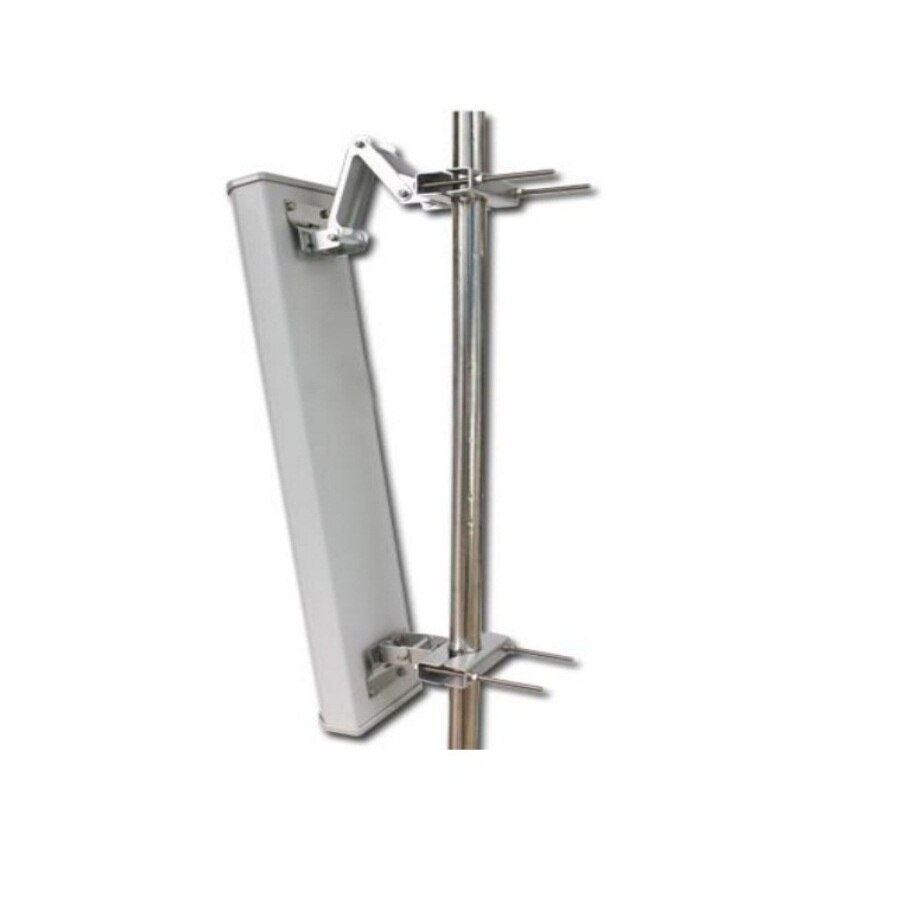

Rugged and weatherproof, the KP performance triple-band sector antenna provides a durable platform built for a broad range of environments and feature a heavy-duty UV-resistance plastic radome for all-weather operation. The powder coated, high-strength mounting brackets are built to withstand wind speeds of up to 100mph and survive in corrosive environments with large swing in seasonal weather not impacting performance. The antenna comes with three of KP’s radio mounting slots which supports mounting of most Ubiquiti radios and works with KP’s Radio brackets for Cambium’s PMP450 and 450I (KPPA-PMP450I-MNT) and ePMP2000 (KPPA-EPMP2K-APBR) radios.


Features;

  • 2.3-2.7GHz (2 port, 16dBi,+/-45 Slant), 3.3-3.8GHz (4 port, 18dBi, +/-45 Slant), and 4.9-5.9GHz (2 port, 19dBi, +/-45 Slant)
  • 2 x 2 and 4 x 4 MIMO – Multiple-Input and Multiple-Output
  • 65 dgree sector with 30dB front to back allows frequency reuse on back to back sectors
  • Heavy-duty brackets with mechanical downtilt adjustment
  • UV-resistant radome and rugged mounting hardware for all-weather operation
  • 0° fixed electrical downtilt

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11b/g/n/ax
  • 3.5 GHz Citizens Broadband Radio Service (CBRS)
  • Public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz)
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • Point-to-multipoint (PtMP) requiring sectorial coverage
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
