KP Performance 3.3 GHz to 3.8 GHz + 5.15 GHz to 5.85 GHz Dual Band Omni Antenna

(0)No Reviews yet
  • SKU: KP-35DOMNI-HV
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

Product Information

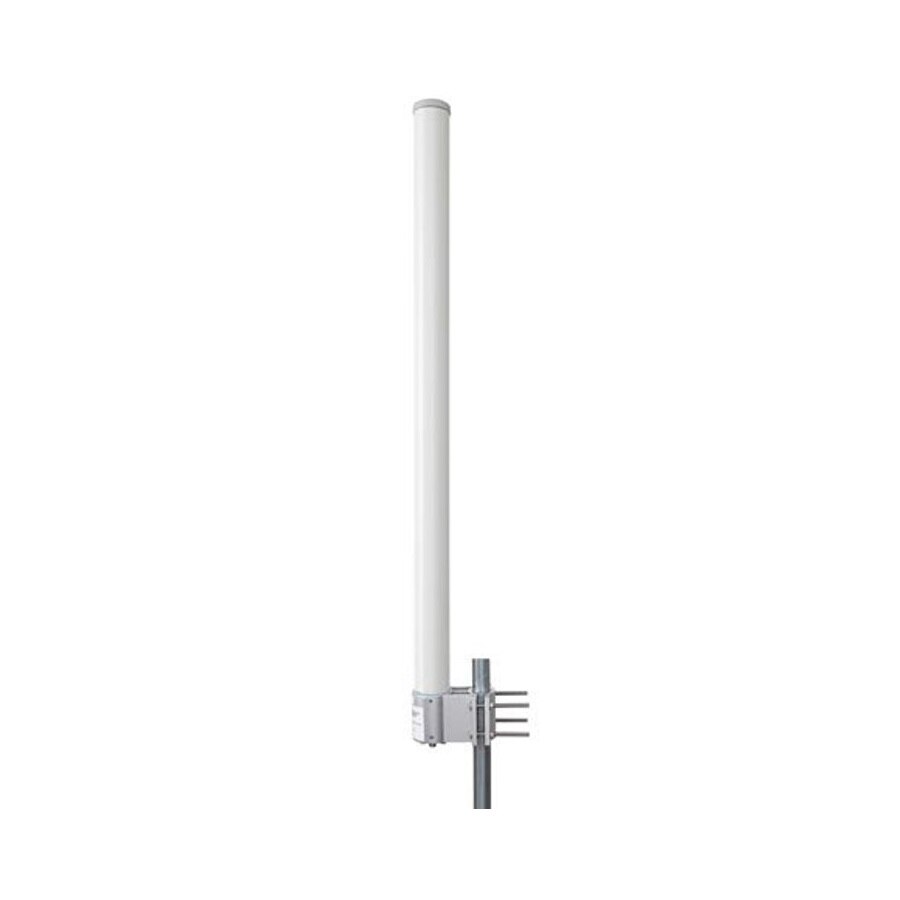

KP Performance KP-35DOMNI-HV

3.3 GHz to 3.8 GHz + 5.15 GHz to 5.85 GHz Dual Band Omni Antenna,11 dBi to12 dBi, 4-Port, H/V Polarization

The KP Performance KP-35DOMNI-HV dual-band (dual frequency) omni antenna operates in the 3.3 GHz to 3.8 GHz AND 5.15 GHz to 5.85 GHz frequency ranges in a single radome with one mounting point. This 360° omnidirectional antenna is dual-band, enabling 2x2 MIMO in each band or 4x4 MIMO across bands with carrier aggregation.

The central function of this omni antenna is as a base station antenna for 3 GHz and 5 GHz connectorized AP radios.


Features:

  • Two frequencies in a single radome enclosure with one mounting point
  • 3300—3800 MHz & 5150—5850 MHz
  • Gain of 11 dBi at 3GHz & 12 dBi at 5GHz
  • Uniform 360° coverage
  • UV resistant PVC
  • IP55 rain and dust resistant
  • Accomodates all 3GHz and 5GHz connectorized (Type-N) radios
  • 55.1 inches tall
  • Cables not included

Specifications

Specifications KP-35DOMNI-HV

Frequency Range3.3 GHz to 3.8 GHz / 5.15 GHz to 5.85 GHz
Polarization TypeHorizontal / Vertical
Gain11 dBi / 12 dBi
Vertical Beamwidth7.2° / 7.2°
Horizontal Beamwidth360°
Electrical Downtilt2° / 2°
VSWR1.7:1 Typical
Cross Polar Ratio20 dB
Port Isolation30 dB
Connector Type4 x Type N Female
Dimension 57.9 in L x 5 in W x 4 in H
Weight 9.4 lbs
