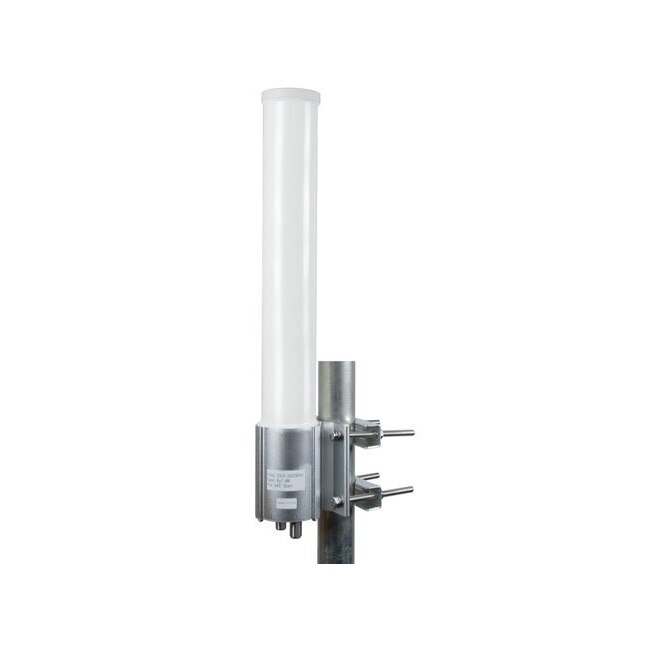

KP Performance 3.3 GHz to 3.8 GHz, 8 dBi Dual Pol MIMO Omni Antenna, 2 Type N Female, PVC Radome
- SKU: KP-3DOMA-8
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-3DOMA-8
3.3 GHz to 3.8 GHz, 8 dBi Dual Pol MIMO Omni Antenna, 2 Type N Female, PVC Radome
The KP-3DOMA-8 from KP Performance is a high performance 5G / LTE outdoor omnidirectional antenna designed for Cellular Networks. The KP-3DOMA-8 operates from 3300 to 3800 MHz which is ideal for 5G, LTE, and MIMO 2x2 applications in CBRS band. The Multi-Band design of the KP Performance KP-3DOMA-8 antenna eliminates the need to purchase different antennas for each frequency. The same antenna can be used for a wide array of base station cellular applications where wide coverage is desired. KP Performance's KP-3DOMA-8 can be used to distribute Cellular telecommunication signals over a large area.
The omnidirectional antenna with Dual Slant (±45°) polarization KP-3DOMA-8 from KP Performance has Type N connectors and 8 dbi of gain. The Type N connectorized KP-3DOMA-8 antenna from KP Performance excels in large open areas. The mounting bracket and hardware are included for easy installation. Our expert technical support and friendly, knowledgeable customer service personnel are available to assist you with your particular needs for 5G / LTE outdoor omnidirectional 5G cellular antennas.
Features:
- All weather operation
- ±45 Slant
- 2x2 MIMO
- PVC radome
- Integral N-Female connectors
- Commercial grade design
- 360° Omnidirectional Pattern
Application::
- Point to Multipoint and Non Line of Sight (NLOS) Applications
- 8 dBi gain
- 3500, LTE, and CBRS Cellular Band Operation
Specifications
Specifications KP-3DOMA-8
Frequency Range | 3300 MHz to 3800 MHz |
Gain | 9 dBi |
VSWR | 2:1 |
Impedance | 50 Ohms |
Input Power | 100 Watts |
Radome Material | PVC |
Housing Plating/Color | Gray |
Radiator Material | Aluminium |
Dimension L x W x H | 21.7 x 3 x 2.99 inch |
Mounting Mast Diameter | 1.18 to 2.16 in |
Weight | 5 lbs (2.27 g) |
