KP Performance 3.5 GHz to 3.8 GHz, 60 Degree, 10 dBi, ±45 Slant Polarization, 2-Port Flat Panel Antenna

  • SKU: KP-3DPFP10
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: Open chat or call us for stock statusEmail me when this product is in stock!
US$‎55.62

Specifications KP-3DPFP10

Frequency Range3500 MHz to 3800 MHz
Polarization Type45° Slant
Gain10 dBi
Vertical Beamwidth38°
Horizontal Beamwidth60°
Electrical Downtilt
F/B Ratio20 dB
VSWR1.3 typ
Cross Polar Ratio15 dB
Return Loss17 dB
Connector TypeN-Type Female
Antenna Dimensions
Length 105 mm | 4.1 in
Width 84 mm | 3.3 in
Height 33 mm | 1.3 in
Net Weight, with brackets 0.3 lb

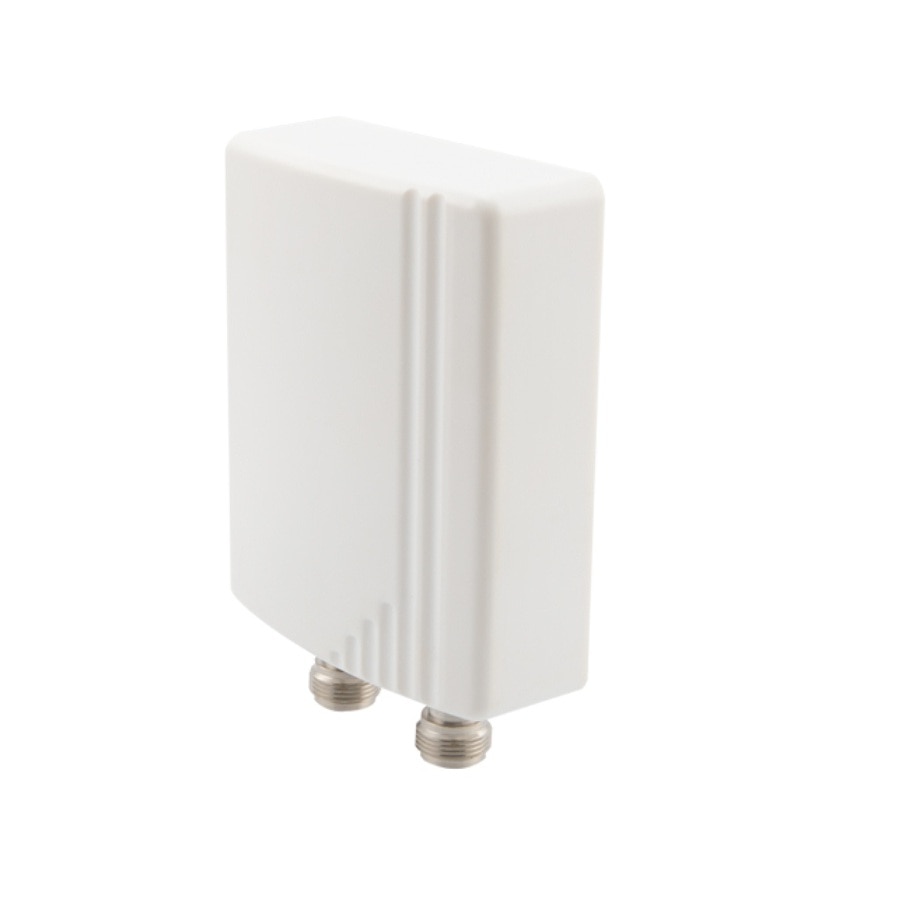

KP Performance KP-3DPFP10

3.5 GHz to 3.8 GHz, 60 Degree, 10 dBi, ±45 Slant Polarization, 2-Port Flat Panel Antenna

Superior Performance:

The KP Performance KP-3DPFP10 Flat Panel Antenna combines two ports with dual ±45 slant polarization, high 10 dBi gain with a 60 degree horizontal beamwidth in a single enclosure with one mounting point.

The KP-3DPFP10 is a professional quality antenna designed primarily for 2x2 MIMO point-to-point or point-to-multipoint applications in the 3.5 GHz Citizens Broadband Radio Service (CBRS) frequency band. This antenna incorporates advanced low PIM, dual polarization technology that allows for the interoperability of two 2x2 radios with multiple transmit and receive path.

The small 5" x 4" x 1.5" flat panel limits the wireless infrastructure footprint and provides high gain for stable PtP or PtMP links. It can be used for indoor coverage for private LTE networks or outdoor small-cell applications. This antenna supports LTE deployments in the CBRS 3.5 - 3.8 GHz spectrum.

Rugged and Weatherproof:

The 2-port flat panel antenna features a heavy-duty UV-resistant plastic radome for all-weather operation. The heavy-duty, powder-coated mounting bracket is polarization adjustable between horizontal/vertical and ±45 slant polarization and allows installation with pipe diameter from 1.2" to 2". This CBRS flat panel antenna is built to withstand speeds of up to 130 mph and survive in a wide-range of challenging environments.


Features:

  • 2 x 2 MIMO – Multiple-Input and Multiple-Output
  • Dual ±45 slant polarization ports with integral N-female connectors in a single enclosure
  • UV-resistant radome and rugged mounting hardware for all-weather operation
  • Stable 10 dBi gain in a small-profile 5” x 4” x 1.5” form factor
  • Ideal for indoor coverage or outdoor small-cell applications for the CBRS band

Applications:

  • 3.5 GHz Citizens Broadband Radio Service (CBRS) applications
  • Wireless LAN systems & IEEE 802.16e applications
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • SOFDMA
  • Outdoor or indoor point-to-point (PtP) or point-to-multipoint (PtMP) in CBRS band
