  • KP Performance 3.5 to 3.8 GHz, 8.5 dBi, ±45 Slant Polarization, 4-Port Omni Antenna

KP Performance 3.5 to 3.8 GHz, 8.5 dBi, ±45 Slant Polarization, 4-Port Omni Antenna

  • SKU: KP-3QOMNI-8
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
US$‎400.00

Specifications KP-3QOMNI-8

Frequency Band3500 -3800 MHz
Polarization Type+/- 45° Slant
Gain8.5 dBi

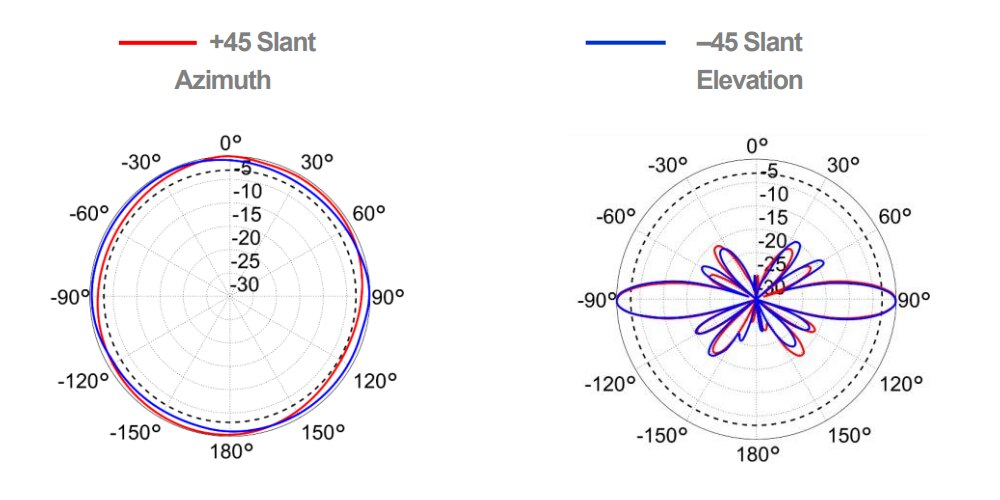

Vertical Beamwidth11°
Horizontal Beamwidth360°
Electrical Downtilt<1°
VSWR1.5 Typical | 1.7 max
Cross Polar Ratio10 dB
Port Isolation25 dB
Connector Type4 x Type N Female
Bracket Spec
Material Type Power Coated Galvanized Steel
Mounting Type Pipe Mount
Mounting pole diameter 40 mm – 89 mm | 1.6 in – 3.5 in
OMNI Dimensions
Dimension 6.3 in L x 6.3 in W x 28 in H
Weight 13.2 lbs

KP Performance KP-3QOMNI-8

3.5 to 3.8 GHz, 8.5 dBi, ±45 Slant Polarization, 4-Port Omni Antenna

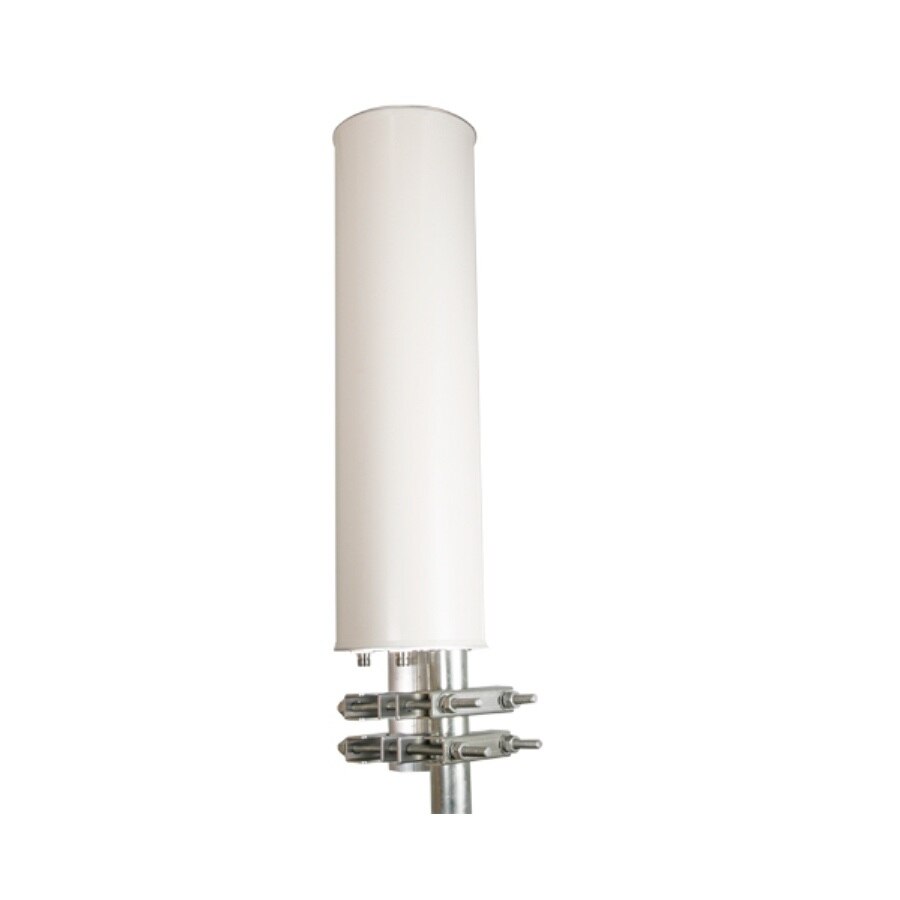

The KP Performance KP-3QOMNI-8 omni antenna combines four ports with dual ±45 slant polarization, high 8.5 dBi gain with a 360 degree beamwidth in a single enclosure with one mounting point. It is a professional quality antenna designed primarily for 4x4 or 2x2 MIMO point-to-point or point-to-multipoint applications in the 3.5 GHz Citizens Broadband Radio Service (CBRS) frequency band.

This antenna incorporates advanced low PIM, dual polarization technology that allows for the interoperability of one 4x4 radio or two 2x2 radios with multiple transmit and receive path. The small 28" omni limits the wireless infrastructure footprint and provides 360 degree coverage around the tower. This antenna supports LTE deployments in the CBRS 3.5 - 3.8 GHz spectrum.

Rugged and Weatherproof

The 4-port omni antenna features a heavy-duty UV-resistant plastic radome for all-weather operation. The heavy-duty, powder-coated mounting brackets allows installation with pipe diameter from 1.6" to 3.5". This CBRS OMNI antenna is built to withstand speeds of up to 130 mph and survive in a wide-range of challenging environments.


Features:

  • 4 x 4 MIMO – Multiple-Input and Multiple-Output
  • Four ±45 slant polarization ports with integral N-female connectors in a single enclosure
  • UV-resistant radome and rugged mounting hardware for all-weather operation
  • 0° fixed electrical downtilt

Applications:

  • 3.5 GHz Citizens Broadband Radio Service (CBRS) applications
  • Wireless LAN systems & IEEE 802.16e applications
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • SOFDMA
  • Point-to-multipoint (PtMP) requiring 360 degree of horizontal coverage
