  • KP Performance 400 MHz to 470 MHz Yagi Antenna, 10 dBi, Type N Female Connector, Pro-Series with Adjustable Polarization

KP Performance 400 MHz to 470 MHz Yagi Antenna, 10 dBi, Type N Female Connector, Pro-Series with Adjustable Polarization

  • SKU: KP-400SPY10
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
US$‎129.00

Specifications KP-400SPY10

Frequency Range400 MHz to 470 MHz
Polarization TypeHorizontal or Vertical
Gain10 dBi
Vertical Beamwidth55°
Horizontal Beamwidth70°
F/B Ratio17 dB
VSWR1.7:1 max
Connector TypeType N Female
Length38.4 in
Width16.5 in
Height2.4 in
Mounting Mast Daimeter0.75 to 3 in
Weight6 lbs (2.72 kg)

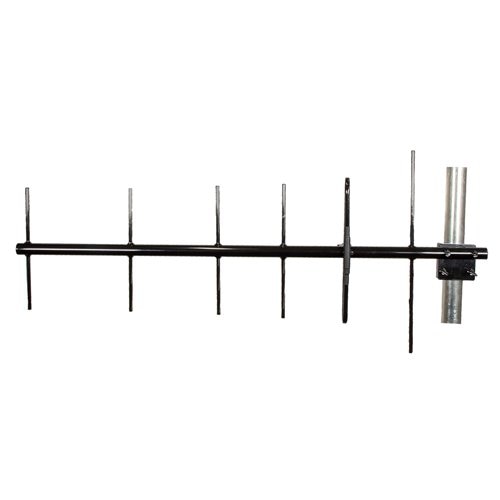

KP Performance KP-400SPY10

400 MHz to 470 MHz Yagi Antenna, 10 dBi, Type N Female Connector, Pro-Series with Adjustable Polarization

The KP Performance KP-400SPY10 400 MHz to 470 MHz Yagi antenna is designed for the most rugged conditions and ships the same day. This 400 MHz antenna provides 10 dBi of gain and adjustable polarization. Equipped with an N-Female connector, coaxial connections to a radio are simple and easy. The KP-400SPY10 is ideally suited for 400 MHz and 450 MHz bands. This 10 dBi antenna supports Land Mobile Radio, Canadian border areas, Public Safety, Industrial and Business applications.

Measuring 38.4 inches long, the KP-400SPY10 with N-female connectors from KP Performance is manufactured using robust 5/16” aircraft quality aluminum elements. The KP-400SPY10 elements are completely welded to a 1” boom and painted black. This ensures performance and survivability in the toughest environments.

KP-400SPY10 Yagi Antenna from KP Performance operating from 400 MHz to 470 MHz can cover all your needs for Land Mobile Radio and Utilities communications.

KP Performance 10 dBi 400 MHz 38.4 inch Yagi antennas are high-quality components backed by expert technical support and sales personnel. The KP-400SPY10 is in stock and ready to ship the same day.
