KP Performance Mimosa® C5c Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas

US$‎34.35 US$‎36.16
  • SKU: KP-5PDA-C5C
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: 179 In Stock    (updated live)
    10 In stock at College Station
    169 In stock at Lewisville TX
US$‎34.35 US$‎36.16

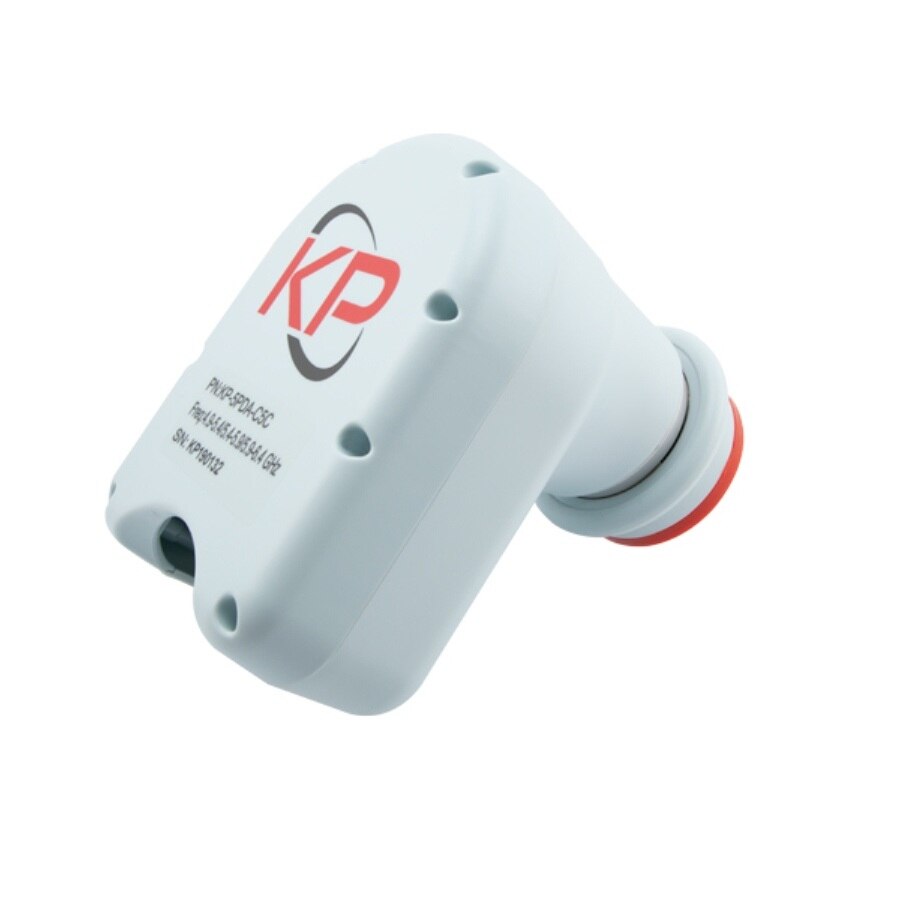

KP Performance KP-5PDA-C5C

Mimosa® C5c Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas

The KP-5DPA-C5c is a quick-connect adapter for use with KP 1ft and 2 ft ProLine Parabolic Antennas designed specifically for the Mimosa® C5c radio.

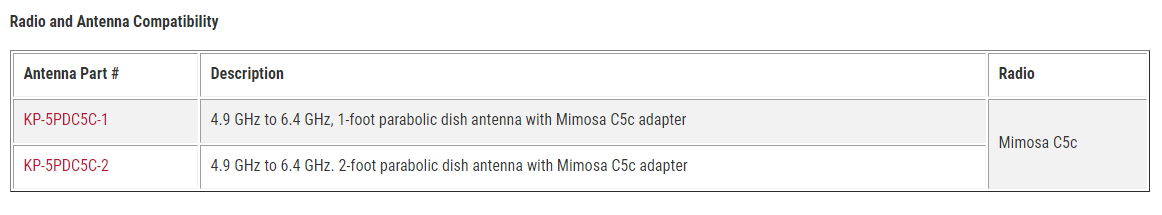

The KP-5DPA-C5c is a push-in adapter that provides simplified installation with patented, quick-connect waveguide technology that is both weatherproofed and cables-less reducing interference when used with KP's 5 GHz Proline Parabolics in point-to-point applications. The KP-5DPA-C5c is also sold in kits with ProLine 1 ft and 2 ft Parabolic antennas.


Features:

  • Simplified installation with quick-connect waveguide technology and two N-female connectors
  • Used with KP’s 5 GHz ProLine Parabolics for Point to Point Links
  • Adjustable horizontal/vertical or ±45∘ polarization
  • RF Connection: Quick-Connect Waveguide
  • Compatible Radios: Mimosa® C5c
  • Compatible Antennas: 1 and 2 ft. 5 GHz ProLine Parabolic and Horn Antennas

Specifications KP-5PDA-C5C

Antenna Connection Quick-Connect Waveguide
Frequency 4.9 – 6.4 GHz
Return Loss* 14 typ | 12 max
VSWR* 1.5 typ | 1.7 max
Port Isolation 30 dB typ | 25 dB max
Compatible Radios Mimosa® C5c
Compatible Antennas KP®: 1ft and 2ft 5 GHz ProLine Parabolic
Materials Aluminium Alloy, Rubber, Stainless Steel
Wind Velocity, Survival 201 km/h | 125 mph
Temperature Range -40° to +60° C | -40° to +140° F
Dimension 7.5 in L x 7.5 in W x 6.5 in H
Weight 1.4 lbs
