KP Performance Cambium® ePMP1000™, Force 300CSM™ and ePMP3000L™
Product Information

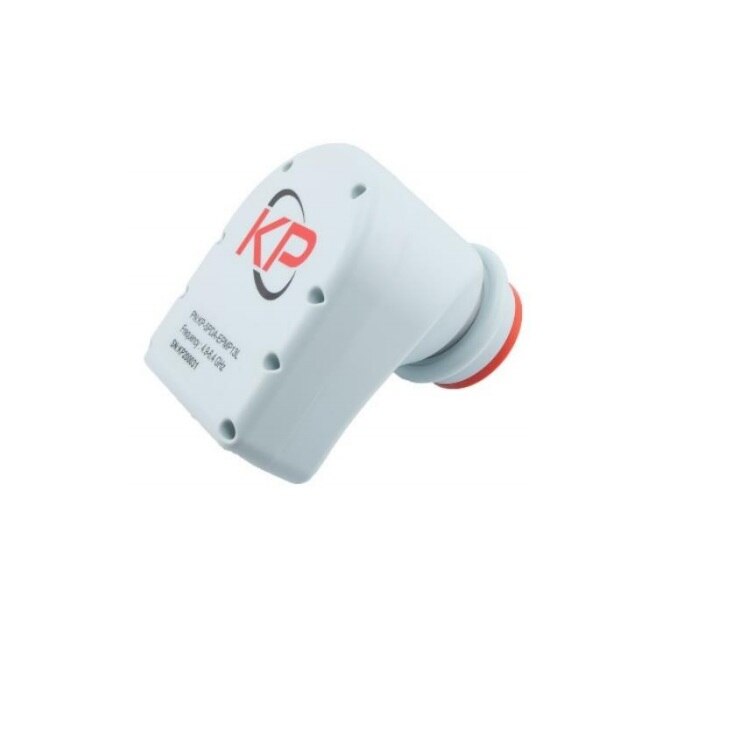

KP Performance KP-5PDA-EPMP13L
Cambium® ePMP1000, ePMP3000L, and Force 300CSM Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas
The KP-5PDA-EPMP13L is a quick-connect adapter for use with KP ProLine 5 GHz Parabolic and Horn Antennas that is designed specifically for Cambium® ePMP1000TM, ePMP3000LTM, Force 300CSMTM radios.
The KP-5PDA-EPMP13L is a push-in adapter that features simplified installation with patented, quick-connect waveguide technology to the antenna and a durable housing to snap in the radio without any additional cables or taping. The weatherproof adapter is built to withstand challenging environments subject to intense UV, rain, snow, and ice and is highly reliable over a longer product lifetime.

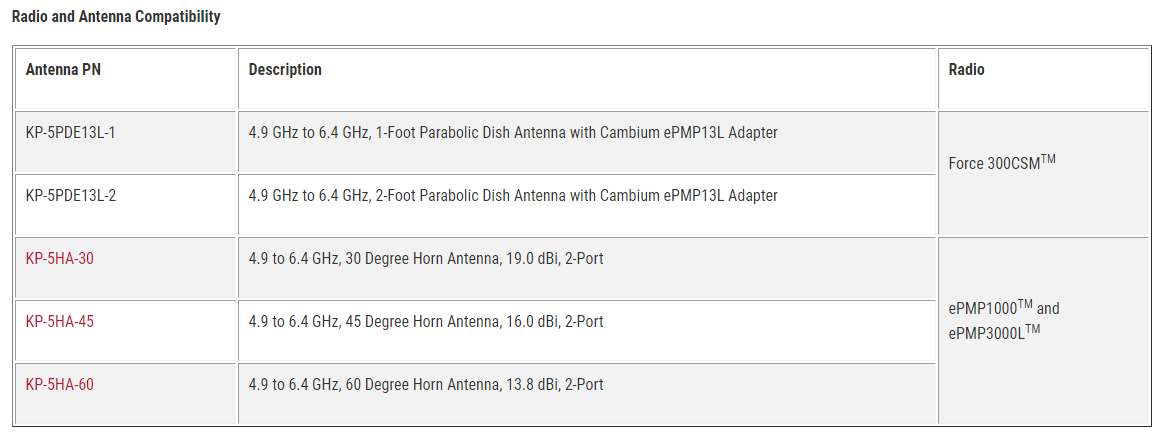

The adapter can be used in point-to-point applications with KP’s 5 GHz ProLine Parabolics and Cambium’s Force 300CSMTM or in point-to-multipoint applications with KP’s 5GHz ProLine Horns and Cambium’s ePMP1000TM and ePMP3000LTM. In both applications the antennas will improve link strength and reduce interference, allowing the radio to reach its highest modulation and throughput.
The KP-5DPA-EPMP13L is also is also available as a packaged kit with ProLine 1 ft. and 2 ft. parabolic antennas.
Features:
- RF Connection: Quick-Connect Waveguide
- Compatible Radios: Cambium® Force 300CSM™, ePMP1000™, ePMP3000L™
- Compatible Antennas: 1 and 2 ft. 5 GHz ProLine Parabolic and Horn Antennas
Specifications
Specifications KP-5PDA-EPMP13L
| RF connection | Quick-Connect Waveguide |
| Frequency | 4.9 – 6.4 GHz |
| Return Loss | 14 typ | 12 max |
| VSWR | 1.5 typ | 1.7 max |
| Port Isolation | 30 dB typ | 25 dB max |
| Compatible Radios | Cambium® ePMP1000TM, ePMP3000L TM, Force 300CSMTM |
| Compatible Antennas | KP® 5 GHz ProLine Parabolics and Horns |
| Wind Velocity, Survival | 201 km/h | 125 mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Dimension | 8 in L x 8 in W x 7 in H |
| Weight | 1.7 lbs |
