KP Performance Dual N-Type Quick Connect Adapter for 5 GHz ProLine Parabolic and Horn Antennas

US$‎39.08 US$‎41.14
  • SKU: KP-5PDA-N
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: 791 In Stock    (updated live)
    791 In stock at Lewisville TX
US$‎39.08 US$‎41.14

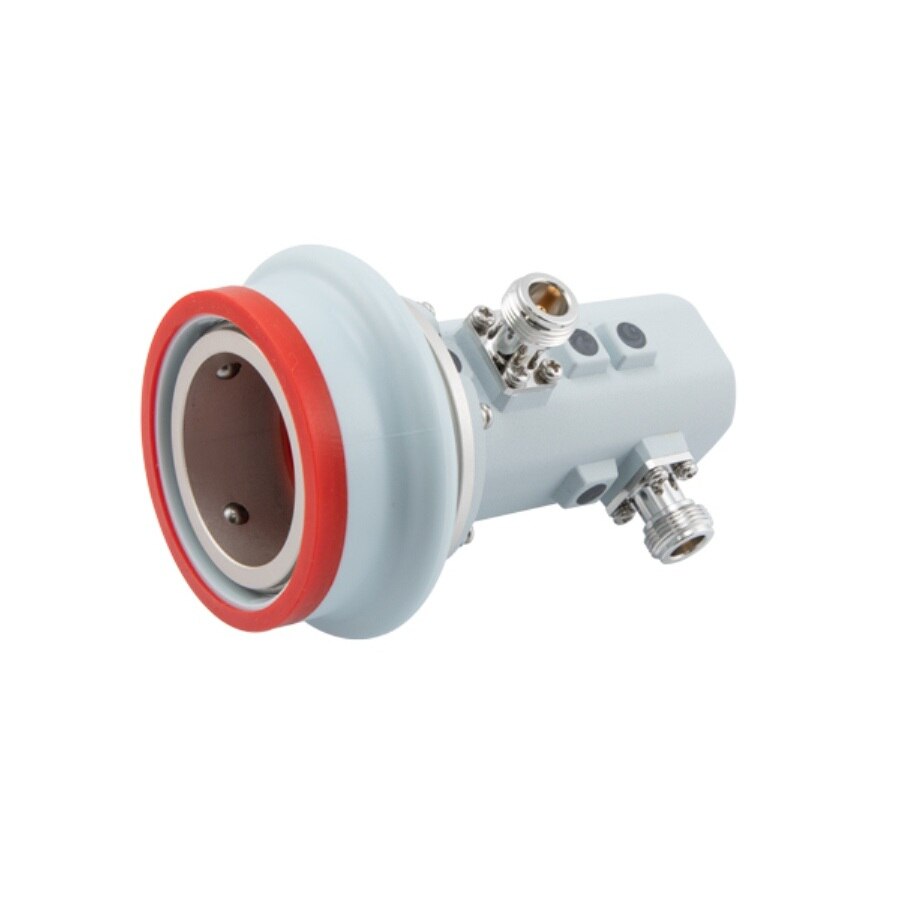

KP Performance KP-5PDA-N

Dual N-Type Quick Connect Adapter for 5 GHz ProLine Parabolic and Horn Antennas

The KP-5DPA-N is a quick-connect adapter for use with KP 1ft and 2 ft ProLine Parabolic Antennas designed for any connectorized 5 GHz radio.

The KP-5DPA-N is a push-in adapter that provides simplified installation with patented, quick-connect waveguide technology that is both weatherproofed and cables-less reducing interference when used with KP's 5 GHz Proline Parabolics in point-to-point applications. The KP-5DPA-N is also sold in kits with ProLine 1 ft and 2 ft Parabolic antennas.


Features:

  • Simplified installation with quick-connect waveguide technology and two N-female connectors
  • Used with KP’s 5 GHz ProLine Parabolics for Point to Point Links and KP’s ProLine Horns for Point to Multipoint Links
  • Adjustable horizontal/vertical or ±45∘ polarization

Specifications KP-5PDA-N

RF ConnectionQuick-Connect Waveguide
Compatible RadiosAny connectorized 5 GHz radio
Compatible Antennas1 and 2 ft. 5 GHz ProLine Parabolics
Connector Type 2 x N-type Female
Frequency 4.9 – 6.4 GHz
Return Loss* 14 typ | 12 max
VSWR* 1.5 typ | 1.7 max
Port Isolation 30 dB typ | 25 dB max
Materials Aluminium Alloy, Rubber, Stainless Steel
Wind Velocity, Survival 201 km/h | 125 mph
Temperature Range -40° to +60° C | -40° to +140° F
Dimension 7 in L x 4 in W x 4 in H
Weight 0.7 lbs
