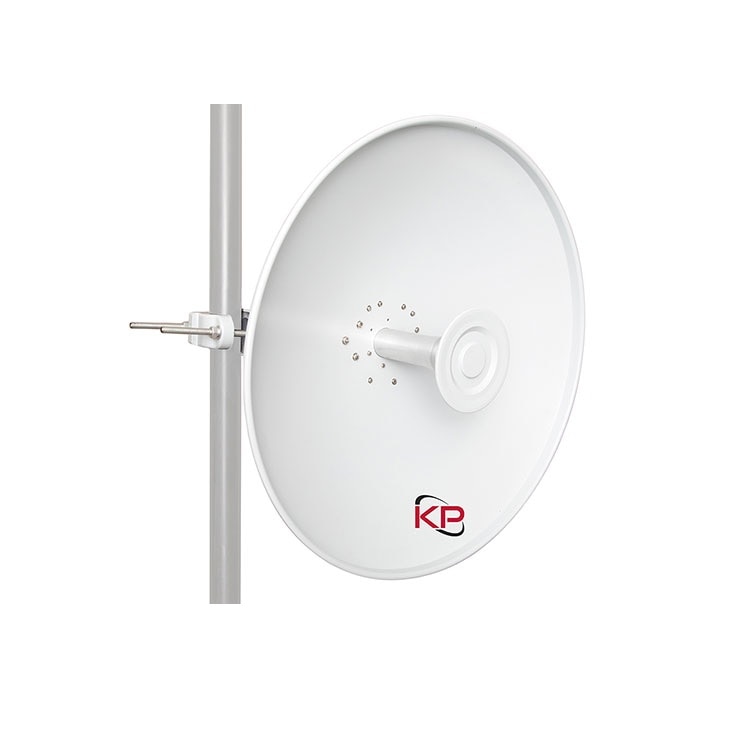

KP Performance 2ft 4.9-6.4GHz Parabolic Antenna w/ (2) x N-Type Connectors
- SKU: KP-5PDN-2
Product Information
KP Performance KP-5PDN-2
2-Ft Parabolic Antenna 4.9 GHz–6.4 GHz with 2 x N-type Connectors
KP Performance's new high-performance ProLine Parabolic Antennas are engineered to suppress side-lobes and back-lobes and are excellent at rejecting interference. Available in 1-foot & 2-foot diameters with gain performance of 24 dBi and 29 dBi respectively, these antennas are perfectly suited for high density point-to-point client-premises or backhaul applications.
These antennas maximize the potential of your radio by improving signal strength and reducing the noise floor in your link. The innovative design and assembly feature patent pending quick-connect waveguide technology that allows rapid installation in minutes. Customers can choose from a connectorized waveguide launcher with N-type female connectors or a weatherproofed, cable-less, push-in adapter designed specifically for the Mimosa® C5c™ radio.
Features:
- Simplified installation with patent pending quick-connect waveguide technology and built-in universal pipe-mount bracket for connectorized radios
- Optimized front to back and side lobes suppression exceeding ETSI 302 217 Class I eliminates interference
- Heavy-duty bracket with fine elevation and azimuth adjustment
- Snap-on radome sold separately (KP-5PDR-2)
Specifications
Specifications KP-5PDN-2
| Diameter | 25" (2-Foot) |
| Frequency Band | 4900-6400 MHz |
| Gain | 29 dBi |
| Polarization | H/V or ±45 Slant |
| Horizontal HPBW | 5° |
| Vertical HPBW | 5° |
| Front-to-Back Ratio @ 180°±30° | 40 dB |
| Cross-polarization Ratio over HPBW | 32 dB |
| VSWR | 1.5 |
| Return Loss | 14 dB |
| Port-to-Port Isolation | 30 dB |
| Impedance | 50 Ohms |
| Antenna Input | 2 x N-Type Female Connectors |
| Color | Grey |
| Wind Velocity, Operational | 145 km/h (90 mph) |
| Dimension | 30 in L x 30 in W x 12.5 in H |
| Weight | 20 lbs |
