KP Performance 4.9 GHz to 6.4GHz, 1-Foot Parabolic, Ubiquiti Rocket 5AC Lite Adapter

  • SKU: KP-5PDRACL-1
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
US$‎127.00

Specifications KP-5PDRACL-1

Frequency Range4.9 GHz to 6.4 GHz
Dish Diameter15" (1-Foot)
Polarization TypeH/V or ±45 Slant
Gain25 dBi
Vertical Beamwidth
Horizontal Beamwidth
Cross Polarization25 dB
F/B Ratio35 dB
Connector TypeUbiquiti® R5AC-Lite™ Quick Connect Adapter
Size14.3" W x 15.5" Lx 16.1" H
Mounting Mast Diameter0.75 to 4.5 inch

KP Performance KP-5PDRACL-1

4.9 GHz to 6.4GHz, 1-Foot Parabolic, Ubiquiti Rocket 5AC Lite Adapter

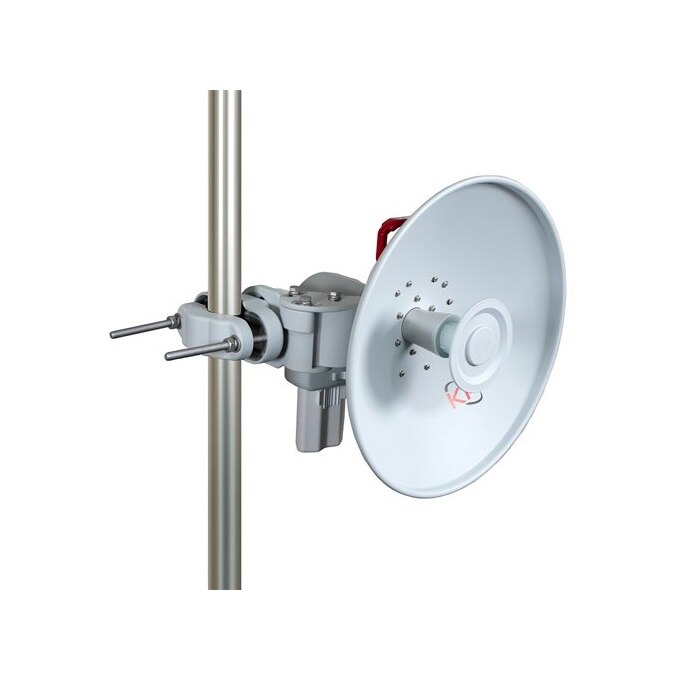

The KP-5PDRACL-1 is a 1-foot, 24 dBi parabolic antenna operating from 4.9 GHz to 6.4GHz. This antenna includes the KP-5PDA-R5ACL radio adapter which is designed specifically for the Ubiquiti Rocket 5AC-Lite radio.

This 1-foot 5GHz ProLine Parabolic Antenna is engineered to suppress side-lobes and back-lobes and is excellent at rejecting interference. With this antenna's over 24 dBi gain and 35 dBi front to back ratio, the operator will maximize the potential of the radio by improving signal strength and reducing the noise floor in the point-to-point (PtP) link.

Our parabolic antennas are perfectly suited for high density PtP client-premise equipment or backhaul applications. Their port isolation and cross polarization are over 25 dB which is essential in maximizing throughput from multi input multi output (MIMO) multiplexing schemes.

The KP-5PDRACL-1 features high-grade, powder-coated aluminum reflector, mounting brackets, and hardware which allow up to 20 degrees of azimuth and elevation mechanical tilt and supports pole diameters of 0.75 in to 4.5 in.

These rugged antennas are built a grade above the rest and rated to survive up to 125mph. The reflectors are made from dent-resistant, high grade aluminum that is powder-coated a light-grey color. The antennas integrated and removable red handle can be used to carry or hoist the antenna for safer installation.

The quick connect waveguide allows changing out the adapter for quick radio swap outs without the need to remove the antenna or tools. The antenna supports both Horizontal/Vertical and Dual +/- 45 Degree Slant polarization schemes which can be changed in the field through a simply rotation of the adapter.

The KP-5PDA-R5ACL is a push-in adapter that features simplified installation with patented, quick-connect waveguide technology to the antenna and a durable housing to snap in the radio without any additional cables or taping. The weatherproof adapter is built to withstand challenging environments subject to intense UV, rain, snow, and ice and is highly reliable over a longer product lifetime.


Features:

  • Stable gain and patterns over ultra-wide bandwidth of 4.9 - 6.4 GHz
  • Optimized F/B & side-lobe suppression minimizes interference
  • Quick connect waveguide allows rapid change of polarization and installation
  • Installs in minutes to reduce service calls and installation time
  • Integrated handle / hoisting hook for added safety and convenient installation
  • Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths
  • Adjustable horizontal / vertical or ± 45° slant polarization compatible with all 5 GHz CPE radios
  • Quick-connect waveguide allows for polarization to be adjusted and quick change of adapters without tools
  • Mounts to any size mast from 0.75" to 4.5"

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11n applications
  • Point-to-point (PtP) for backhaul or client premise equipment (CPE)
  • Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz), and up to 6.4GHz for world-wide market
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
  • Last-mile connection
