  • KP Performance 4.9 GHz to 6.4 GHz, 29dBi 2-Foot Parabolic Dish Antenna

KP Performance 4.9 GHz to 6.4 GHz, 29dBi 2-Foot Parabolic Dish Antenna

  • SKU: KP-5PDUIS5-2
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: Please Contact us for AvailabilityEmail me when this product is in stock!
US$‎184.00

Specifications KP-5PDUIS5-2

Frequency Range4900-6400
Dish Diameter25" (2-Foot)
Polarization TypeH/V or ±45 Slant
Gain29.5 dBi
Vertical Beamwidth4.7°
Horizontal Beamwidth4.7°
Cross Polarization32 dB
F/B Ratio40 dB
Mounting Type Pipe Mount
Dimension 30 in L x 30 in W x 12.5 in H
Weight 20 lbs
Antenna-to-Pipe Distance 172 mm | 6.8 in

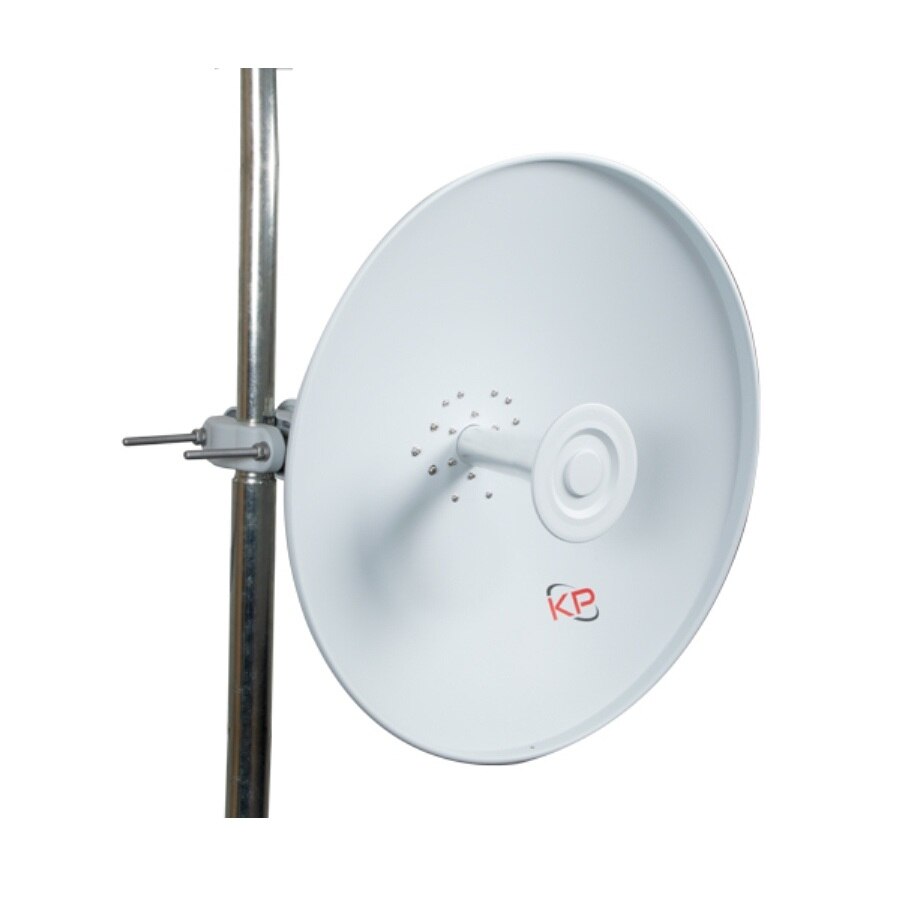

KP Performance KP-5PDUIS5-2

4.9 GHz to 6.4 GHz, 2-Foot Parabolic Dish Antenna with Ubiquiti®: PS-5AC, IS-5AC, IS-M5 Quick-Connect Adapter

This ProLine Parabolic Antenna is engineered to suppress side-lobes and back-lobes and are excellent at rejecting interference. These parabolic antennas maximize the potential of your radio by improving signal strength and reducing the noise floor in your link. Our parabolic antennas are perfectly suited for high density point-to-point client-premises or backhaul applications.

The KP-5PDUIS5-2 is a 2-foot, 29 dBi parabolic antenna operating from 4.9 GHz to 6.4 GHz. This antenna includes a specially designed quick-connect, weatherproof radio adapter specifically for the Ubiquiti® : PrismStationTM 5AC, IsoStationTM 5AC, IsoStationTM M5. The radio unit simply slots into place onto the adapter housing. The radio’s fast-release button makes removing the radio simple and fast. This parabolic antenna also features H/V or ±45° slant polarization options and boasts excellent front-to-back of 40 dB.


Features:

  • Stable gain over ultra-wide bandwidth of 4.9 GHz - 6.4 GHz
  • Optimized F/B & side-lobe suppression minimizes interference
  • Included Ubiquiti® : PS-5AC, IS-5AC, IS-M5 push-in adapter is fully weatherproofed
  • Patented Quick-Connect Waveguide technology
  • Installs in minutes to reduce service calls and installation time
  • Quick connect waveguide allows rapid change of polarization
  • Integrated handle / hoisting hook for added safety and convenient installation
  • Heavy-duty bracket with fine elevation and azimuth adjustment
  • Mounts to any size mast from 0.75" to 4.5"
