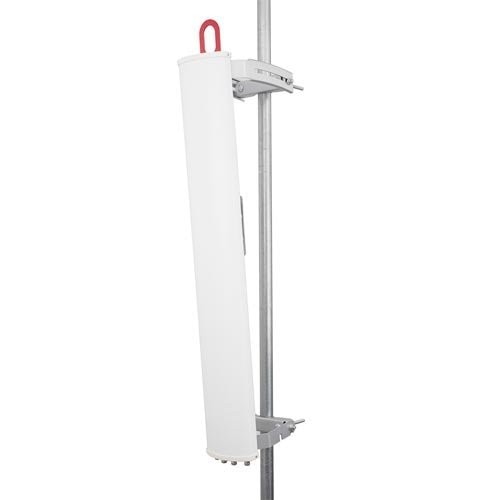

KP Performance 4.9 GHz to 5.9 GHz, 45° Sector Antenna, 20.5 dBi, 4-Port, ±45 Slant
- SKU: KP-5SX4-45
US$413.99 US$459.99
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-5SX4-45
4.9 GHz to 5.9 GHz, 45 Degree Sector Antenna, 20.5 dBi, 4-Port, ±45 Slant
This ProLine Sector Antenna is engineered to deliver high, stable gain over wide bandwidths and suppress side-lobes and back-lobes for mitigating inter-sector interference.
The KP-5SX4-45 is a 45 Degree, 20.0 dBi sector antenna operating from 4.9 GHz to 5.9 GHz. This antenna features 4 ports and ±45° slant polarization with excellent front-to-back of 40 dB.
Features:
- Stable performance over wide bandwidths with flat gain
- Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
- Ultra-wide bandwidths for world-wide markets
- Upper side lobe suppression reduces inter-cell interference
- Null fill improves coverage near the tower
- Side-lobe mitigation and improved front-to-back performance help reject interference
- Integrated hoisting hook for added safety and convenient installation
- Heavy-duty aluminum brackets with powder coated steel hardware
- Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
- Mounts to any size mast from 0.75" to 4.5"
Specifications
Specifications KP-5SX4-45
| Electrical | |
| Frequency Band MHz | 5400-5900 |
| Gain dBi | 20.5±0.3 |
| Polarization Slant | Slant (±45°) |
| Horizontal HPBW Degree | 43±1 |
| Horizontal Squint Degree | ±2 |
| Vertical HPBW Degree | 6.2±0.3 |
| Electrical Downtilt Degree | 0 |
| Front-to-Back Ratio @ 180°±30° dB | 38 |
| Upper Side Lobe Suppression (+20°) dB | 16 |
| Cross-polarization Ratio over HPBW dB | 19 |
| VSWR | 1.5 typ | 1.7 max |
| Return Loss dB | 14 typ | 12 max |
| Port-to-Port Isolation dB | 35 |
| Max. Input Power per Port W | 50 |
| Impedance Ohms | 50 |
| Mechanical | |
| RF Connector Type | N-Type Female |
| RF Connector Quantity | 4 |
| RF Connector Position | Bottom of radome |
| Electrical Grounding | RF connector grounded to reflector and mounting bracket |
| Radome Material | UV resistant PVC |
| Reflector Material | Anodized Aluminium |
| Ingress Protection | IP55 rain and dust resistant |
| Wind Load, frontal | 229N @ 160km/h | 51lbf @ 100mph |
| Max. Wind Speed | 160km/h | 100mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Bracket | |
| Material Type | Powder Coated High-Strength Aluminium |
| Mechanical Tilt (Degree) | -1 to +10 (Slot A) | -2 to +6 (Slot B) |
| Mounting Type | Pipe Mount |
| Mounting pole diameter | 19 mm – 114 mm | 0.75 in – 4.5 in |
| Antenna-to-Pipe Distance | 121 mm | 4.8 in |
| Bracket-to-Bracket Distance | 846 mm | 33.3 in |
| Dimensions | |
| Dimension | 56.5 in L x 9.5 in W x 5.25 in H |
| Weight | 18.8 lbs |
