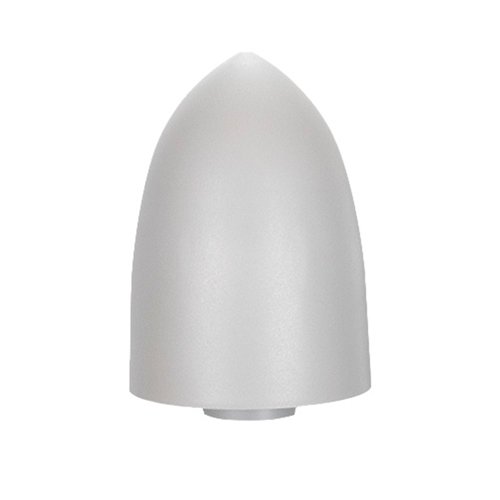

KP Performance 1.574 GHz to 1.61 GHz, 32 dBi GPS/GLNSS Timing Antenna
US$161.49 US$169.99
- SKU: KP-GPSL1-32-TF
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-GPSL1-32-TF
1.574 GHz to 1.61 GHz, 32 dBi GPS/GLNSS Timing Antenna
The KP-GPSL1-32-TF GLNSS Timing Antenna is a professional grade product used for advanced time and frequency system applications.
Housed in an IP67 rated high impact ASA and die cast aluminum housing it’s suitable for all outdoor and marine environments.
Features:
- High Selectivity Dual Filter RF Architecture
- Eliminates High Power RFI Operating within Multi-Located Base Station Environment
- Impact Resistant ASA Radome
- Rugged Die-Cast Aluminum Base
- Integrated Bulkhead, TNC Jack
- IP67 Rated
- ¾" NPT and 1"-14 Marine Mount Compatible
- UV Resistant/Cool Gray for Reduced Visibility
Applications:
- Network time Synchronization
- Precision frequency reference
Specifications
Specifications KP-GPSL1-32-TF
| Housing Plating/Color | Gray |
| Weight | 5 lbs. |
| Height | 4.88" |
| Base Diameter | 3.25" |
| Frequency Range | 1.574 to 1.61 GHz |
| Band Type | Single Band |
| Gain | 32 dBi |
| Radiation Pattern | Omni Directional |
| Out of Band Rejection | 70 dBi |
| Operating DC Voltage | 5.5 V |
| VSWR | 2.1 |
| Impedance | 50 dB |
| Current | 15 mA |
| Connector Type | TNC Female |
