KP Performance Dual Polarity 12dBi 65 Degree Sector Antenna
US$730.55 US$769.00
- SKU: KP-TWDP65S-12
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-TWDP65S-12
470 MHz-698 MHz, 65 Degree Sector Antenna, 12.0 dBi, 2-Port, H/V Pol

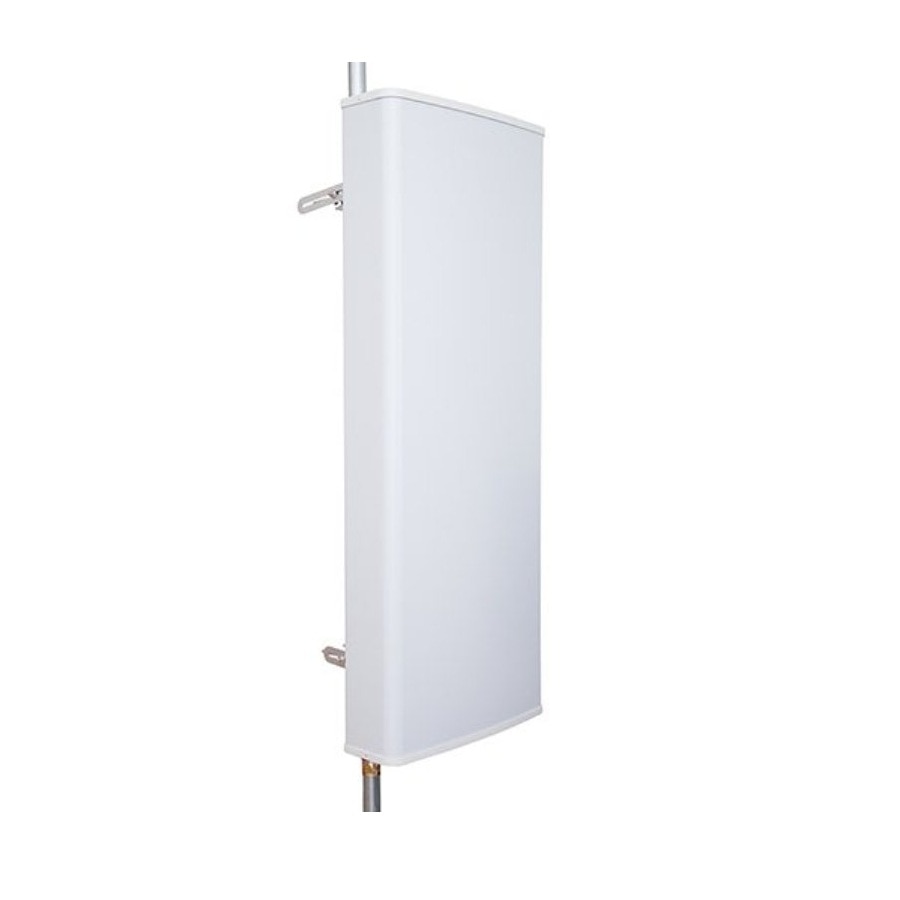

The KP Performance KP-TWDP65S-12 is a 470 MHz to 698 MHz, Dual Pol, 65-degree sector antenna designed for TV White Space (TVWS) applications. The 65 degree beamwidth provides optimized coverage area with improved capability of propagating through dense foliage and obstructions. The KP-TWDP65S-12 features 12 dBi of gain and operates from 470 MHz to 698 MHz.
Features:
- 470 MHz to 698 MHz Dual Pol TVWS sector antenna
- 12 dBi gain, 65 degree beamwidth
- 2x Type N female connectors
- Heavy duty mounting brackets & small footprint
- Built-in GPS Antenna (1x TNC Connector)
- Direct Mount for Redline Elipse Radios
Specifications
Specifications KP-TWDP65S-12
Electrical Specification | |
Frequency Band | 470-698 MHz |
Gain | 12±0.5 dBi |
Polarization | Horizontal/Vertical |
Horizontal HPBW | 65±5 Degree |
Horizontal Squint | ±2 Degree |
Vertical HPBW | 25±5 Degree |
Electrical Downtilt | 0 Degree |
Front-to-Back Ratio @ 180°±30° | 25 typ | 20 min dB |
Cross-polarization Ratio | 30 dB |
VSWR | 1.3 typ | 1.5 max |
Return Loss | 17 typ | 14 max dB |
Port-to-Port Isolation | 30 dB |
Max. Input Power per Port | 50 W |
Impedance | 50 Ohms |
Mechanical Specifications | |
RF Connector Type | N-Type Female |
RF Connector Quantity | 2 |
RF Connector Position | Bottom of radome |
Electrical Grounding | RF connector grounded to reflector and mounting bracket |
Radome Material | UV resistant PVC |
Ingress Protection | IP55 rain and dust resistant |
Max. Wind Speed | 160km/h | 100mph |
Temperature Range | -40° to +60° C | -40° to +140° F |
Bracket Specifications | |
Material Type | Powder Coated Galvanized Steel |
Mechanical Tilt (Degree) | ±15 |
Mounting Type | Pipe Mount |
Mounting pole diameter | 19 mm – 114 mm | 0.75 in – 4.5 in |
Antenna Dimensions | |
Dimension | 47.5 in L x 17.7 in W x 5.1 in H |
Weight | 25.3 lbs |
