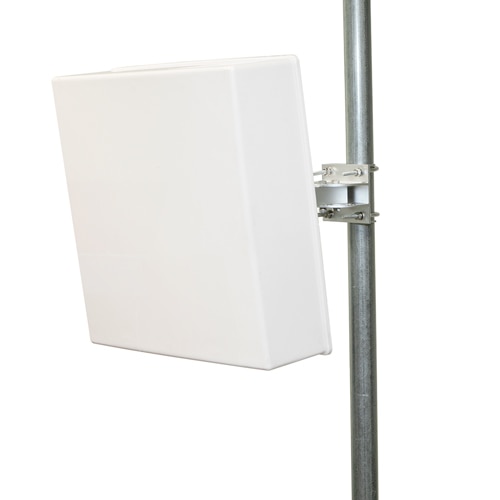

KP Performance 470 MHz-698 MHz, 9 dBi, 65 Degree Dual Polarity, Flat Panel Antenna

  • SKU: KP-TWDPFP9
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$‎125.00

Specifications KP-TWDPFP9

Electrical Specification
Frequency Band 470-698 MHz
Gain 9.0±1 dBi
Polarization Horizontal/Vertical
Horizontal HPBW 75±10 Degree
Horizontal Squint ±2 Degree
Vertical HPBW 70±10 Degree
Electrical Downtilt 1 Degree
Front-to-Back Ratio @ 180°±30° 20 typ | 15 min dB
Cross-polarization Ratio 25 dB
VSWR 1.5 typ | 2.0 max
Return Loss 14 typ | 12 max dB
Port-to-Port Isolation 25 dB
Max. Input Power per Port 50 W
Impedance 50 Ohms
Mechanical Specifications
RF Connector Type N-Type Female
RF Connector Quantity 2
RF Connector Position Bottom of radome
Electrical Grounding RF connector grounded to reflector and mounting bracket
Radome Material UV resistant ABS
Ingress Protection IP55 rain and dust resistant
Max. Wind Speed 210km/h | 130mph
Temperature Range -40° to +60° C | -40° to +140° F
Bracket Specifications
Material Type Powder Coated Galvanized Steel
Mechanical Tilt (Degree) ±15
Mounting TypePipe Mount or Wall Mount
Mounting pole diameter30 mm – 90 mm | 1.2 in – 3.5 in
Antenna Dimensions
Length 348 mm | 13.7 in
Width348 mm | 13.7 in
Height 130 mm | 5.1 in
Net Weight, with brackets 1.5 kg | 3.3 lb

KP Performance KP-TWDPFP9

470 MHz-698 MHz, 65 Degree Flat Panel Antenna, 9 dBi, 2-Port, H/V Pol


Features:

  • Stable 9 dBi gain in a small-form factor
  • Side lobe suppression and high front to back ratio
  • Polarization-Adjustable Pipe Mount Brackets
