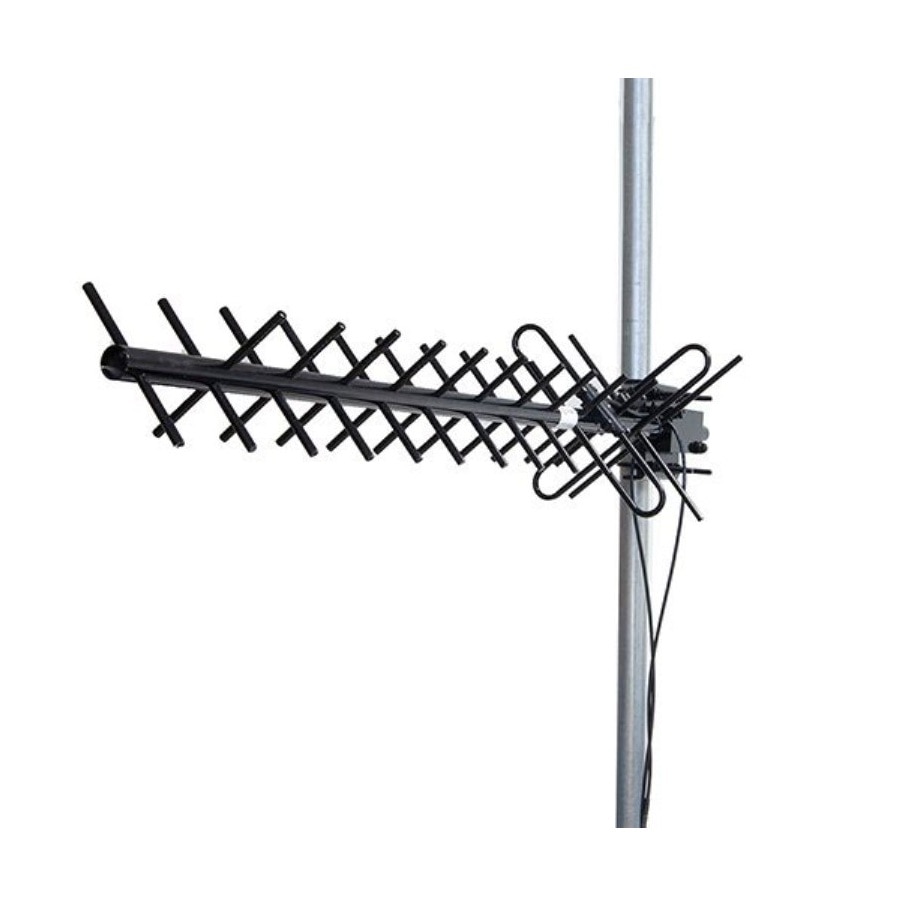

KP Performance 470-698MHz Dual Polarity 9dBi Yagi (2-pack)
- SKU: KP-TWDPY9
$207.89 $230.99
+ $44.46 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-TWDPY9 (2-pack)
470 MHz-698 MHz, Dual Polarization Log Periodic Antenna 9dBi
Features:
- Aircraft Quality 6061-T6 aluminium and compression crimped elements for optimum strength
- Corrosion, fade, and ice-build up resistance with a 5 year fade and salt guarantee
Specifications
Specifications KP-TWDPY9 (2-pack)
| Electrical Specification | |||
| Frequency Band | 470-550 MHz |
| |
| Gain | 7.5±1 dBi | 9±1 dBi | |
| Polarization | Horizontal/Vertical or ± 45 Slant | Horizontal/Vertical or ± 45 Slant | |
| Horizontal HPBW | 65±5 Degree |
| |
| Horizontal Squint | ±2 Degree |
| |
| Vertical HPBW | 65±5 Degree |
| |
| Electrical Downtilt | 0 Degree |
| |
| Front-to-Back Ratio @ 180°±30° | 10 dB | 10 dB | |
| Cross-polarization Ratio | 30 dB | 30 dB | |
| VSWR | 1.5:1 typ | 2:1 max | 1.5:1 typ | 2:1 max | |
| Return Loss | 14 typ | 10 max dB | 14 typ | 10 max dB | |
| Port-to-Port Isolation | 30 dB |
| |
| Max. Input Power per Port | 50 W | 50 W | |
| Impedance | 50 Ohms | 50 Ohms |
| Mechanical Specifications | |
| RF Connector Type | N-Type female on pigtails |
| RF Connector Quantity | 2 |
| RF Connector Position | Antenna boom |
| Electrical Grounding | RF connector grounded to reflector and mounting bracket |
| Material | 6061-T6 Aluminium |
| Surface Finish | Ice and UV Resistant Black Powder Coating |
| Max. Wind Speed | 160km/h | 100mph |
| Temperature Range | -40° to +60° C | -40° to +140° F |
| Ingress Protection | Ingress Protection |
| Bracket Specifications | |
| Material Type | Powder Coated Galvanized Steel |
| Mechanical Tilt (Degree) | ±15 |
| Mounting Type | Pipe Mount |
| Mounting pole diameter | 19 mm – 76 mm | 0.75 in – 3 in |
| Antenna Dimensions | |
| Length | 1100 mm | 43.3 in |
| Width | 370 mm | 14.6 in |
| Height | 370 mm | 14.6 in |
| Net Weight, with brackets | 2.5 kg | 5.5 lb |
