KP Performance 470-698 MHz, 65 Degree Sector Antenna, 12dBi, 2-Port, Vertical Polarity

US$‎549.41 US$‎578.33
  • SKU: KP-TWVP65S-12
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Availability: 96 In Stock    (updated live)
    96 In stock at Lewisville TX
US$‎549.41 US$‎578.33

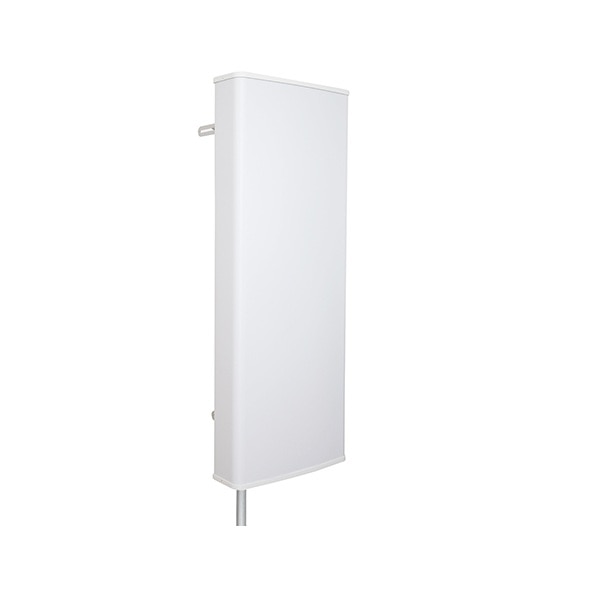

KP Performance KP-TWVP65S-12

470 MHz-698 MHz, 65 Degree Sector Antenna, 12dBi, 2-Port, Vertical Polarity

The KP Performance KP-TWVP65S-12 is a 470 MHz to 698 MHz, Vertically Polarized, 65-degree sector antenna designed for TV White Space (TVWS) applications. The 65 degree beamwidth provides optimized coverage area with improved capability of propagating through dense foliage and obstructions. The KP-TWVP65S-12 features 12 dBi of gain and operates from 470 MHz to 698 MHz.


Features:

  • 470 MHz to 698 MHz single vertically polarized TVWS sector antenna
  • 12 dBi gain, 65 degree beamwidth
  • 1x Type N female connectors
  • Heavy duty mounting brackets & small footprint
  • Built-in GPS Antenna (1x TNC Connector)
  • Direct mount for Redline Elipse radios

Specifications KP-TWVP65S-12

Frequency Range470 MHz to 698 MHz
Polarization TypeVertical
Gain12 dBi
Vertical Beamwidth28°
Horizontal Beamwidth65°
Electrical Downtilt
F/B Ratio25 dB
VSWR1.3
Cross Polar Ratio30 dB
Port Isolation30 dB
Connector Type1 x Type N Female
Built-in GPS AntennaL1/BI RHCP 3dBiC
Antenna Dimensions
Length 1240 mm | 48.8 in
Width 406 mm | 16 in
Height 130 mm | 5.1 in
Net Weight, with brackets 5.5 kg | 12.1 lb
Shipping Dimension,
Weight
50 in L x 21.3 in W x 5.1 in H
12.3 lbs
