2.3 GHz to 2.7 GHz, 65 Degree + 4.9 GHz to 6.4 GHz, 65 Degree Dual Band Sector Antenna, 8-Port, ±45 Slant

US$‎660.72 US$‎695.49
  • SKU: KPP-2S5SX8-65
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Availability: 80 In Stock    (updated live)
    80 In stock at Lewisville TX
US$‎660.72 US$‎695.49

Direct Ship Item

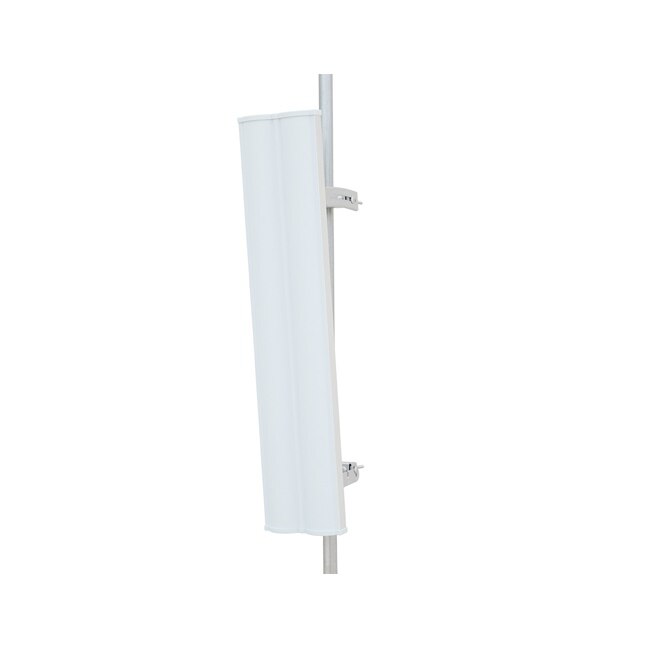

KP Performance KPP-2S5SX8-65

2.3 GHz to 2.7 GHz, 65 Degree + 4.9 GHz to 6.4 GHz, 65 Degree Dual Band Sector Antenna, 8-Port, ±45 Slant

This ProLine Dual Band Sector Antenna is engineered to deliver high, stable gain over wide bandwidths and suppress side-lobes and back-lobes for mitigating inter-sector interference. These dual frequency sectors combine two individual radiating systems within a single rugged radome. This unique arrangement allows complete dual-spectrum coverage while reducing leased space on the tower and installation costs.

The KPP-2S5SX8-65 is a 65 Degree dual band sector antenna operating from 2.3 GHz to 2.7 GHz and 4.9 GHz to 6.4 GHz. This antenna features gain performance of 17 dBi and 16.8 dBi respectively, 8 ports and ±45° slant polarization with excellent front-to-back of 33 dB and 35 dB.

Features:

  • Stable performance over wide bandwidths with flat gain
  • Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
  • Ultra-wide bandwidths for world-wide markets
  • Upper side lobe suppression reduces inter-cell interference
  • Null fill improves coverage near the tower
  • Side-lobe mitigation and improved front-to-back performance help reject interference
  • Integrated hoisting hook for added safety and convenient installation
  • Heavy-duty aluminum brackets with powder coated steel hardware
  • Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
  • Mounts to any size mast from 0.75" to 4.5"

Specifications KPP-2S5SX8-65

Mechanical
Frequency Range2.3 GHz to 2.7 GHz / 4.9 GHz to 6.4 GHz
Polarization Type45 Deg. Slant
Gain17 dBi / 16.8 dBi
Vertical Beamwidth8° / 8°
Horizontal Beamwidth65° / 55°
Electrical Downtilt0° / 0°
F/B Ratio33 dB / 35 dB
RF Connector TypeN-Type Female
RF Connector Quantity8
RF Connector PositionBottom of Radome
Electrical GroundingRF connector grounded to reflector and mounting bracket
Radome MaterialUV resistant PVC
Reflector MaterialAnodized Aluminium
Ingress ProtectionIP55 rain and dust resistant
Wind Load, frontal330N @ 160km/h | 74lbf @ 100mph
Max. Wind Speed160km/h | 100mph
Temperature Range-40° to +60° C | -40° to +140° F
Bracket
Material TypePowder Coated High Strength Aluminium
Mechanical Downtilt (Degree)-1 to +11 (Slot 1)
Mounting TypePipe Mount
Mounting pole diameter19 mm – 114 mm
Antenna-to-Pipe Distance121 mm
Bracket-to-Bracket Distance800 mm
Dimension 51 in L x 13 in W x 9 in H
Weight 25 lbs
