KP Performance 4.9-6.4 GHz, 16.5dBi 90 Degree Sector Antenna, 2-Port, Horizontal/Vertical Type N Female Connector

(0)No Reviews yet
US$‎398.04 US$‎418.99
  • SKU: KPP-5DP90S-HV
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

53 in stock
Lewisville TX
53 In stock

Product Information

KP Performance KPP-5DP90S-HV

4.9-6.4 GHz, 16.5dBi 90 Degree Sector Antenna, 2-Port, Horizontal/Vertical Type N Female Connector

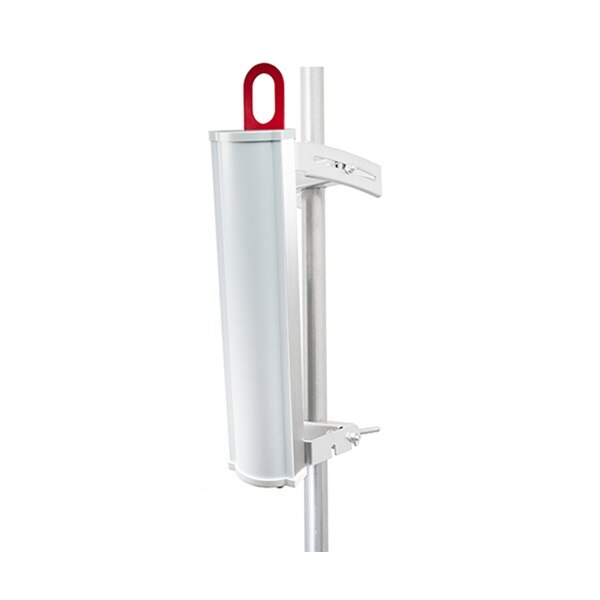

The KPP-5DP90S-HV is a 5 GHz ProLine Sector Antenna with a 3 dB beamwidth of 90°, high gain of 17.0 dBi, two ports with a horizontal/vertical polarization, and operates over an ultra-wide bandwidth of 4.9 GHz to 6.4 GHz. The sector antenna has an aesthetically small footprint and delivers consistent gain in its coverage area.

This sector antenna offers side lobes suppression and a front to back over 34 dB while retaining a high gain that outperforms asymmetric horn antennas of the same 3dB azimuth beamwidth. The highly suppressed side lobes and superior front to back allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments. The polarization is horizontal/vertical polarization, making the sector compatible with many 4.9 GHz to 6.4 GHz single or dual polarization 2 x 2 MIMO radios.

The antenna comes with rugged powder-coated aluminum brackets and features an integrated hoisting hook for added safety and convenient installation. The sector antenna features a heavy-duty UV-resistant ABS radome and anodized aluminum reflector for all-weather operation. This ProLine Sector antenna is packaged with a rugged universal radio bracket that is compatible with many popular Cambium, Ubiquiti, Mimosa, and Baicells radios and can be retrofitted for many more


Features:

  • High-performance gain and patterns that are stable over a wide bandwidth
  • Interference mitigation with highly suppressed side-lobes and superior front-to-back that allows channel reuse
  • Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
  • Ultra-wide bandwidths for world-wide markets
  • Integrated hoisting hook for added safety and convenient installation
  • Null fill improves coverage near the tower
  • Mechanical tilt from -9 to 20 Degrees

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11n applications
  • Point-to-multipoint (PtMP) requiring sectorial coverage
  • Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz), and up to 6.4GHz for world-wide market
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
  • Macro base station or small cell deployments

Specifications

Specifications KPP-5DP90S-HV

Frequency Range4.9 GHz to 6.4 GHz
Polarization TypeH/V
Gain17 dBi
Vertical Beamwidth
Horizontal Beamwidth90°
Electrical Downtilt
F/B Ratio34 dB
Connector Type2 x Type N Female
Operating Temperature-40 to +60 deg C
Weight12 lbs
Length21.4"
Width5"
Height2.7"
Mounting Mast Diameter0.75 to 4.5 in
