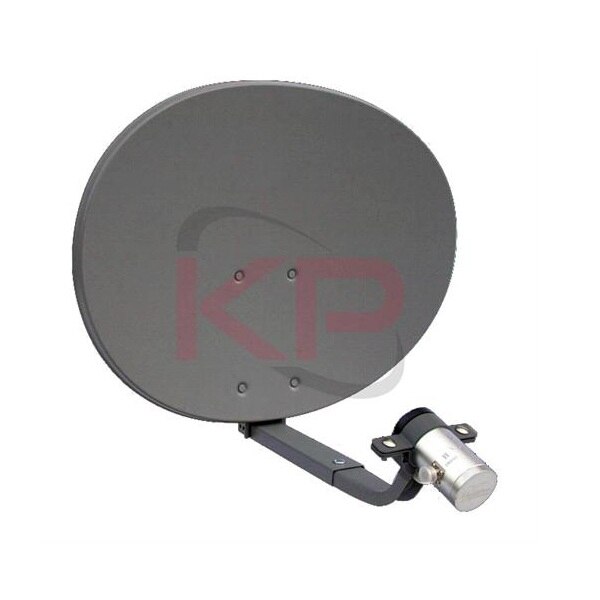

KP Performance 5 GHz 29 dBi Dual Pol Feed Horn Antenna (2 Pack)
- SKU: KPPA-29-5GHZDPFHA
- Manufacturer: KP Performance
- Data Sheet: Download
- Availability: 128 In Stock (updated live)128 In stock at Lewisville TX
Product Information
- Description
- Specifications
KP Performance KPPA-29-5GHZDPFHA
5 GHz 29 dBi Dual Pol Feed Horn Antenna (2 Pack Box)
Our dual-polarized feed horn reflector dish antennas are the ideal solution for point-to-point and customer premises equipment (CPE) applications. This KPPA-29-5GHZDPFHA 5 GHz feed horn antenna has an adjustable bracket that allows for vertical/horizontal or ±45-degree slant polarization schemes and delivers 27 dBi gain. This feedhorn antennas operate in the 4900-5900 MHz frequency range and provides VSWR as low as 1.5:1. KPPA-29-5GHZDPFHA can be used with radios such as Mimosa, Cambium, UBNT, MikroTik and any other 5 GHz dual-connectorized radio.
These feed horn reflector dish antennas deliver front-to-back and port isolation greater than 30 dB and cross-polarization discrimination greater than 24 dB. This 23" dish antenna features two Type-N female connectors and a J-arm pole mount. These antennas are built to sustain high-winds and resist sun-fade and rusting. They can also be special ordered with a company logo added to the dish face.
WIND LOADING SPECS:
Wind Speed | Load On Antenna | Load (Newtons) |
60 Kmph | 14.0 lbs | 62.5 N |
80 Kmph | 25.0 lbs | 111.0 N |
100 Kmph | 39.0 lbs | 173.5 N |
120 Kmph | 56.2 lbs | 249.8 N |
140 Kmph | 76.4 lbs | 340.0 N |
- Powder coated to prevent salt and sun fade
- Comes in a 2 or 4 pack for cost effective shipping and handling
- Sleek design, allowing these to be installed on clients homes for a higher gain
- 112 of these will fit on a standard pallet
- Low wind loading for mounting on towers for point to point shots
- This dish can also utilize a Canopy Claw mount, Nanostation and Loco radio mounts.
Specifications KPPA-29-5GHZDPFHA
Frequency | 4900-5900 MHz |
Polarization Type | +- 45 degree slant OR Horizontal / Vertical |
Gain | 27 dBi |
Beamwidth 3dB | 6.5 ° |
VSWR | < 1.5:1 |
Cross pol rejection | > 24 dB |
F/B Ratio | > 32 dB |
V/H Port Isolation | > 20 dB |
Input Power | 25 W max per port |
Input Impedance | 50 Ohms |
Connector Type | Type N Female x 2 |
Operating Temperature | -40° to +60° C / +140° F |
Rated Wind Velocity | 160 km/h / 100 mph |
UV Protection | UV resistant powder coat |
Ingress Protection | IP55 rain resistant |
Weight, Product | 8.5 lb |
Mounting Method | Carriage bolts |
Mounting pole dia | 1¼" – 4" |
Surface Finish | Matte powder coat |
Dimensions | 23 x 18 x 15” |
Lightning Protection | Direct Ground |
