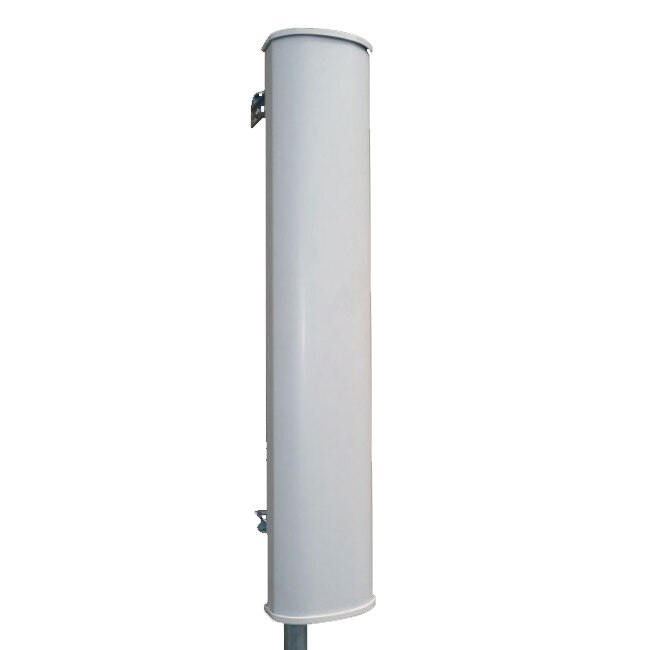

Kp Performance 2 GHz 120° 15 dBi ± 45 Degree Slant Sector GEN III With Radio Case

(0)No Reviews yet
US$‎404.69 US$‎425.99
  • SKU: KP-2DP120S-45-WC
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

KP Performance KPPA-2GHZDP120S-45-WC

2 GHz 120° 15 dBi ± 45 Degree Slant Sector GEN III With Radio Case / Cables Included


Features

  • 2GHz ± 45 Degree Slant Dual Pol 15 dBi 120 degree sector with 2 N connection with radio case.
  • Metal case covers up the N connections on the sector and radio.
  • Case is designed to work with ePMP and UBNT rocket radios. Functional mounting bracket.
  • Flexible LMR200 cables provided.
  • Stainless steel hardware.
  • Cost effective all in one Antenna solution with radio casing attached.

KP Performance Antennas is producing the product leading dual pol sector antennas out there today. Our KP sectors will provide you the consistent coverage you need to offer quality service. The sector is specifically designed for customer deploying 45 degree slant radios. The KPPA-2GHZDPS90 & KPPA-2GHZDPS65 antennas comes with heavy duty mounting brackets with an easy attach system, stainless steel hardware and two shielded LMR 200 N to N pigtails for increased performance. These sectors have an exceptional F/B ratio and the performance you have come to expect from KP Performance Antennas.

Specifications

Specifications KPPA-2GHZDP120S-45-WC

Part NumberKPPA-2GHZDP120S-45
Electrical
Frequency range2400-2500 MHz
Polarization±45° slant
Gain14.2 dBi
Azimuth 3dB beamwidth120 °
Elevation 3dB beamwidth9.8 °
Electrical Downtilt1.8 °
VSWR< 1.7:1
Return loss> 13 dB
F/B ratio> 20 dB
Cross-pol ratio> 21 dB
Port to port isolation20 dB
Input power50 W max per port
Impedance50 Ω
Connector TypeType N Female x 2
Mechanical
Dimensions32 x 12 x 12”
Weight21 lb
Mounting methodCarriage bolts
Mounting pole dia1¼” - 4”
Surface FinishMatt powder coat
Environmental
Temperature range-40° to +60° C / +140° F
Wind speed160 km/h / 100 mph
UV protectionUV resistant UPVC
Ingress protectionIP55 rain resistant
