Product Information

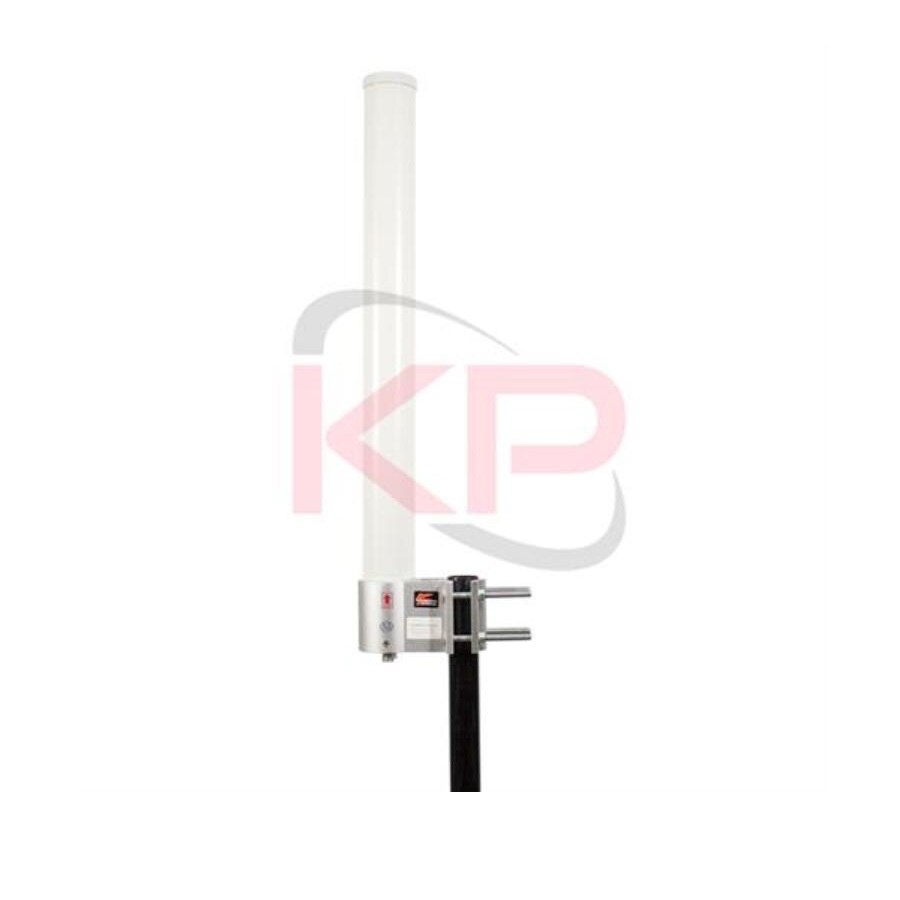

KP Performance KPPA-3GHZ-DPOMA

3 GHz 13 dBi Dual Pol H/V Omni Antenna

The KP Performance KPPA-3GHZ-DPOMA is a 3 GHz 13 dBi dual polarized H/V Omni antenna (radio case & cables NOT included). Using an omni antenna like this is a practical solution when you are setting up a new tower and cannot justify the cost of putting up 3, 4 or more radios and sectors.

If you only require a radius of 5 to 6 miles, the KPPA-3GHZ-DPOMA omni antenna may be the solution you are looking for. This omni antenna utilizes dual polarized H/V and works well with Cambium and UBNT radios. This Omni antenna is equipped with a versatile pipe-to-pipe style mount. These dual pol H/V omnis will provide you a very consistent pattern with no null zones.

NOTE: Radio case can be taken off by removing 4 small screws. Case will fit Cambium ePMP or Ubiquiti Rocket Radio


Features:

  • Out performs our competitors by 1 to 3 dBi
  • Functional easy-to-install mounting bracket
  • Flexible LMR 200 cables provided
  • Stainless steel hardware
  • Cost effective all-in-one Omni Antenna solution with radio casing attached

Specifications

Specifications KPPA-3GHZ-DPOMA

Frequency Range:3.3 GHz to 3.8 GHz
Polarization Type:Horizontal/Vertical
Gain:13 dBi
Vertical Beamwidth:
Horizontal Beamwidth:360°
Electrical Downtilt:
VSWR:2:1
Cross Polar Ratio:20 dB
Port Isolation:30 dB
Connector Type:2 x Type N Female
Dimension 38 in L x 6 in W x 6 in H
Weight 10 lbs
