KP Performance 3 GHz 25.5 dBi Dual Pol Feed Horn Antenna - (4-Pack)
US$564.30 US$594.00
- SKU: KPPA-3GHZFHLD-4P
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KPPA-3GHZFHLD-4P

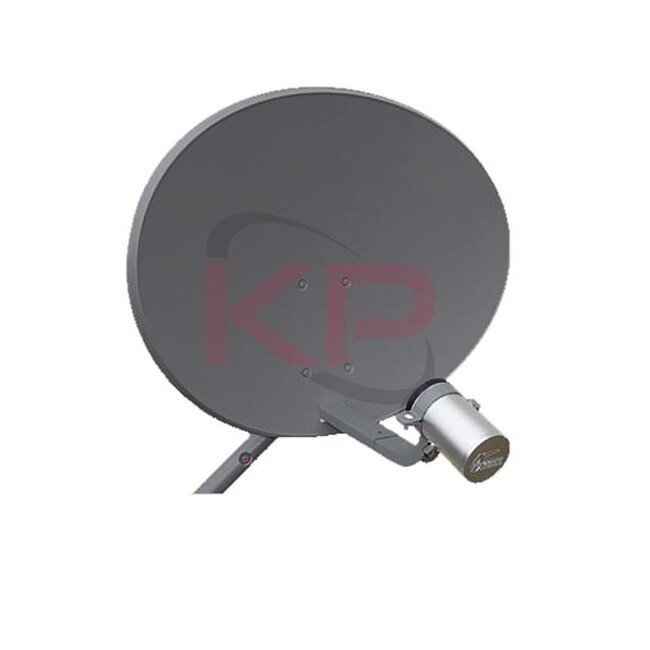

3 GHz 25.5 dBi Dual Pol Feed Horn Antenna + Large Dish- 4 Pack Box
Whether you need an this antennas for +- 45 degree slant or dual Horz. / Vert. this antenna can do both.By turning the feed horn 45 degrees either way the exact same antenna can be adjusted for both polarities.
These feed horn reflector dish antennas deliver a 32 dB front-to-back and port isolation greater than 30 dB and cross-polarization discrimination greater than 20 dB. This 27.5" dish antenna features two Type-N female connectors and a J-arm pole mount. These antennas are built to sustain high-winds and resist sun-fade and rusting. They can also be special ordered with a company logo added to the dish face.
Features:
- Powder coated to prevent salt and sun fade
- Sleek design, allowing these to be installed on clients homes for a higher gain
- This dish can also utilize a Canopy Claw mount, Nanostation and Loco radio mounts.
Specifications
Specifications KPPA-3GHZFHLD-4P
| Electrical | |
| Frequency range | 3300-3800 MHz |
| Polarization | V+H or +-45° slant |
| Gain | 25.5 dBi |
| Beamwidth 3dB | 9.8° |
| VSWR | < 1.5:1 |
| Return loss | > 14 dB |
| F/B ratio | > 32 dB |
| Cross pol rejection | > 25 dB |
| V/H port isolation | > 20 dB |
| Input power | 25 W max per port |
| Impedance | 50 Ω |
| Connector Type | Type N Female x 2 |
| Mechanical | |
| Dimensions | 25.5 x 22 x 27” |
| Weight | 13 lb |
| Mounting method | Carriage bolts |
| Mounting pole dia | 1¼” – 4” |
| Surface Finish | Matt powder coat |
| Environmental | |
| Temperature range | -40° to +60° C / +140° F |
| Wind speed | 160 km/h / 100 mph |
| UV protection | UV resistant powder coat |
| Ingress protection | IP54 rain resistant |
