Product Information

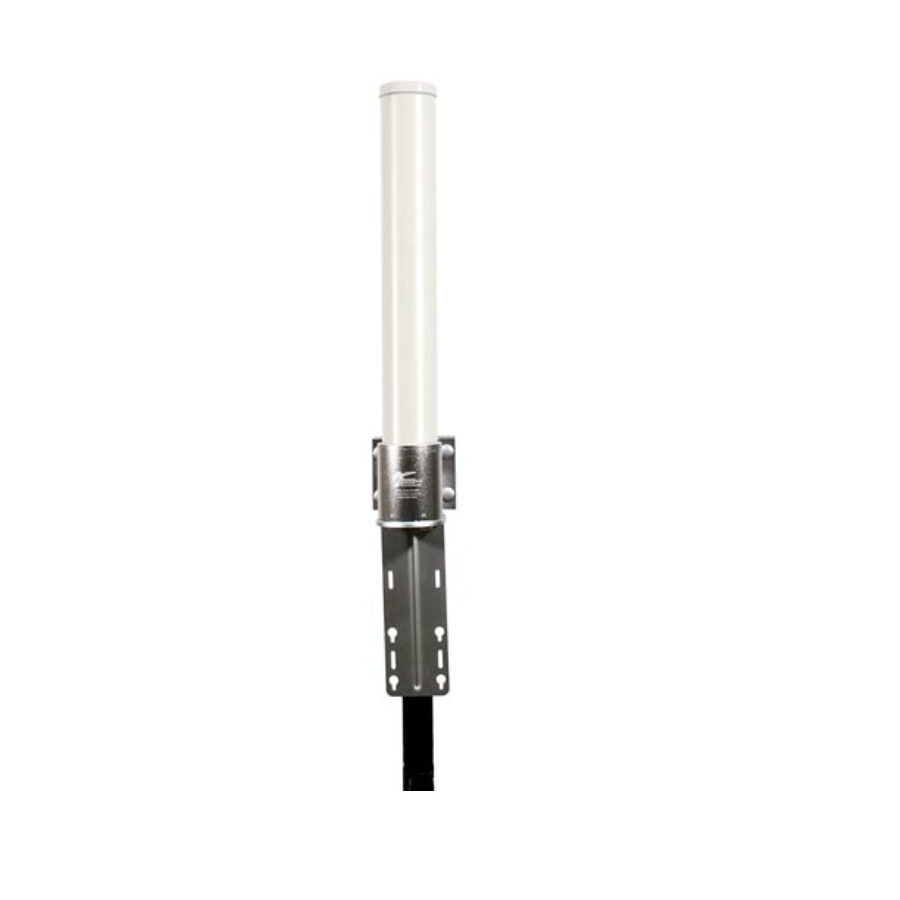

KP Performance KPPA-5GHZ-DPOMA-MT
5 GHz 13 dBi Dual Pol H/V Omni Antenna with PMP Mount (Cables Included)
The KPPA-5GHZ-DPOMA-MT is a 5 GHz 13 dBi dual polarized H/V Omni antenna with an integrated Cambium PMP radio mount. Using an omni antenna like this is a practical solution when you are setting up a new tower and cannot justify the cost of putting up 3, 4 or more radios and sectors.
If you only require a radius of 5 to 6 miles, the KPPA-5GHZ-DPOMA-MT omni antenna may be the solution you are looking for. This omni antenna utilizes dual polarized H/V and works well with the Cambium PMP-series equipment. This Omni antenna is equipped with a versatile pipe-to-pipe style mount. These dual pol H/V omnis will provide you a very consistent pattern with no null zones.
Features:
- Metal case protects your RF connections
- Out performs our competitors by 1 to 3 dBi
- Functional easy-to-install mounting bracket
- Flexible LMR 195 cables provided
- Stainless steel hardware
- Cost effective all in one Omni Antenna solution with specially designed PMP mount attached
NOTE: Radio case can be taken off by removing 4 small screws. Case will fit Cambium PMP or Ubiquiti Rocket Radio
Specifications
Specifications KPPA-5GHZ-DPOMA-MT
| Frequency Range | 5.15 GHz to 5.9 GHz |
| Polarization Type | Horizontal/Vertical |
| Gain | 13 dBi |
| Vertical Beamwidth | 6.5° |
| Horizontal Beamwidth | 360° |
| Electrical Downtilt | 2° |
| VSWR | 2:1 |
| Cross Polar Ratio | 20 dB |
| Port Isolation | 30 dBv |
| Connector Type | 2 x Type N Female |
| Dimension | 28 in L x 7.5 in W x 6 in H |
| Weight | 17 lbs |
