KP Performance 5GHz 33dBi Dual Pol Boomerang Feed Horn Antenna (4 Pack)

(0)No Reviews yet
US$‎535.80 US$‎564.00
  • Manufacturer: KP Performance

Out of Stock

Will not ship till mid May

Product Information

KP Performance KPPA-5GHZFHLD-4P

5 GHz 30.5 dBi Dual Pol Feed Horn Antenna (4 Pack Box)

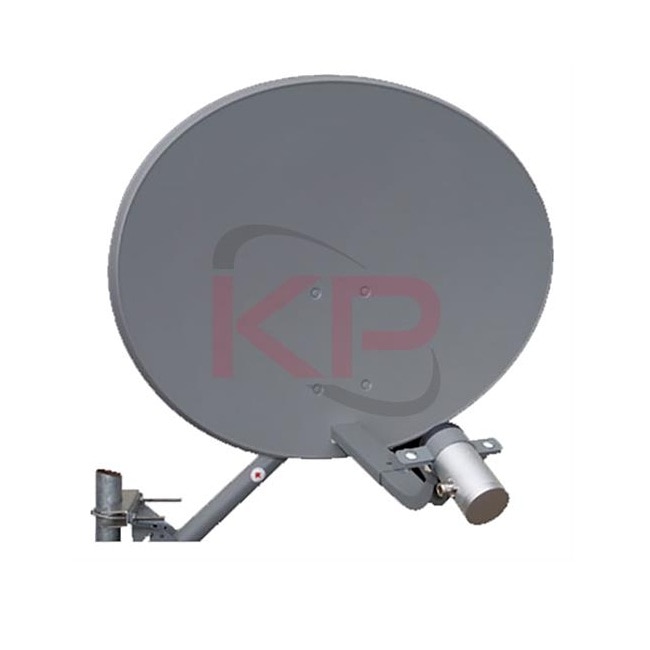

Our KPPA-5GHZFHLD-4P dual-polarized feed horn reflector dish antennas are the ideal solution for point-to-point and customer premises equipment (CPE) applications. This 5 GHz feed horn antenna has an adjustable bracket that allows for vertical/horizontal or ±45-degree slant polarization schemes and delivers 30.5 dBi gain. This feedhorn antennas operate in the 4900-5900 MHz frequency range and provides VSWR as low as 1.5:1. It can be used with radios such as Mimosa, Cambium, UBNT, MikroTik and any other 5 GHz dual-connectorized radio.

These feed horn reflector dish antennas deliver front-to-back and port isolation greater than 30 dB and cross-polarization discrimination greater than 24 dB. This 28" dish antenna features two Type-N female connectors and a J-arm pole mount. These antennas are built to sustain high-winds and resist sun-fade and rusting. They can also be special ordered with a company logo added to the dish face.


Specifications KPPA-5GHZFHLD-4P

Frequency Range:4.9 GHz to 5.9 GHz
Polarization Type:H/V or 45 Deg. Slant
Gain:30.5 dBi
Vertical Beamwidth:4.1°
Horizontal Beamwidth:4.1°
F/B Ratio:32 dB
Cross Polar Ratio:24 dB
Port Isolation:20 dB
Connector Type:2 x Type N Female
