Cambium Radio Reflector Dish for 2 GHz, 3 GHz, 5 GHz Radios SINGLE Reflector Dish
- SKU: RK24EWIFIDBI-2
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance RK24EWIFIDBI-2
KP Performance Cambium Radio Reflector Dish - 4 Pack Box

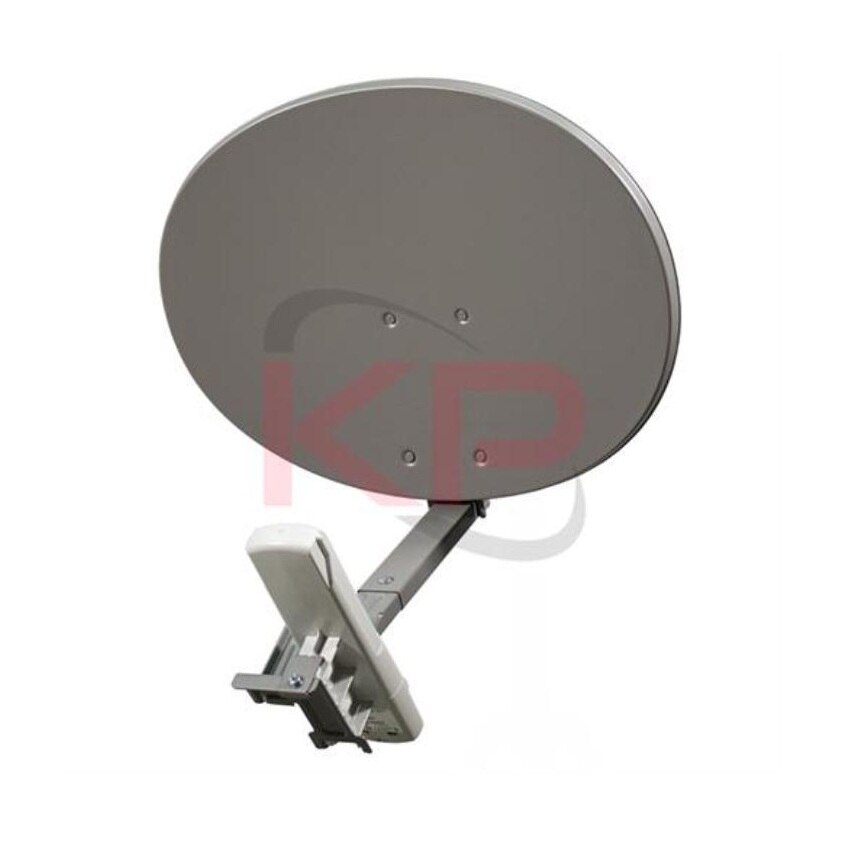

The KP Performance RK24EWIFIDBI-2 is a Single-pack of our standard size 23" reflector dish antennas with a metal radio mount specially designed for Cambium Canopy FSK and 450 2 GHz, 3 GHz and 5 GHz radios.
Our 23" RK24EWIFIDBI-2 elliptical reflector is made out of powder coated steel for a much more durable product. Our reflector dish also features an integral skew adjustment in addition to the elevation adjustment to help with complicated installations. The KP Performance SM mount aka "the claw" has been designed to allow for extremely easy installation and removal of the Cambium SM. As well, the UV protected plastic "claw" mount is made of the same plastic material as the Cambium SM radios so it's capable of withstanding all weather conditions. Our reflectors come in a four pack, eliminating the huge cost of shipping reflectors. The box size is only 24x21x9 inches and weighs only 38 lbs. This also allows for cost effective pallet shipping with our standard size pallet of 80 total reflector kits at a size of 45 x 45 x 51 inches at 805 pounds. Full pallet of 32 boxes is 45 x 45 x 78 at 1,265 pounds.
Features:
- Polarization: Enter D for dual-slant +/-45 degree polarized
- Designed for Cambium 2 GHz, 3 GHz and 5 GHz radios
- Gain: 20 dBi
- Beamwidth: 6 degrees
- Center Line: Height to center of antenna
- Azimuth: Direction of antenna in degrees clockwise from North
- Elevation Angle: degrees of tilt
- Packaged in a 4-pack for cost effective shipping and deployment (128 fit on a standard pallet)
- The claw Radio mount, for easier installation of the radio Canopy radio
- ROHS compliant Out performs any reflector on the market
- This dish can also utilize a Nanostation, Loco and all of our feedhorn antennas mounts
Specifications
Specifications RK24EWIFIDBI-2
WIND LOADING SPECS | ||
Wind Speed | Load On Antenna | Load (Newtons) |
60 Kmph | 14.0 lbs | 62.5 N |
80 Kmph | 25.0 lbs | 111.0 N |
100 Kmph | 39.0 lbs | 173.5 N |
120 Kmph | 56.2 lbs | 249.8 N |
140 Kmph | 76.4 lbs | 340.0 N |
DIMENSION | ||
Length | 23 in | |
Width | 18 in | |
Height | 1 in | |
Weight | 41 lbs |
Electrical | |||
Frequency Band | 2GHz | 3GHz | 5GHz |
Reflector Gain | 19±0.5 dBi | 21±0.5 dBi | 25±0.5 dBi |
Polarization | Slant or H/V | Slant or H/V | Slant or H/V |
Horizontal HPBW | 12 Degree | 9 Degree | 6 Degree |
Vertical HPBW | 15 Degree | 12 Degree | 9 Degree |
Front to Back Ratio | 22 dB | 24 dB | 25 dB |
Mechanical | |
Electrical Grounding | Reflector grounded to mounting bracket |
Surface Finish | UV resistant matt powder coat |
Wind Load, frontal | 340N @ 140km/h | 76 lbf @ 87mph |
Max. Wind Speed | 160km/h | 100mph |
Mounting Type | J-Arm mount in kit |
Reflector Dimensions | |
Dimension | 25 in L x 21 in W x 9 in H |
Weight | 41 lbs |
