KP Performance Reflector Dish for Ubiquiti 2GHz, 3GHz, 5GHz Radios (4 Pack Box)

(0)No Reviews yet
  • SKU: UB24EWIFIDBI
  • Manufacturer: KP Performance

Out of Stock

Product Information

KP Performance UB24EWIFIDBI (4 Pack Box)

Reflector Dish for Ubiquiti 2 GHz, 3 GHz, 5 GHz Radios (4 Pack Box)

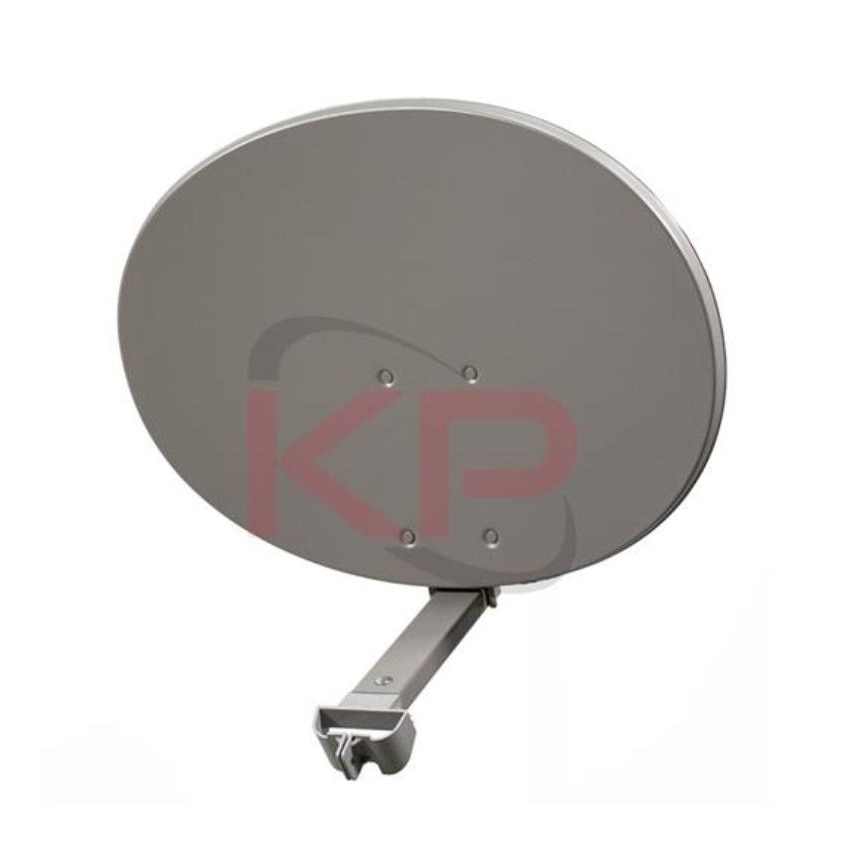

The KP Performance UB24EWIFIDBI is a Ubiquiti compatible 23" reflector dish antenna for NanoStations and Loco M series 2 GHz, 3 GHz and 5 GHz radios.


Features:

  • Out performs Nano bridge antennas
  • Packaged in a 4 pack for cost effective shipping or 112 fit on a standard pallet.
  • The Nano Station and Loco Radio mount, for easier installations
  • Easy access to the radios
  • ROHS compliant
  • Out performs any reflector on the market.
  • This dish can also utilize the Canopy claw Mount and Feedhorn antenna mounts

Specifications

Specifications UB24EWIFIDBI

WIND LOADING SPECS
Wind Speed Load On Antenna Load (Newtons)
60 Kmph 14.0 lbs 62.5 N
80 Kmph 25.0 lbs 111.0 N
100 Kmph 39.0 lbs 173.5 N
120 Kmph 56.2 lbs 249.8 N
140 Kmph 76.4 lbs 340.0 N
DIMENSION
Length24  in
Width21 in
Height9 in
Weight38 lbs

Electrical
Frequency Band 2GHz3GHz 5GHz
Reflector Gain 19±0.5 dBi21±0.5 dBi25±0.5 dBi
Polarization Slant or H/V Slant or H/V Slant or H/V
Horizontal HPBW 12 Degree9 Degree6 Degree
Vertical HPBW 15 Degree12 Degree9 Degree
Front to Back Ratio 22 dB 24 dB 25 dB

Mechanical
Electrical Grounding Reflector grounded to mounting bracket
Surface Finish UV resistant matt powder coat
Wind Load, frontal340N @ 140km/h | 76 lbf @ 87mph
Max. Wind Speed 160km/h | 100mph
Mounting TypeJ-Arm mount in kit
Reflector Dimensions
Length 584 mm | 23 in
Width 457 mm | 18 in
Height 635 mm | 25 in
Net Weight, with brackets 4 kg | 9 lb
