L-COM HyperLink Wireless 800/900MHz 6dBi Omnidirectional Antenna
- SKU: HGV-906U
Product Information
L-COM HGV-906U
HyperLink Wireless 800/900 MHz 6 dBi Omnidirectional Antenna

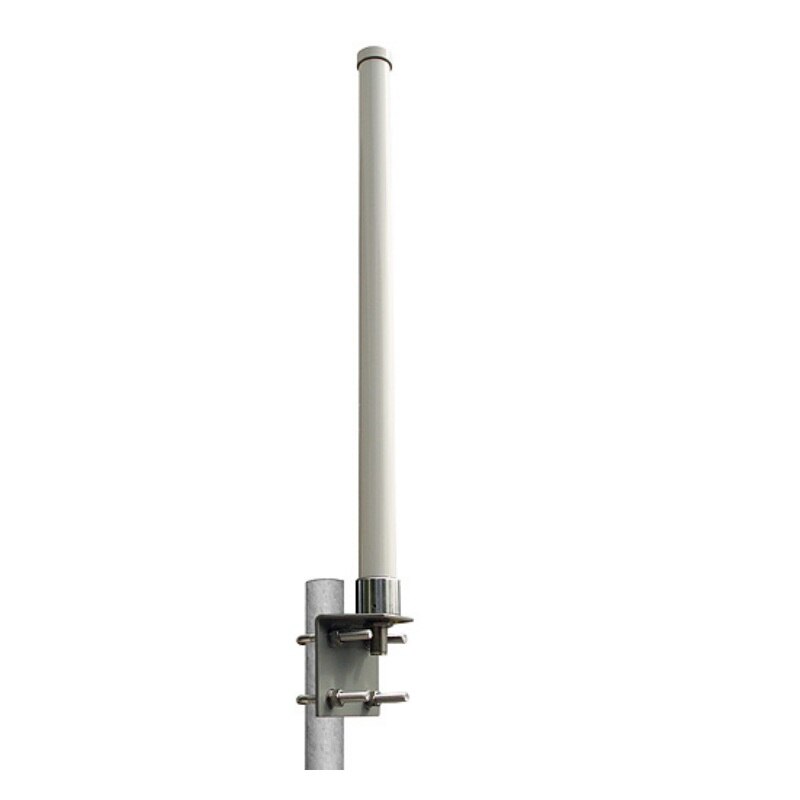

The HyperLink HGV-906U is a high performance omnidirectional antenna designed for the 800 MHz / 900 MHz ISM band. It is ideally suited for multipoint, Non Line of Sight (NLOS) and mobile applications where high gain and wide coverage is desired. Typical applications include 900 MHz Wireless LAN, SCADA, Wireless Video Links and 800 MHz as well as 900 MHz Cellular band applications.

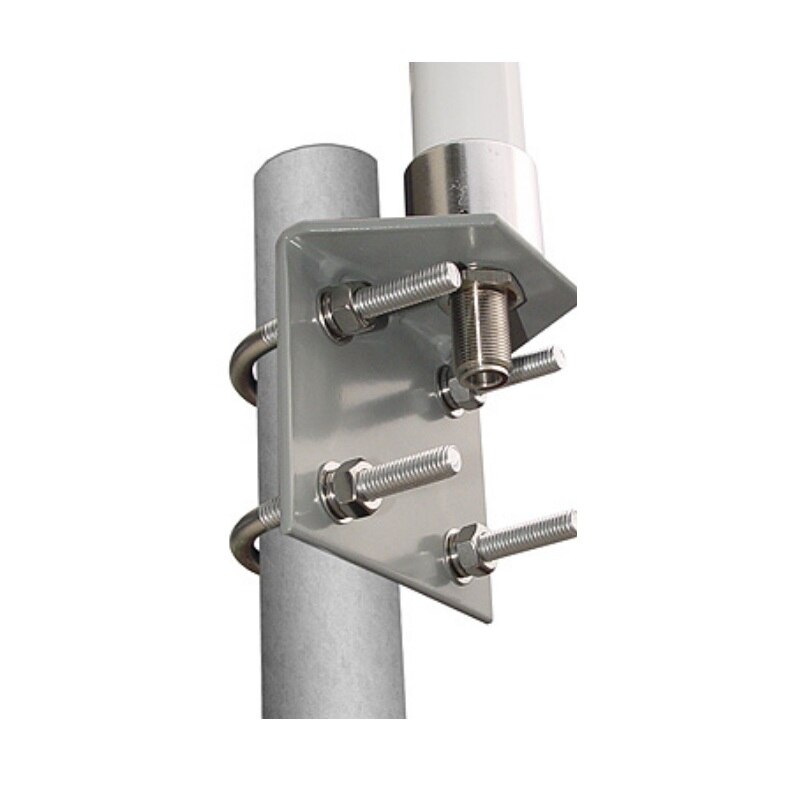

This antenna features an integral N-Female bulkhead type connector that mounts through the wall of an equipment enclosure. Included with the HGV-906U is a mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0" in diameter.
This omni antenna’s construction features a rugged 1.3" diameter white high intensity fiberglass radome for durability and aesthetics. It is designed for all weather operation.
Specifications
Specifications HGV-906U
Mechanical Specifications:
| Frequency Range | 824~960MHz |
| V.S.W.R | ≤1.5:1 avg. |
| Gain | 6dBi |
| Vertical Beam-with | 30° |
| Horizontal Beam-with | 360° |
| Impedance | 50Ohm |
| Return Loss | ≥-14db |
| Input Power | 50W |
Electrical Specifications:
| Connector | Integral N-Female |
| Length | 23.6 in. (600 mm) |
| Weight | 2.4 lbs. (1.1 Kg) |
| Diameter | 1.3 in. (33 mm) |
| Radome Material | White Fiberglass |
| Rated Wind Velocity | 108 MPH |
| Polarization | Vertical |
| Operating Themperature | -40° C to 85° C (-40° F to 185° F) |
| Mounting Mast Size | 1.2 to 2 in. dia. (31.7 to 50.8 mm dia.) |
| RoHS Compliant | Yes |
