L-Com 2.4 GHz 7 dBi Rubber Duck Antenna - N-Male Connector
US$22.87
Product Information
- Description
- Specifications

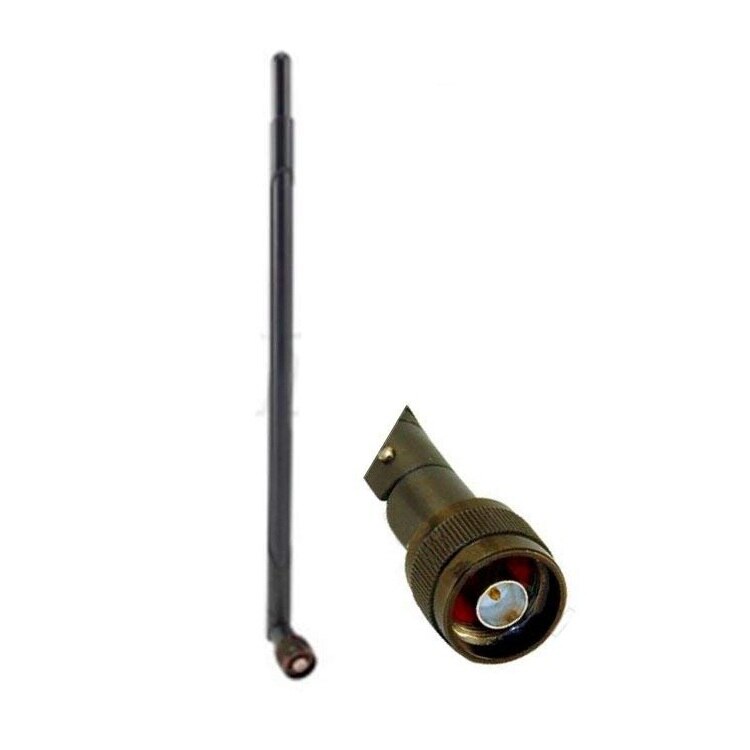

L-com HG2407RD-NM
2.4 GHz 7 dBi Rubber Duck Antenna - N-Male Connecto
This high performance 2.4 GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 7 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth and other WLAN applications.
Measuring 13.37" long, this flexible antenna features a tilt-and-swivel N-Male connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with N-Female connectors including EnGenius, smartBridges airPoint, Senao and others.
Features:
- High Performance - 7 dBi
- Better performance than most stock AP antennas
- Flexible "Rubber Duck" antenna with tilt and swivel design
- N-Male Connector
Applications:
- 2.4 GHz ISM Band
- IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
- Public Wireless Hotspot
- Wireless Video Systems
- Multipoint and Mobile Applications & Bluetooth
Specifications HG2407RD-NM
| Frequency | 2400-2500 MHz |
| Gain | 7 dBi |
| Impedance | 50 Ohm |
| Max. Power | 50W |
| VSWR | < 2.0 |
| Weight | 1.7 oz. (50 g) (0.11 lbs) |
| Length | 11.06" (281 mm) |
| Max. Diameter | 0.51" (12.9 mm) |
| Finish | Matte Black |
| Connector | N-Male |
| Operating Temperature | -40° C to 60° C (-40° F to 140° F) |
| Polarization | Vertical |
| ROHS Compliant | Yes |
