L-Com 2.4/ 5 GHz 11 dBi Dual Band / Polarized 2x2 MIMO Omni Antenna
Product Information
L-Com HG2458-11DPU2
2.4/ 5 GHz 11 dBi Dual Band / Polarized 2x2 MIMO Omni Antenna

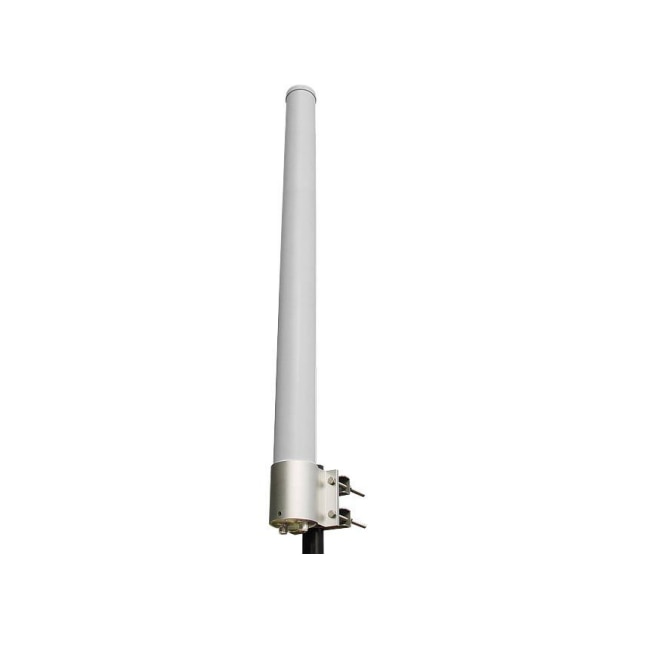

The HyperLink HG2458-11DPU2 is a professional high gain dual band/dual polarity omnidirectional base station antenna designed and optimized for 2.4 and 5 GHz frequencies. This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.
Dual Frequency / Dual Polarized

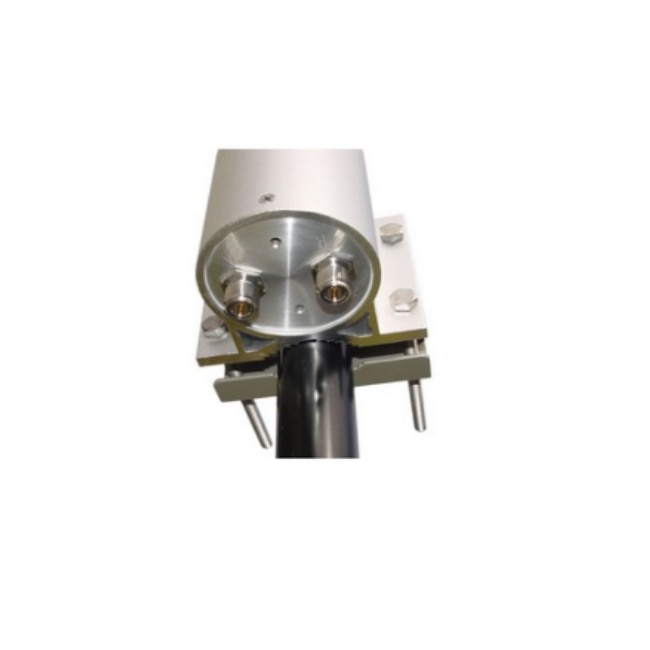

The HG2458-11DPU2 is actually two antennas in one, a 2.4/5 GHz horizontal polarized antenna and a 2.4/5 GHz vertical polarized antenna together in a single radome. Each polarization features separate dual band feeds, two N-Female connectors in total.
This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radio transmit and receive paths. This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.
Rugged and Weatherproof

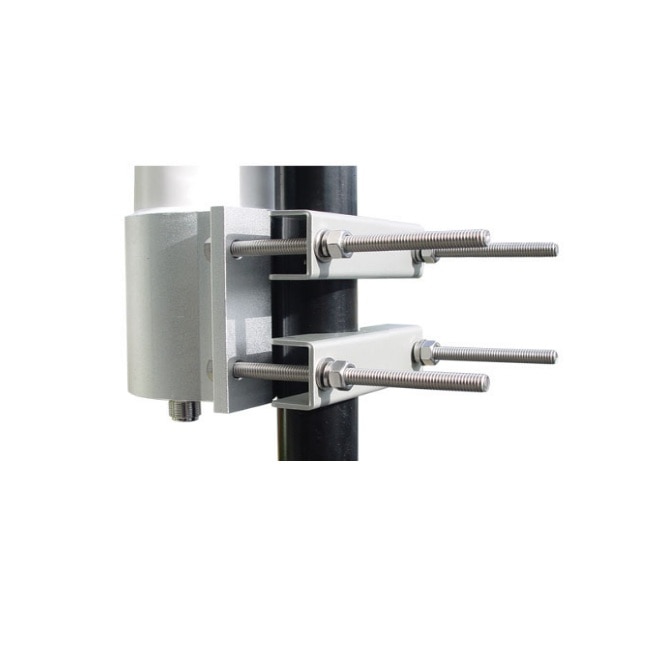

The HG2458-11DPU2 construction features a heavy-duty UV resistant PVCs radome for durability and aesthetics. Designed to operate in the harshest of environments, the HG2458-11DPU2 far exceeds other omnidirectional antennas. The included mounting system features twin heavy-duty mounting clamps and bolts for superior strength.
Features:
- UV-Resistant radome for all-weather operation
- Dual polarity/dual frequency feed system in single enclosure
- Heavy duty industrial grade design
- MIMO - Multiple-Input and Multiple-Output
- Separate inputs horizontal and vertical polarization
Application:
- 2.4/5 GHz IEEE 802.11a/b/g and 802.11ac applications
- Point-to-multipoint applications
- Supports 1x2 and 2x2 MIMO AP/Routers
- Wireless video systems
- WiMax, WISP and WiFi applications
Specifications
Specifications HG2458-11DPU2
| Connector | 2 (N-Female) |
| Weight | 7.7 lbs |
| Length | 49.2 in (1250 mm) |
| Radome Diameter | 2.9 in (75 mm) |
| Radome Material | UV Resistant PVC |
| Mounting Mast Size Diameter | 1.6 to 3.5 in (40 to 90 mm) |
| Operating Temperature | -40 °C and 60 °C (40°F and 140 °F) |
| Max. Wind Velocity | 130 mph (210 km/h) |
| RoHS Compliant | Yes |
| Frequency Range | 5100-5800 MHz |
| Polarization | Vertical (CON 1)/ Horizontal (CON 2) 11 dBi |
| Gain | 11 dBi |
| Vertical Beam Width (-3 dB) | 6.5° |
| Horizontal Beam Width | 360° |
| Impedance | 50 Ohm |
| Max. Input Power | 100 Watts |
| VSWR | ≤1.9 |
| Isolation | >28 dB |
| Lightning Protection | DC Ground |
