L-Com 2.4/5 GHz 7dBi Dual Band Rigid Rubberduck Antenna - N-Male Connector
- SKU: HG2458-7RDR-NM
Product Information
L-Com HG2458-7RDR-NM

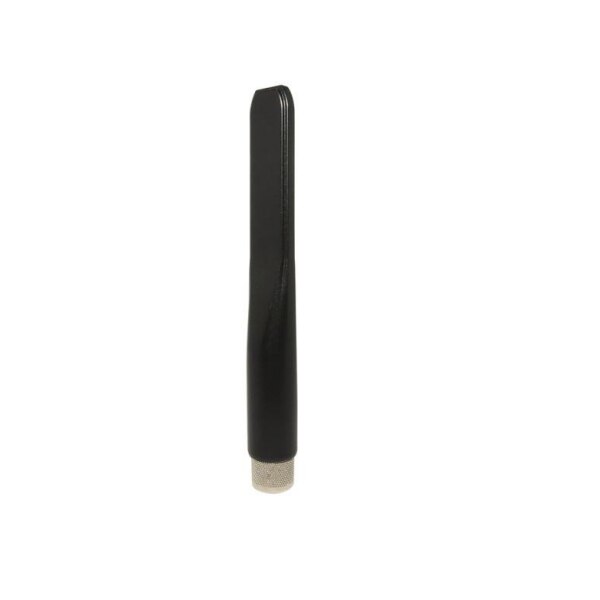

2.4/5 GHz 7dBi Dual Band Rigid Rubberduck Antenna - N-Male Connector
The HyperLink HG2458-7RDR-NM is a high performance Dual Band rubber-duck antenna designed to operate in 2.4 GHz to 2.5 GHz or 5.1 GHz to 5.9 GHz bands. The Dual Band design of this antenna eliminates the need to purchase different antennas for each frequency.
Measuring 7.07" long, this antenna features rugged composite blade style radome, Rigid N-Male connector and is ideal for use outdoors with n type 2.4/5.8GHz devices. Optional magnetic mount is available for indoor use as well.
Features:
- 4.5 dBi @ 2.4 GHz / 7 dBi @ 5.8 GHz
- Compact size
- Dual band design

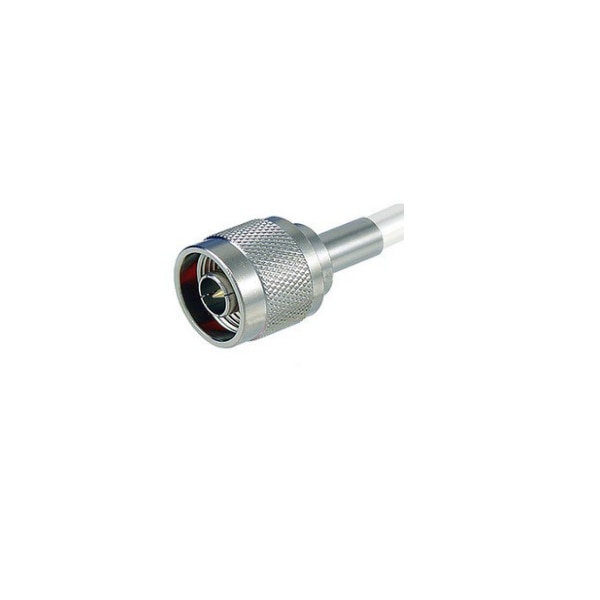

- Rigid Type N-Male connector
- Rugged composite radome
Application:
- 5.8 GHz ISM/UNII/ WiMAX Applications
- Radio Local Area Networks
- 2.4 / 5.8 GHz Wireless Video Systems
- 2.4 GHz ISM Applications
- IEEE 802.11a/b/g/n and 802.11ac access points and routers
Specifications
Specifications HG2458-7RDR-NM
| Weight | 1.23 lbs |
| Size | 7.07 x 0.89 in (123 x 23 mm) |
| Radome Material | ABS |
| Connector | Type N-Male |
| Frequency Range/Gain | 2400-2500 MHz / 4.5 dBi 5150-5850 MHz / 7 dBi |
| Impedance | 50 Ohm |
| VSWR | < 2.0 |
| Electrical Wave | 1/4 |
