L-Com 4.9GHz-5.8GHz Dual Polarized 25dBi Dish Antenna
- SKU: HG4958DP-25D
- Manufacturer: L-Com
- Data Sheet: Download
Product Information

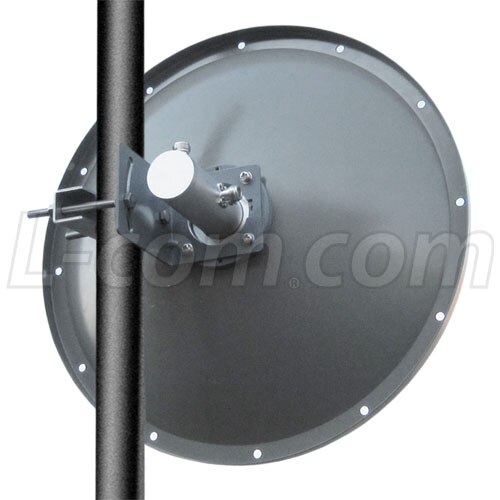

L-Com HG4958DP-25D 4.9-5.8 GHz Dual Polarized 25dBi Dish Antenna
The HyperLink model HG4958DP-25D is a high performance broadband dual polarized solid dish antenna. Because of its' superb electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of high performance 4.9 GHz and 5 GHz range (5.1/5.3/5.4/5.8 GHz) wireless applications. The wide band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications. This antenna features 25 dBi of gain with a 7° horizontal beam-width and vertical beam-width.
Dual Polarization
The HG4858DP-25D features a dual polarity feed system. It is fed via two N-Female ports, one for vertically polarized and one for horizontally polarized signals. This feature makes it ideal for MIMO/802.11n and polarization diversity systems.
Rugged and Weatherproof
The reflector dish of the HG4958DP-25D is constructed from high quality aluminum which gives it superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. The small diameter of the dish helps minimize wind loading.The HG4958DP-25D is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 30°.
Applications:
- 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications
- 4.9 GHz Public Safety Band
- MIMO and 802.11 n Applications
- WiMAX Applications
- Long Distance Backhaul and Point to Point Data Links
