Laird Technologies Tri-Band Omni Antenna
- SKU: IN800/5900-5
$27.48
- Manufacturer: Laird Technologies
- Data Sheet: Download
Product Information
Laird Technologies IN800/2500-5

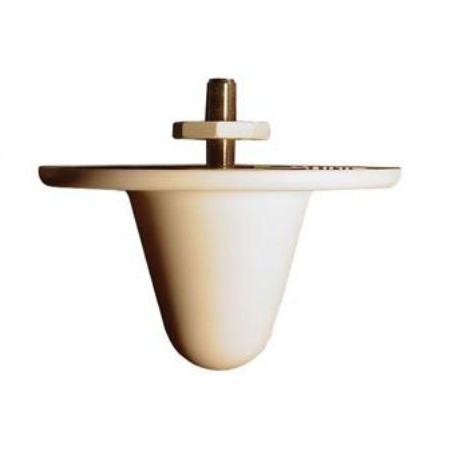

IN800/5900-5 Laird Tri Band Omni Antenna
IN800/5900-5 TriBand Inwave Series Ceiling Mount Indoor Omni - 800MHz @ 2.2dBi; 2483MHz @ 5dBi; 5850 @ 3.5dBi
The multi-band InWave Series of indoor omnidirectional antenna systems offered by Laird Technologies are designed for in-building transmission of cellular telephone and wireless LAN signals. Because of the multi-band design, a single antenna can be used to service the building occupant’s total wireless needs. The antennas are constructed of UL94-V0 white ABS plastic. The low profile attractive styling blends well in almost any office or home environment. Mounting is simplified with a single hole mount design to easily mount to drop ceilings or fixed ceilings. The antenna comes with a bulkhead N Female connector standard which is long enough to mount thru a max 1” thick ceiling.Features and Benefits:
- High gain omnidirectional indoor antenna
- Operates simultaneously on Cell, GSM, PCS, Wimax and ISM
- Attractive housing ; UL listed materials
- Surface mount in drop ceiling or solid ceiling
- Vertical polarization
- Type N female connector
Specifications
Specifications IN800/2500-5
| Frequency Range | 806-5850 MHz |
| Gain | 800MHz @ 2.2dBi; 2483MHz @ 5dBi; 5850 @ 3.5dBi |
| VSWR | 1.5:1 |
| Impedance | 50 Ω Ohm |
| Input Power | 50 W |
| Operating Temperature | -10 (14ºF)min, Deg C, +70 (+158ºF) max Deg C |
| Mounting Hole Size | 5/8 (16) In (mm) |
| Weight | 13 (369) Oz (gm) |
| Dimension (Dia x Height) | 7.25 x 4.25 (184 x 108) In (mm) |
| Radome Material | ABS |
